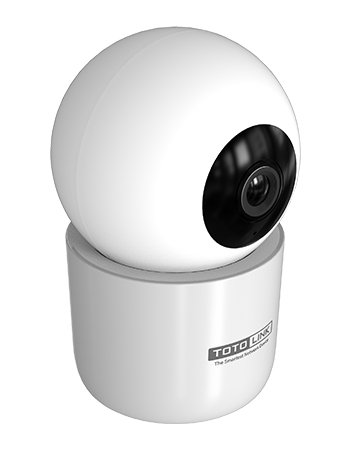

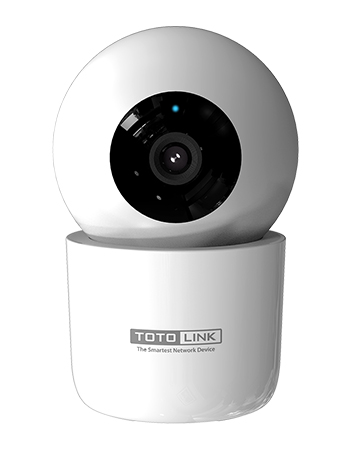

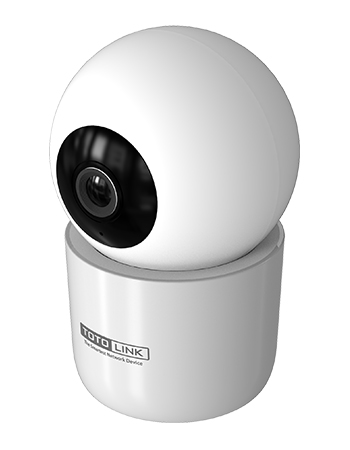

C2

Smart Camera

  • - 360° Super large pan-tilt view.

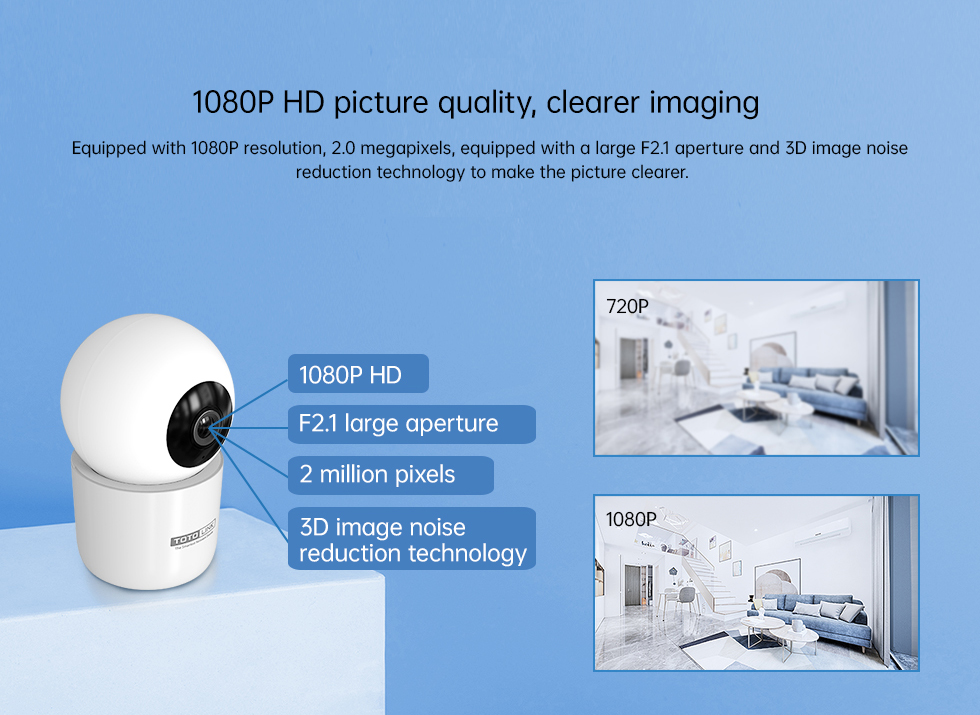

    - 1080P HD picture quality, clearer imaging.
    - Full Color in Low-light , Enhanced infrared night vision.

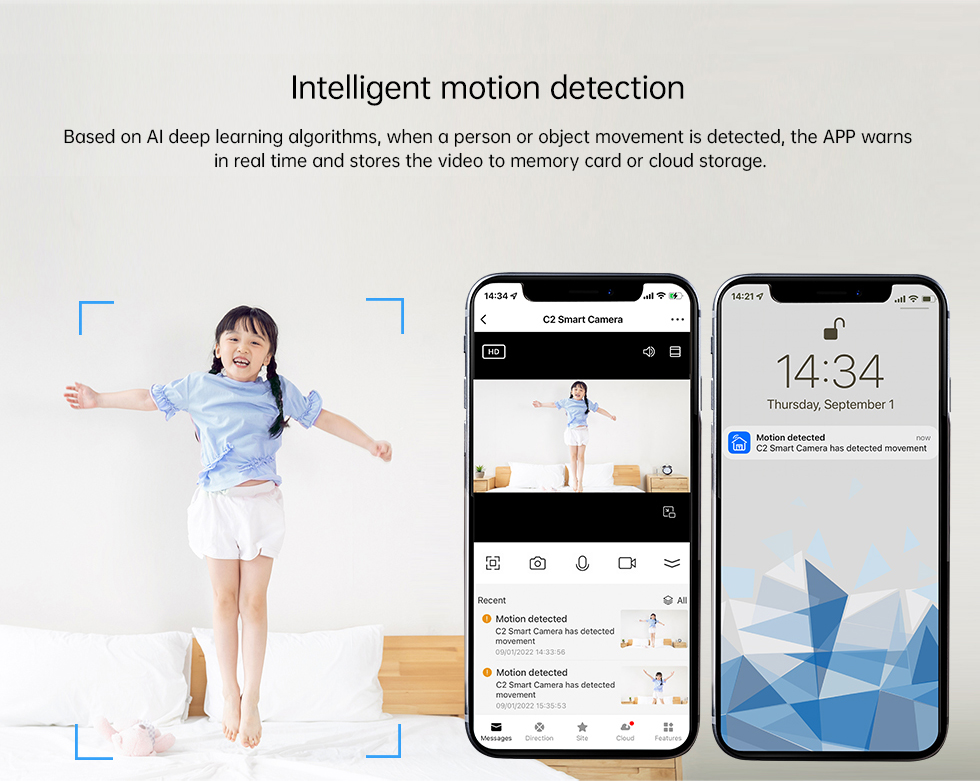

    - Intelligent motion detection.
    - Two-way voice calls.
    - New H.265 video encoding technology.
    - Multiple mounting options.
    - Two Storage Options.
  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs
    • - 1080P Full HD, crystal clear lens, high-quality imaging experience.

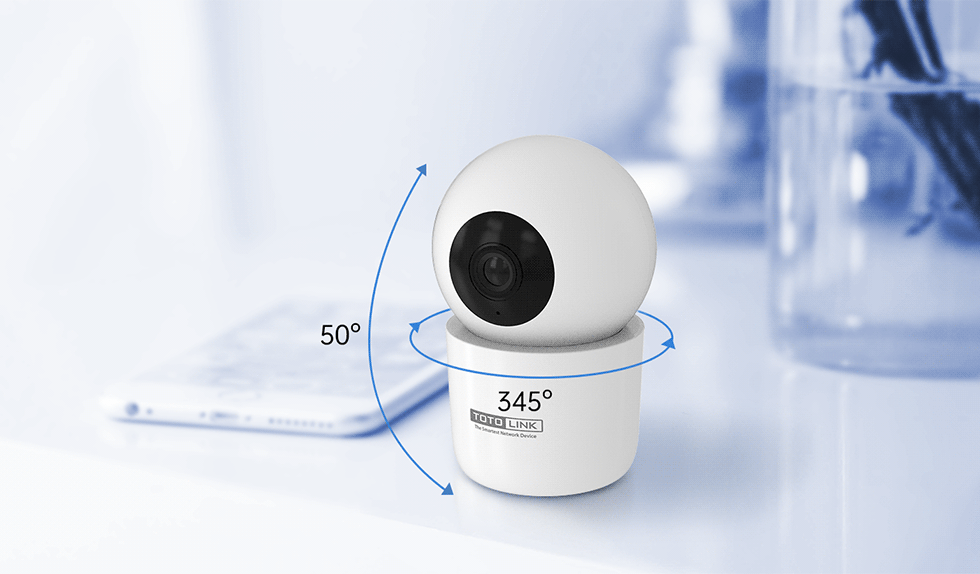

    - Pan 0- 345°，Tilt -10°~40°.
    - 10m enhanced infrared night vision, clear day and night.
    - Support motion detection, real-time alarm pushes via APP.
    - Automatically track and capture their movements, recording the invasion.
    - Support bidirectional voice intercom at anytime and anywhere.
    - View multiple cameras on the same screen, having a panoramic view.

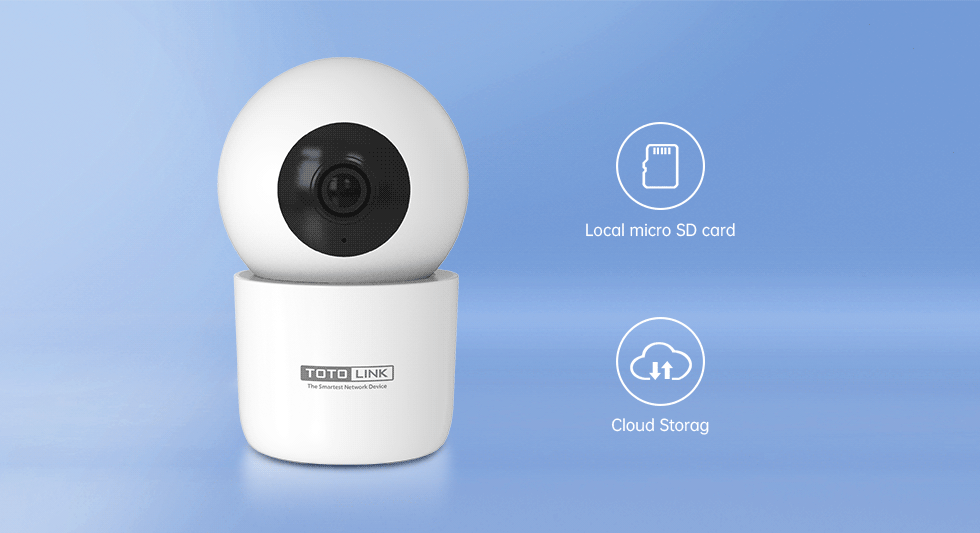

    - TF card enables recording without network, cloud storage is more secure.

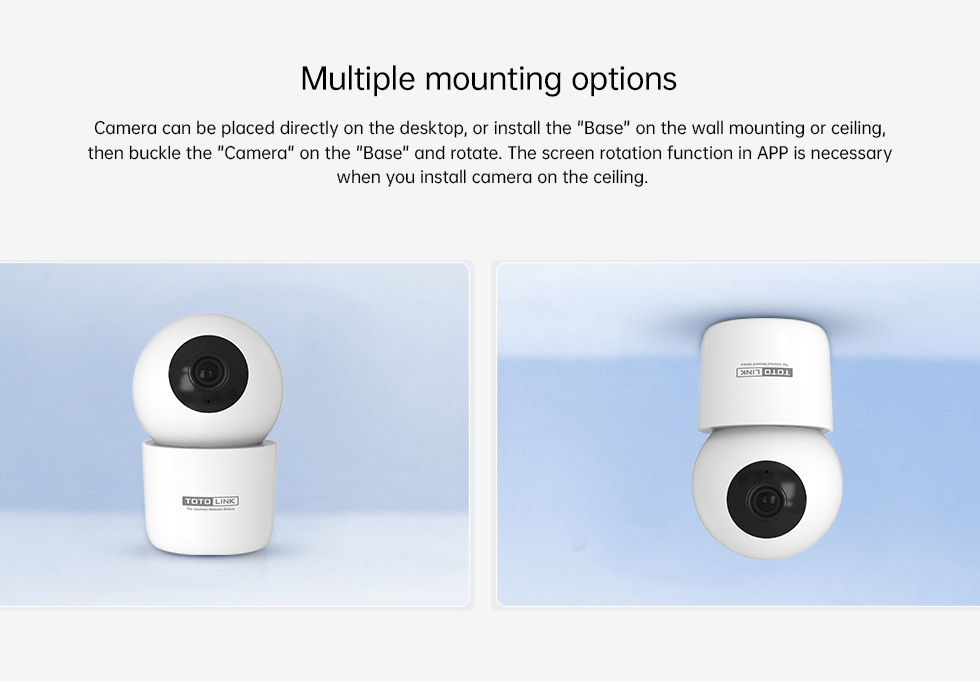

    - Ceiling / Wall hanging / Placing, installation in various environments.
    Specifications
    Product model
    - C2
    Image Sensor
    - 1/3 inch CMOS
    Maximum Pixels
    - 1080P (1920×1080)
    IR LED
    - Ring lamp, infrared distance up to 10 meters, support automatic/manual
    Night vision
    - IR-CUT auto switch
    Denoise
    - 3D denoise
    Focal length
    		 - 4mm
    FOV
    		 - horizonal 78°，vertical 43°，diagonal 93°
    PTZ Control
    - Pan：0°～345°，Tilt：-10°～40°
    Aperture
    		 - Fixed，F2.1
    Image Compression
    		 - H.265/H.264/MJPEG
    Video bitrate
    		 - Main Stream：1.0Mbps；Sub Stream：512Kbps
    Image Frame Rate
    		 - Main Stream：1080P@20fps；Sub Stream：640*360@20fps
    Audio input/output
    		 - Mic, Speaker
    Two-way audio
    - Support
    Multi-channel preview
    		 - Maximum support 2 channels P2P，synchronized viewing at multiple terminals
    Detection
    		 - Support motion detection, human-shape detection, sound detection, Siren alarm
    SD Card Storage
    		 - Support continuous recoding & event recording，up to128G
    General Features
    		 - Support customize volume, simple cruising, 2x playback, cloud storage, privacy mode
    Button and Interface

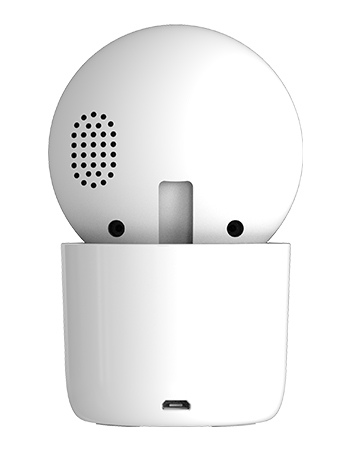

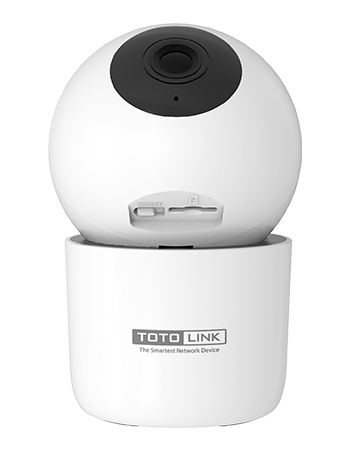

    		 - RST button *1, SD card slot *1, Micro USB *1
    Wi-Fi connection
    		 - Wi-Fi IEEE 802.11 b/g/n 2.4GHz
    Wi-Fi security
    - 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
    Input
    -  Micro USB，5V 1A
    Operating temperature
    - -10℃ ~ +50℃
    Operating humidity
    - ≤95%
    Package Contents
    - Smart Camera, USB Cable, Power adapter, Mounting Bracket, Screw bag, Quick Installation Guide
