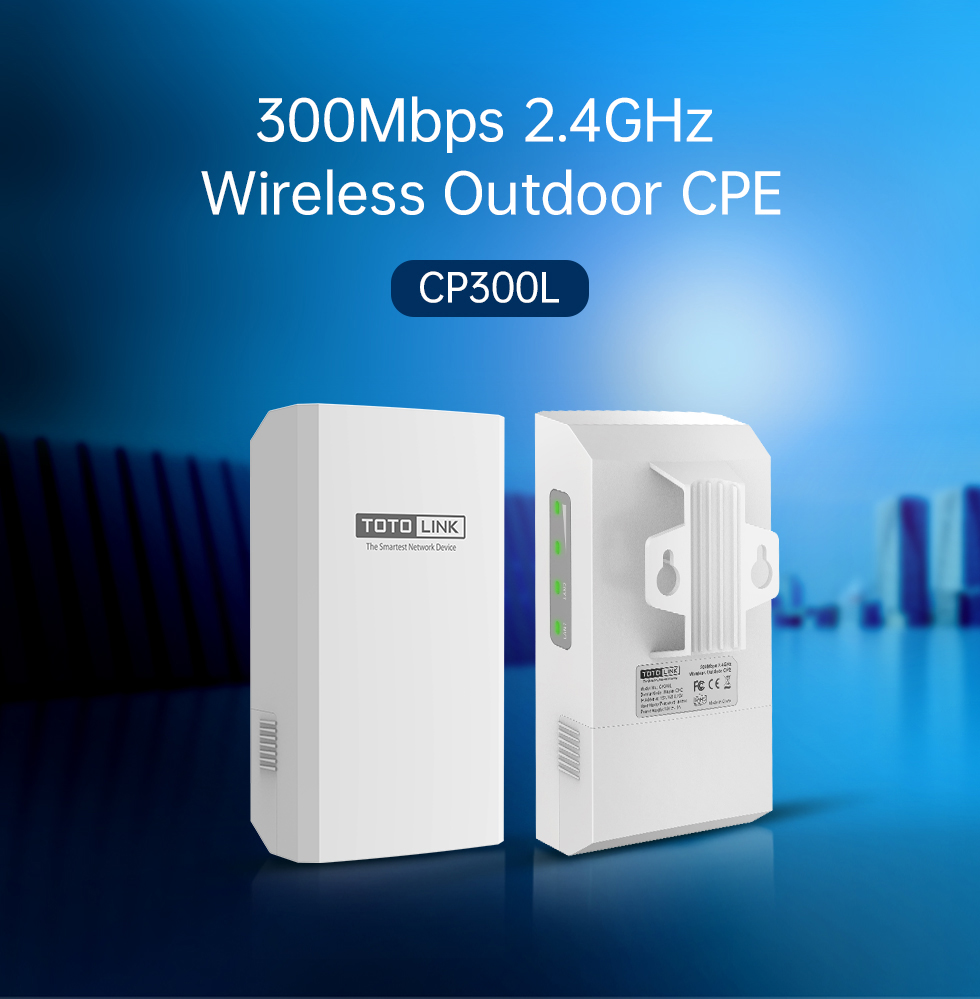

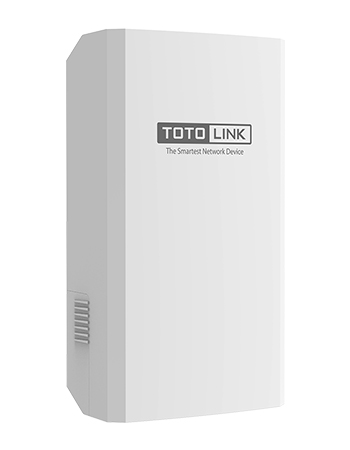

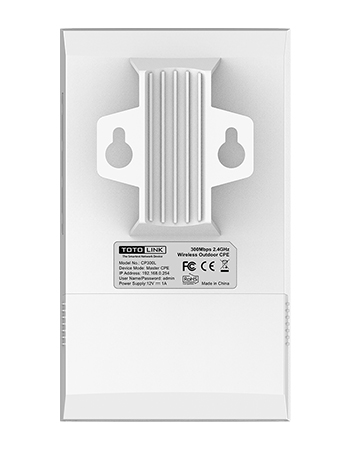

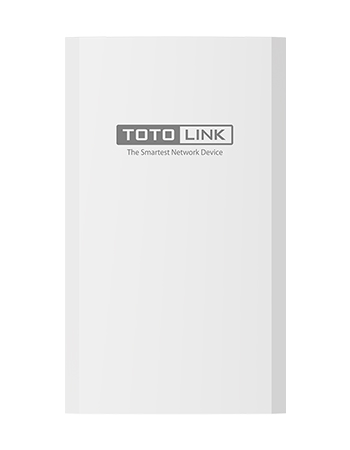

CP300L

300Mbps 2.4GHz Wireless Outdoor CPE

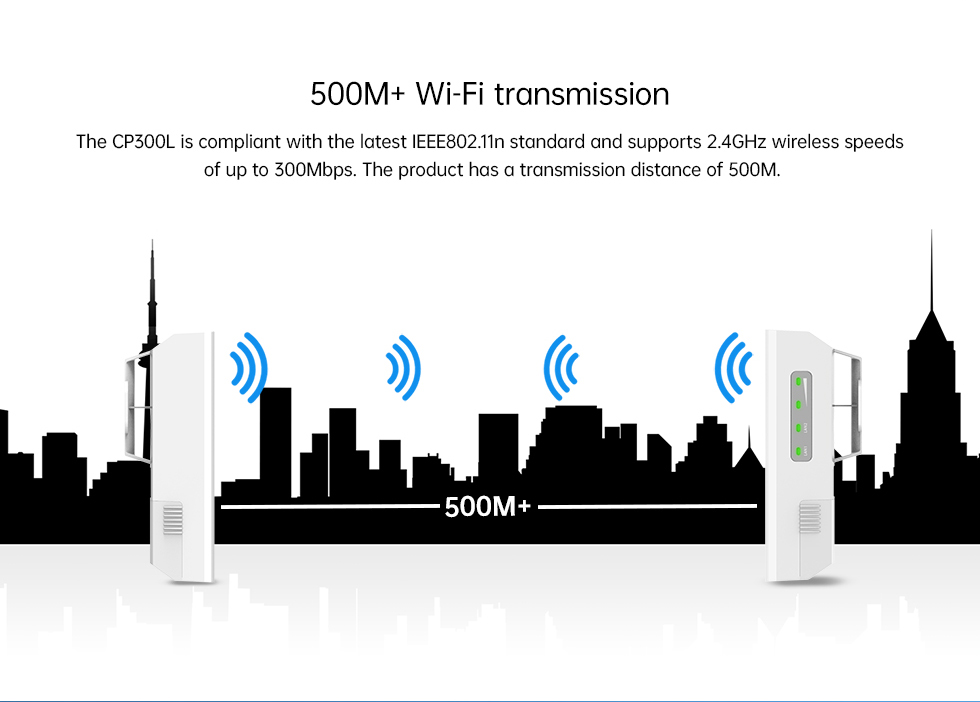

  • - 500M+ Wi-Fi transmission
    - Built-in 1GHz CPU, High Wi-Fi Transmission Performance
    - High Gain Antenna
    - Professional case protection design
    - Support auto-pairing


  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs
    • - Compliant with the latest IEEE11n standard, providing up to 300Mbps of 2.4G wireless speed.

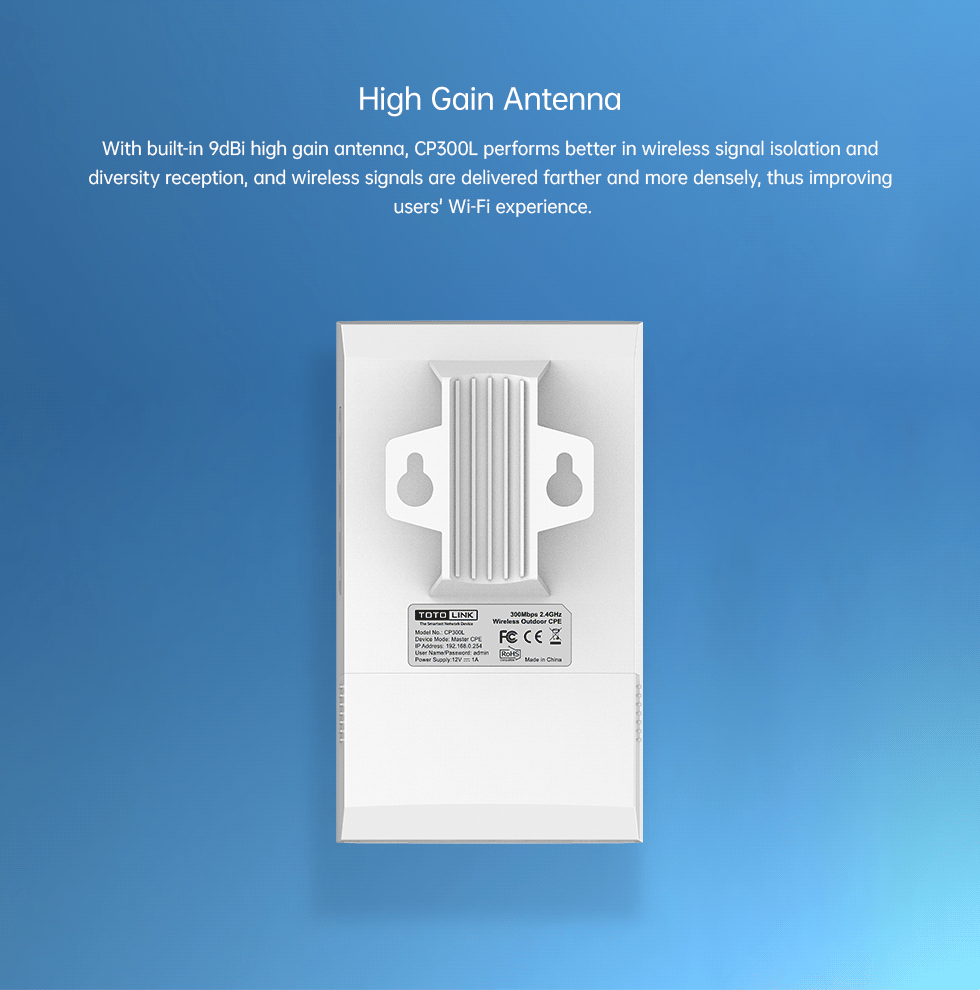

    - Built-in 9dBi high gain antenna for stronger wireless signal transmission.

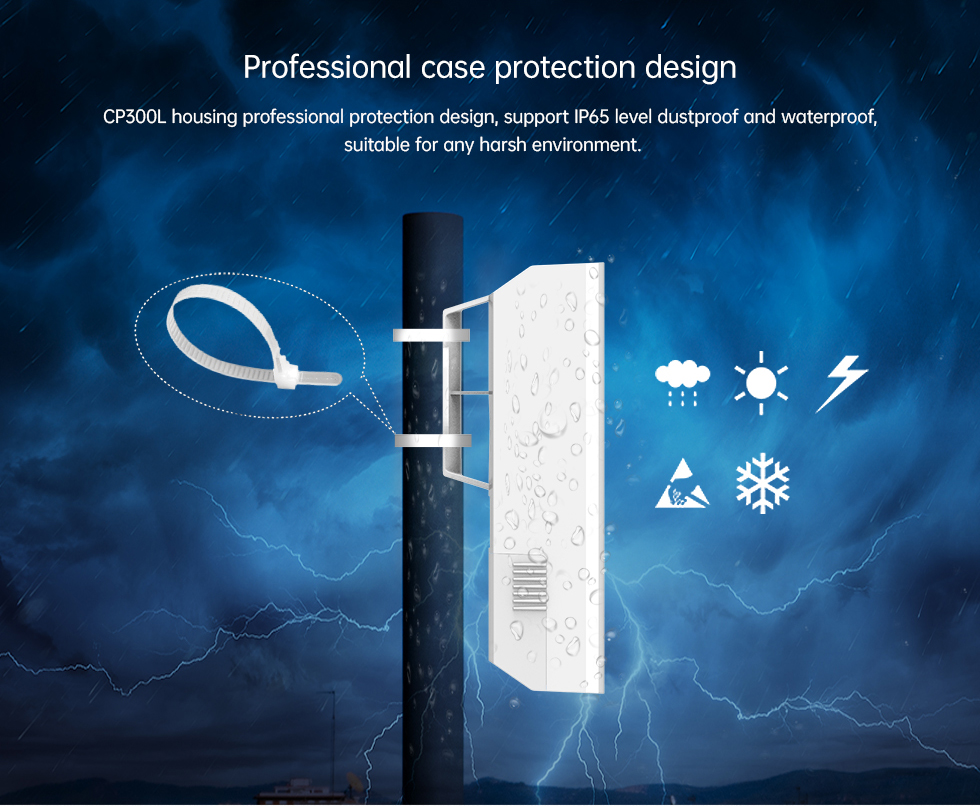

    - Professional case protection design, suitable for various harsh environments.
    - IP65 level dustproof and waterproof.
    - Support automatic pairing after power on.
    - Support passive PoE power supply, transmission distance up to 30 meters, more flexible wiring deployment.
    - Support DC power supply, no need for additional PoE devices, reducing installation costs.

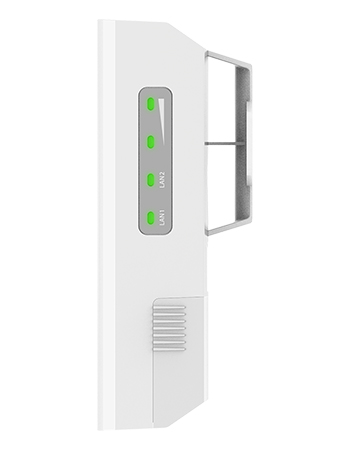

    - 2 intelligent LED indicators visually display signal strength.
    - Supports multiple operating modes.

    Hardware

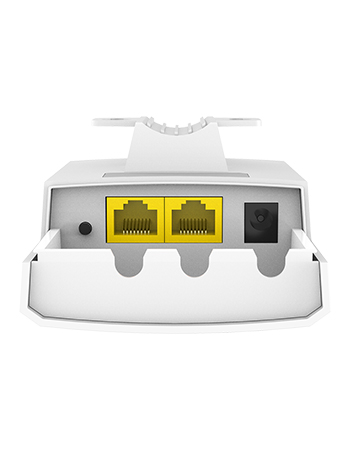

    Interface
    - 1 *10/100Mbps port  (LAN1, Passive PoE in)
    - 1 *10/100Mbps port  (LAN2, Passive PoE in)
    - 1*DC power port
    Power Supply
    - 12V passive PoE / 12V DC/2A
    -  Voltage Range：12V DC
    Button
    - 1 *RESET Button
    Antenna
    - 2 *Internal 9dB antennas
    LED Indicator
    - 1 *LAN1, 1 *LAN2, 2 *signal strength
    Dimensions
    - 130*76*48.5MM
    Wireless
    Wireless standard
    - IEEE 802.11n
    - IEEE 802.11g
    -  IEEE 802.11b
    Frequency range
    - 2.4~2.4835GHz
    Wireless speed rate
    - Up to 300Mbps
    Transmitting power
    		 - < 23dBm
    Wireless Security  - 64/128-bit WEP, WPA/WPA2/WPA-PSK/WPA2-PSK
    Receive sensitivity
    - 11b 11M: -81 dBm@10% PER
    - 11g 54M: -68 dBm@10% PER
    - 11n HT20 MCS7: -65 dBm@10% PER
    - 11n HT40 MCS7: -62 dBm@10% PER
    Software
    Operation Mode
     - AP Mode
    -  Repeater Mode
     - Client Mode
     - WISP Mode
    Network

    - LAN Setting
    - WAN Setup (WISP Mode only)
    Wireless
    -  Basic Setting, MAC Authentication, Advanced Setting, Multiple SSIDs
    MIMO
    - 2.4G 2Tx-2Rx
    Management
     - Administrator Setting, Time Setting, Upgrade Firmware, System Configuration, System Log, Reboot Schedule, Logout
    Security
    -  IP65 level dustproof and waterproof
    Others
    Package Contents
    - CP300L wireless outdoor CPE *1
    - Power adaptor *1
    - Quick installation guide *1
    - Ethernet Cable *1
    - stripes*2
    Environment
    - Operating temperature: -30℃~55℃(-22 ℉~131℉)
    - Storage temperature: -40℃~70 ℃ (-40 ℉~158℉)
    - Operating humidity: 10%~90% No condensation
    - Storage humidity: 5%~90% No condensation
