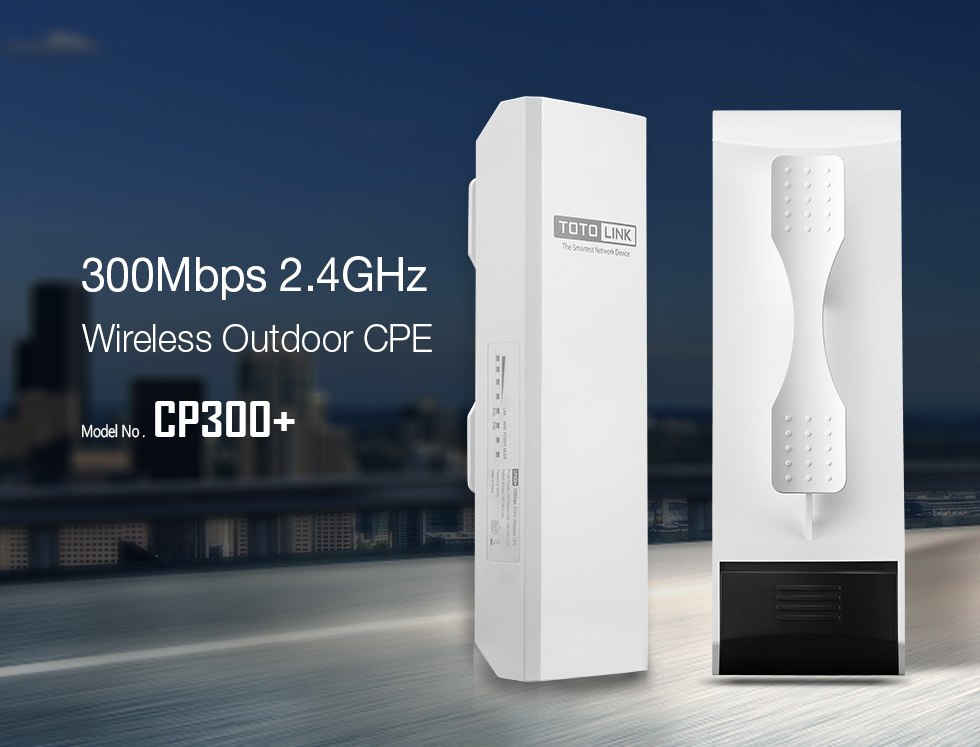

CP300+

2.4GHz 300Mbps Wireless Outdoor CPE

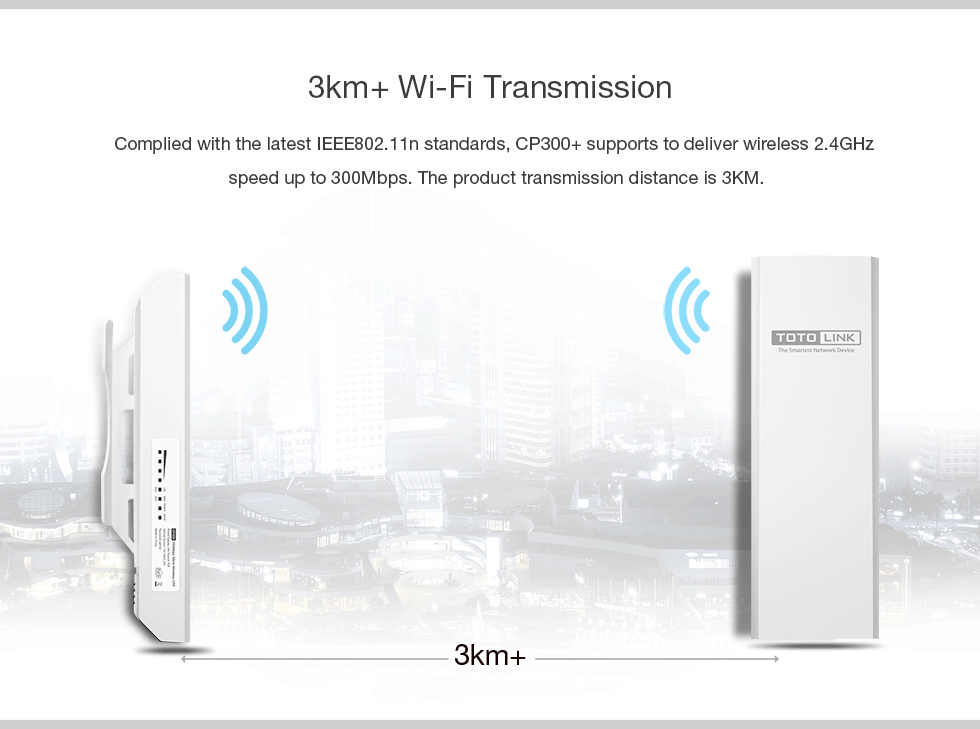

  • - 3km+ Wi-Fi Transmission
    - High-gain Polarized Antennas
    - Support Automatically Pairing (Double packed version)
    - Professional Protection Design on Shell
    - Flexible Power Supply by Passive PoE


  • - Complied with the latest IEEE11n standards, delivering 2.4G wireless speed up to 300Mbps.

    - Built-in 12dBi high-gain polarized antennas, transmits wireless signal further and stronger.

    - professional protection design on shell, suitable for any kinds of severe environment.

    - IP65 level dust-proof and water-proof, 4KV lighting-proof and 15KV ESD static electricity-proof.

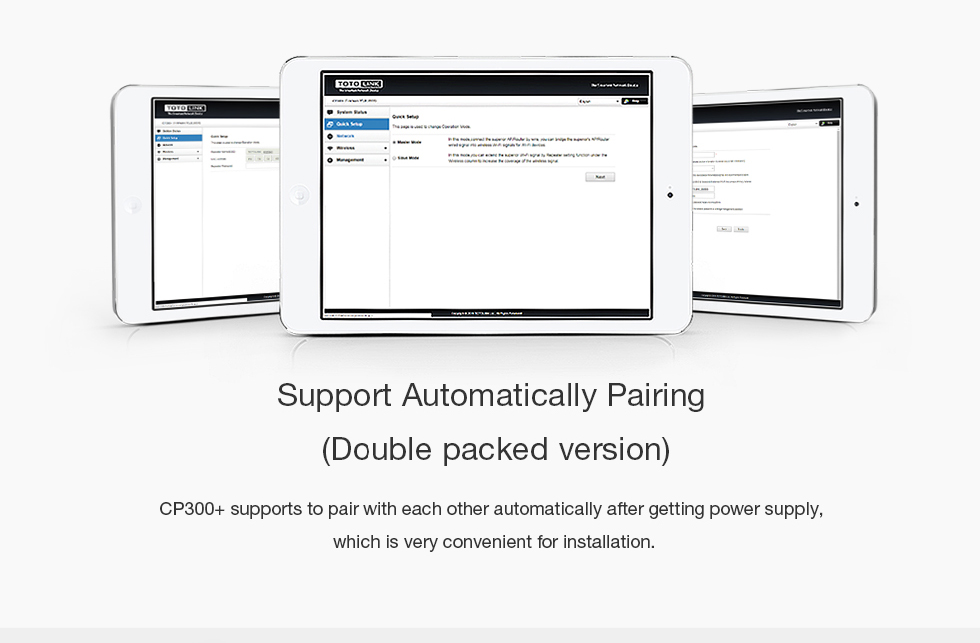

    - Supports automatically pairing after getting power supply.

    - Supports Passive PoE power supply, transmitting distance can be far as 60 meters, more flexible for cabling deployment.

    - Supports DC power supply, requiring no additional PoE equipment and reducing the installation cost.

    - 4 intelligent LED indicators intuitively show signal strength.

    - Provides AP/Client/Repeater/WISP working modes.


    Hardware

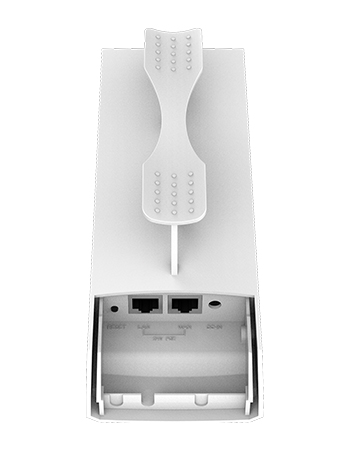

    Interface
    - 1 *10/100Mbps Port (WAN/LAN, Passive PoE in)
    - 1 *10/100Mbps Port (LAN, Passive PoE in)
    - 1*Power Port
    Power Supply
    - 24V Passive PoE / 12VDC/2A
    - Voltage range: 12-24VDC
    Button
    - 1 *RESET Button

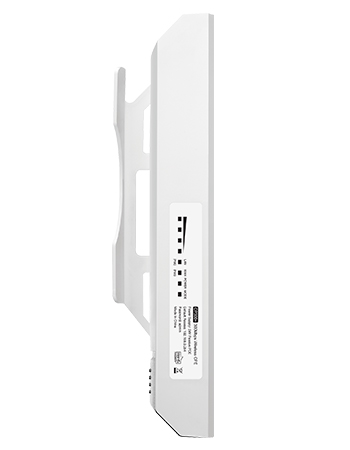

    LED Indicator
    - 1 *MODE, 1 *Power, 1 *WAN/LAN, 1 *LAN, 4 *Signal Strength

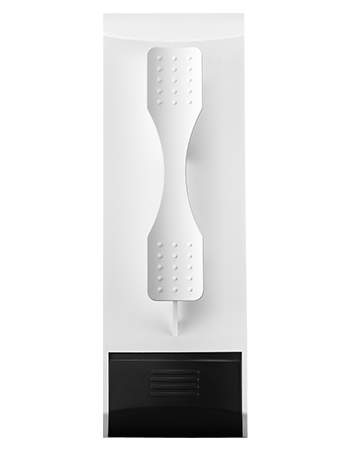

    Antenna
    - 2*Built-in 12dBi dual polarized antennas
    Dimensions (D x H)
    - 237.5 x 79 x 58.5mm
    Wireless
    Wireless standard
    - IEEE 802.11n
    - IEEE 802.11g
    - IEEE 802.11b
    RF Frequency  - 2.4~2.4835GHz
    Data Rate  - Up to 300Mbps
    EIRP  - < 23dBm
    Wireless Security  - 64/128-bit WEP, WPA/WPA2/WPA-PSK/WPA2-PSK
    Reception Sensitivity
    - 11b 11M: -81 dBm@10% PER
    - 11g 54M: -68 dBm@10% PER
    - 11n HT20 MCS7: -65 dBm@10% PER
    - 11n HT40 MCS7: -62 dBm@10% PER
    Software
    Operation Mode
    - AP Mode
    - Repeater Mode
    - Client Mode
    - WISP Mode
    MIMO Type
    - 2.4G 2Tx-2Rx
    Management
    - Save/Reset Settings, Firmware upgrade, System Log
    Reliability
    - 4KV Lightning Protection
    - 15KV ESD Protection
    - IP65 level dustproof and waterproof
    Others
    Package Contents
    - CP300+ Wireless CPE *1
    - Power Adapter *1
    - User Guide *1
    - Ethernet Cable *1
    - Strips*2
    Environment
    - Operating Temperature: -40℃~70 ℃ ( -40℉~158℉)
    - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
    - Operating Humidity: 5%~95% non-condensing
    - Storage Humidity: 5%~95% non-condensing
