- Complied with the latest IEEE11ac standards, delivering 5G wireless speed up to 450Mbps.

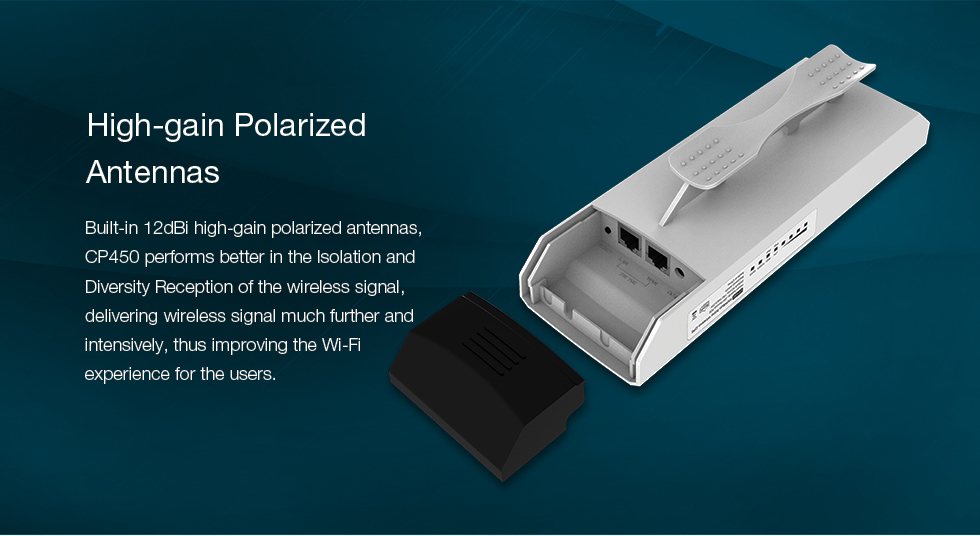

- Built-in 12dBi high-gain polarized antennas, transmits wireless signal further and stronger.

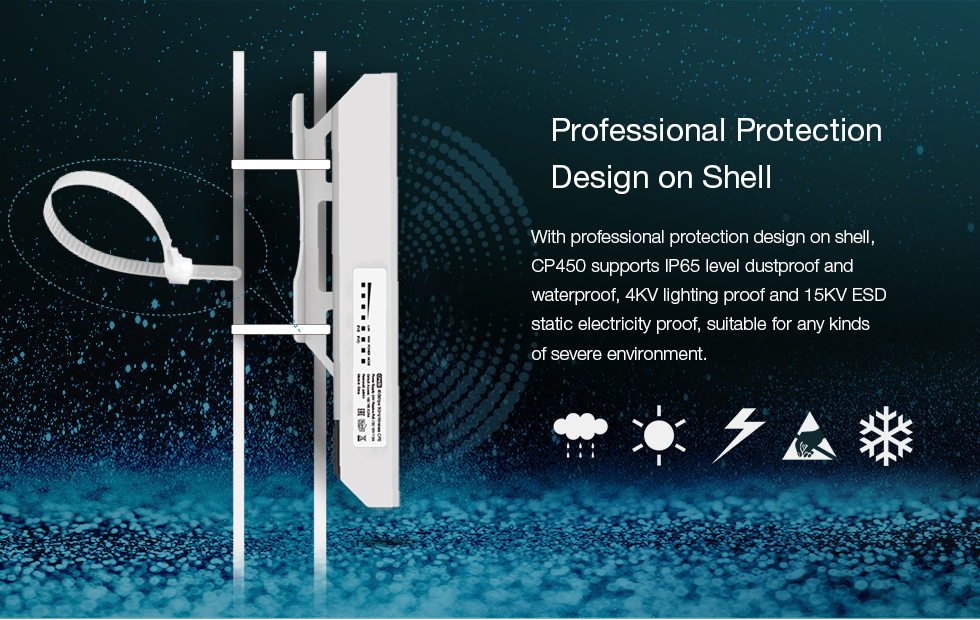

- professional protection design on shell, suitable for any kinds of severe environment.
- IP65 level dust-proof and water-proof, 4KV lighting-proof and 15KV ESD static electricity-proof.

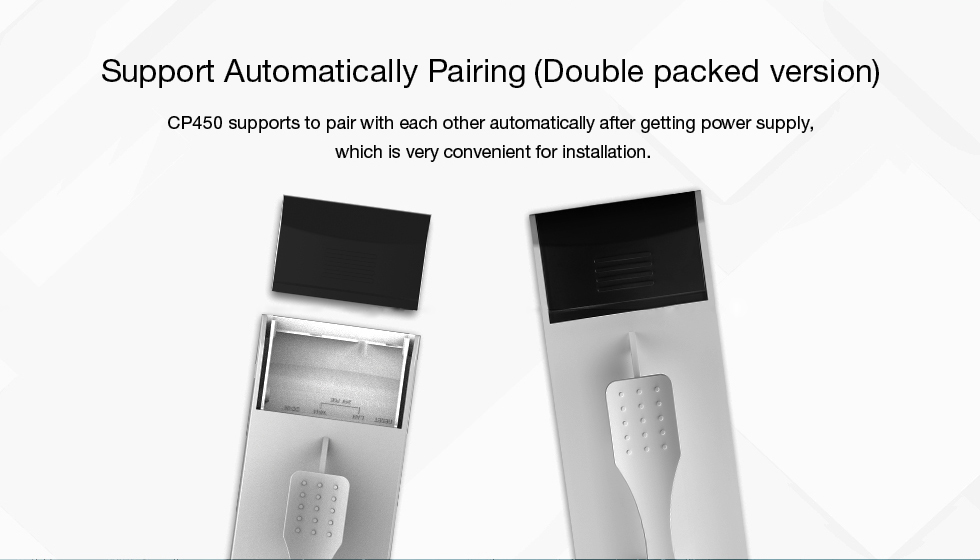

- Supports automatically pairing after getting power supply.

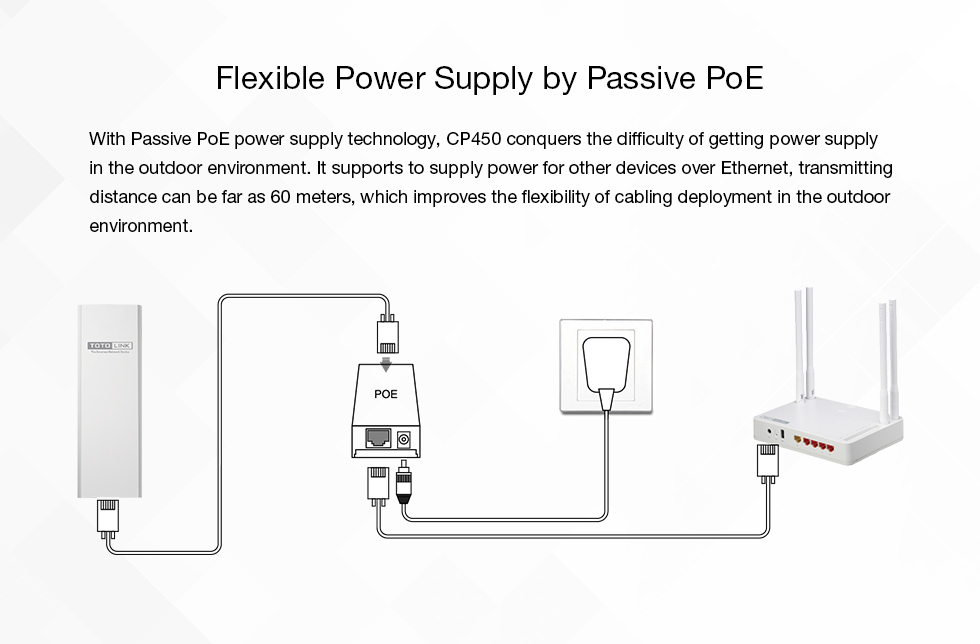

- Supports Passive PoE power supply, transmitting distance can be far as 60 meters, more flexible for cabling deployment.
- Supports DC power supply, requiring no additional PoE equipment and reducing the installation cost.
- 4 intelligent LED indicators intuitively show signal strength.
- Provides AP/Client/Repeater/WISP working modes.
| HARDWARE FEATURES | |
|---|---|

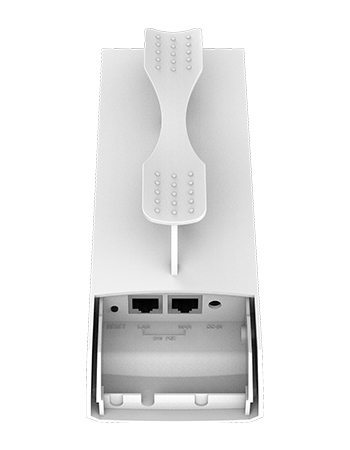

| Interface |
1 *10/100Mbps Port (WAN/LAN, Passive PoE in)
1 *10/100Mbps Port (LAN, Passive PoE in)
- 1*Power Port
|
| Power Supply |
- 24V Passive PoE（45+，78-） / 12V DC/2A
|
| Button |
- 1 *RESET Button
|
| Antenna |
- 1*Built-in 12dBi dual polarized antennas
|
| LED Indicators |
- 1 *MODE, 1 *Power, 1 *WAN/LAN, 1 *LAN, 4 *Signal Strength
|
| Dimensions（L X W X H） |
- 9.3 x 3.1 x 2.3 in. (237.5 x 79 x 58.5mm)
|
| WIRELESS FEATURES | |
|---|---|
| Standards |
- IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE 8.3, IEEE 8.3ab, IEEE 8.3at
|
| RF Frequency |
- 5.15~5.825GHz
|
| Data Rate |
- Up to 450Mbps
|
| EIRP |
< 20dBm
|
| Wireless Security |
- 64/128-bit WEP, WPA/WPA2/WPA-PSK/WPA2-PSK
|
| Reception Sensitivity | - TX 802.11a/n(HT20)/n(HT40) /ac(VHT80)= 24/22/22/20dBm |
| - RX 802.11a/n(HT20)/n(HT40)/ac=-72/-68/-65/-55dBm （MP） | |
| - RX 802.11a/n(HT20)/n(HT40)/ac=-72/-68/-65/-55dBm （MP） | |
| SOFTWARE FEATURES | |
|---|---|
| Operation Mode | - Access Point, Repeater Mode, Client Mode,WISP Mode |
|
MIMO Type
|
- 5G 1Tx-1Rx
|
|
Management
|
- Save/Reset Settings, Firmware upgrade, System Log
|
| Reliability | - 4KV Lightning Protection |
| - 15KV ESD Protection | |
| - IP65 level dustproof and waterproof | |
| Others | |
| Package Contents | - CP450 Wireless CPE *1 |
| - Power Adapter *1 | |
| - User Guide *1 | |
| - Ethernet Cable *1 | |
|
- Strips*2
|
|
| Environment | - Operating Temperature: -40℃~70℃ (-40 ℉~158℉) |
| - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) | |
| - Operating Humidity: 10%~90% non-condensing | |
| - Storage Humidity: 5%~90% non-condensing | |
