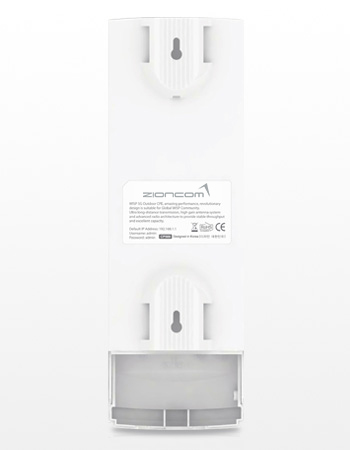

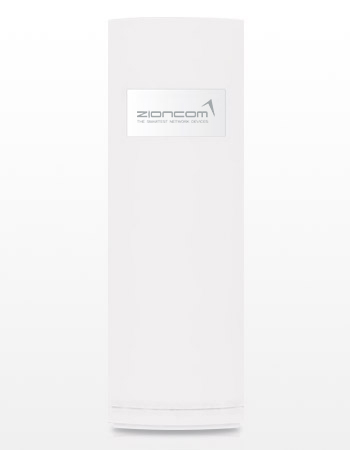

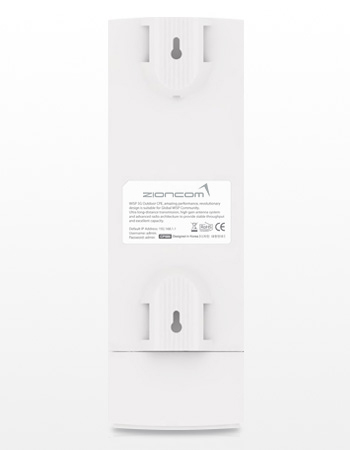

CP150

150Mbps 2.4GHz Wireless N AP/Client

  • - Long Distance Transmission
    - Protection Design
    - Flexible Power Supply by Passive PoE




  • CP150 is WISP CPE Solution that specially designed for long distance wireless transmission. With one internal high performance antenna and advanced radio architecture, it can make the radio signal transmission coverage more extensive with a stable wireless connection and deliver up to 150Mbps data rate. Powered by Passive PoE, CP150 simplifies the network cable deployment and is suitable for all kinds of environment with the waterproof design.







    Long Distance Transmission
    With one internal high performance antenna, CP150 can deliver up to 150Mbps wireless data rate with  stable Wi-Fi connection. Placed on the roof of the building, it can excellently transfer stable signal for long distance use.


    Protection Design
    With the waterproof design, it can adapt to any poor working environment and effectively protect itself from dust, water and lightning.


    Flexible Power Supply by Passive PoE
    Powered by Power over Ethernet (PoE) technology, CP150 can not only ensure the security of structured cabling but also improves the deployment flexibility and reduce costs.

    - Complies with IEEE802.11n /g/b standards on 2.4G band.
    - Supports PPPoE, DHCP, Static IP, PPTP and L2TP broadband functions.
    - One 8dBi internal antenna.
    - Multiple APs allows user to add other two SSIDs accordingly.
    - 4 LED signal strength indications.
    - Supports 64/128 bit WEP encryption and WPA-PSK, WPA2-PSK security.
    - Repeater function allows more terminals to access Internet.
    - Supports passive PoE power supply.
    - Lightning protection design.
    - QoS can allocate bandwidth reasonably.
    HARDWARE FEATURES
    Interface  1 *100BaseTX (Auto MDI/MDIX) LAN Port
    Power Supply  12V DC /1A (PoE)
    Button  1 *Reset Button
    Antenna  1 *8dBi internal antenna

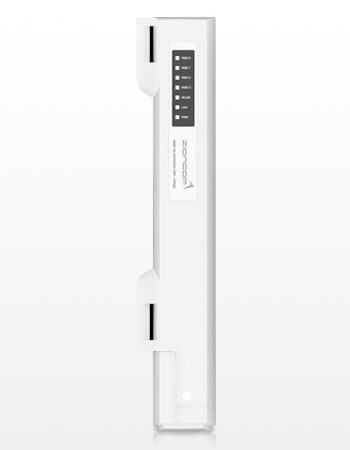

    LED Indicators  1 *Power, 1 *LAN, 1 *WLAN, 4 *Signal Strength
    WIRELESS FEATURES
    Standards  IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.3u, IEEE 802.3
    RF Frequency  2.4~2.4835GHz
    Data Rate  802.11n: up to 150Mbps
      802.11g: up to 54Mbps (dynamic)
      802.11b: up to11Mbps (dynamic)
    EIRP  < 20dBm
    Wireless Security  64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
    Reception Sensitivity  135M: -65 dBm@10% PER
      54M: -68 dBm@10% PER
      11M: -85 dBm@8% PER
      6M: -88 dBm@10% PER
      1M: -90 dBm@8% PER
    SOFTWARE FEATURES
    Operation Mode  Gateway, Bridge, Wireless ISP
    Network  LAN Setup, Static DHCP Setup , WAN Setup
    Wireless  Basic Setting, Security Setting, Advanced Setting, Multiple APs,
      MAC Authentication, WDS, WPS, Repeater
    Firewall  IP/Port Filtering, MAC Filtering, URL Filtering, Port Forwarding,
      DMZ Setting, Denial of Service
    Management  Statistics, Dynamic DNS Setting (Bridge mode doesn’t have this option)
      Time Zone Setting, Remote Management
      System Log, Upgrade Firmware
      Save/Reload Setting, Administrator Setting
    Others
    Package Contents  CP150 Wireless CPE *1
      PoE Box *1
      Power Adapter *1
      Ethernet Cable *1
      Quick Installation Guide *1
    Environment  Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
      Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~90% non-condensing
