| Hardware | |
|---|---|
| Standard&Protocol |
- IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3af、IEEE 802.3at
|
| Interface |
- 8* 10/100Base-TX RJ45 Ports(Data/Power)
- 2*10/100/1000Base-T RJ45 Port(Data)
|

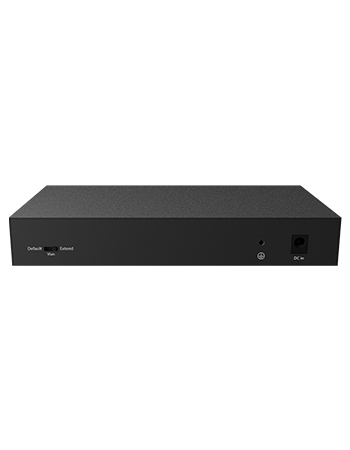

| Button |
- 1* Extender Button
|
| Dimensions(L x W x H) |
- 190 x 105 x 29mm
|
| LED |
- 10*Link/Act per device
- 8*PoE per device
- 2*1000M per device
- 1*Power per device
|
| Port Lightning Protection |
- 6KV
|
| Backup Bandwidth |
- 5.6Gbps
|
| MAC Address Table |
- 16K
|
| PoE Supply Management |

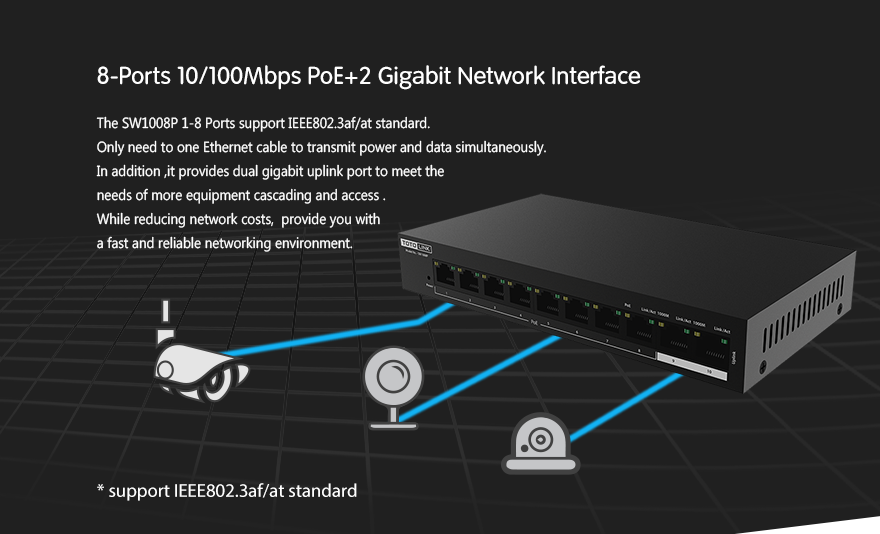

- Port 1 to Port 8 support IEEE802.3at/af PoE standard
|
| PoE Through Pin |
- 1 2 4 5 +，3 6 7 8 -
|
| Power Input |
- AC：100-240V～ 50/60Hz
- DC : 51V/1.17A & 51V/1.96A（Power Adapter ）
|
|
Power Consumption
|
- In full configuration：<102W
- PoE Max Power Supply：99W
|
| Ports feature |
Standard:
the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.

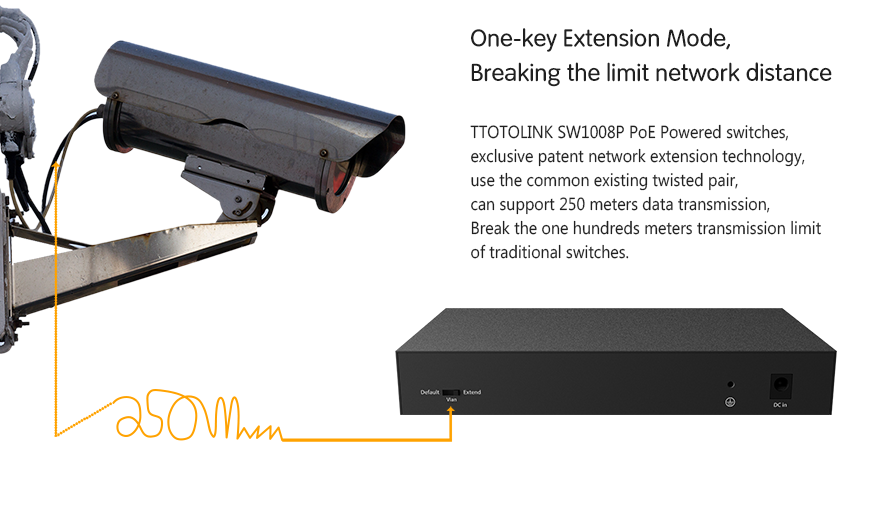

Extend Mode:
If the extend mode is enabled, the transmission distance of both power and data will extend up to 250m(10Mbps), this funcation can replace the extender and parts of the Fiber. It will extend the distance of the whole system and save the cost of the project. |
| Others | |
|---|---|
| Package Contents |
- SW1008P Desktop Switch *1
- Power Adapter
- Quick Installation Guide *1
|
| Environment |
- Operating Temperature: 0℃~50℃ (32℉~122℉) - Storage Temperature: -40~70℃ (-40℉~158℉) - Operating Humidity: 5%~95% non-condensing - Storage Humidity: 5%~95% non-condensing |
