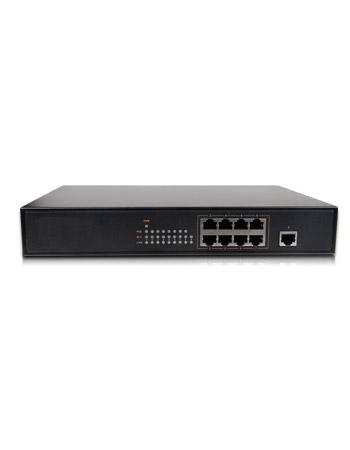

SW1009PT

9 port 10/100M PoE Switch








  • - IEEE 802.3at Power over Ethernet PoE compliant.
    - Supports 10/100Mbps fast Ethernet.
    - 8 x 100Mbps Auto-MDIX PoE port, 9th 100Mbps RJ45 port uplink.
    - Internal power supply.- Provides up to 30watts for single PoE port.
    - Automatically detects the PoE class level of a Powered Device.
    - 1.8Gbps bandwidth.
    - Forwarding rate: 100 Mbps / 148,800 pps; 10 Mbps / 14,880 pps.
    - Status LEDs: System Power, PoE, 100 Mbps, and Link / Activity.
    - Full wire-speed non-blocking reception and transmission.
    - Store-and-forward switching method.
    - Back pressure Flow Control for Half-Duplex mode.
    - IEEE 802.3x Flow Control for Full-Duplex mode.

    HARDWARE FEATURES
    Network Port  8 * 10/100Mbps POE port
      1* 10/100Mbps Uplink port
    Speed  100M/1000Mbps full duplex
      Internet port:100BASE-T or 1000BASE-TX POE RJ-45 port
    Function Standard  Network delay(100 to 100M bps):Max 20 microsecond
      Packet buffer memory:96KB
      Database size:1,024 MAC address
      1000Mbps/ 1488.00 pps, 100 Mbps / 148,800 pps, 10 Mbps / 14,880 pps
    Network Standard  IEEE 802.3i 10BASE-T
      IEEE 802.3u 100BASE-TX
      IEEE 802.3x Flow Control
      IEEE 802.3at Power over Ethernet
    LEDs indicator  Power, PoE, Link / Activity
    Power Adapter  Internal 150W power adapter
    Size  Dimensions: 280*180*44mm
      Weight:2kg
    Environment  Operating Temperature: 0°C~40°C
      Storage Temperature: -10°C~70°C
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~90% non-condensing
    Safe Standard  CE/LVD
    Certification  CE. FCC ROHS
    Package  SW1009PT desktop, Power cord, user manual
