SW24G2

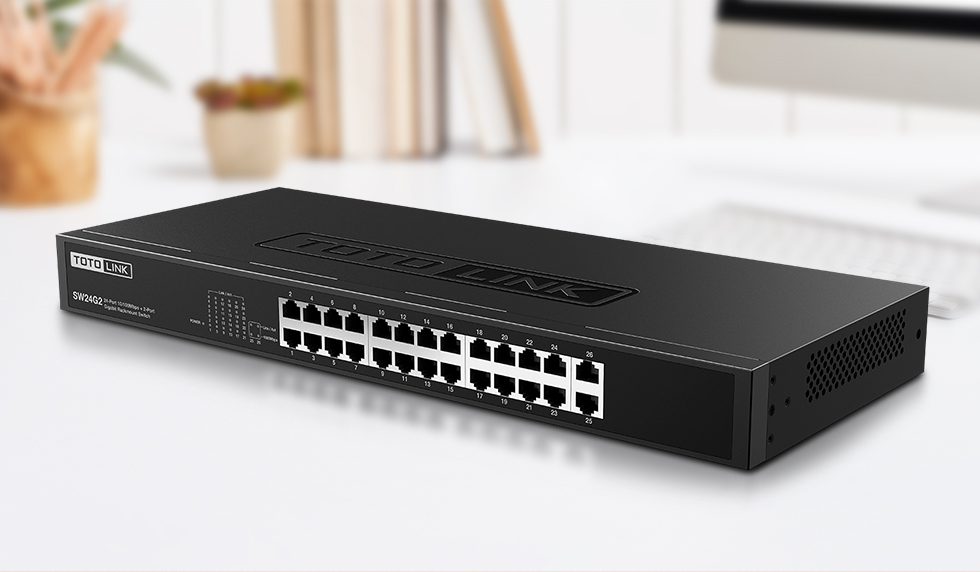

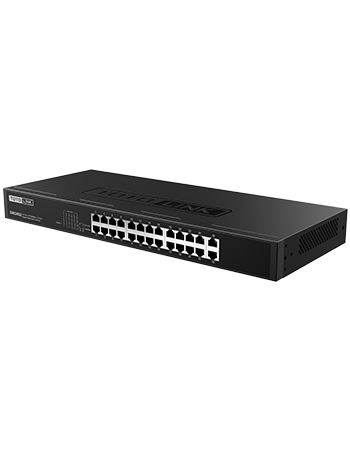

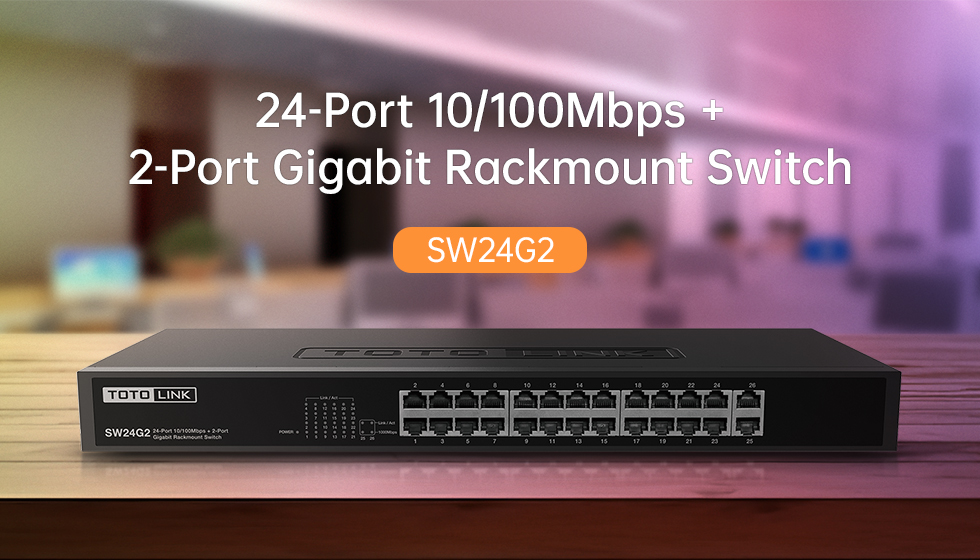

24-Port 10/100Mbps + 2-Port Gigabit Rackmount Switch

  • - Fast Ethernet Speed
    - Plug and Play
    - Standard 19-inch rack-mountable steel case.
    - 8K entry MAC address table and automatic address learning.
    - Auto-MDI/MDIX eliminates the need for crossover cables.


  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs

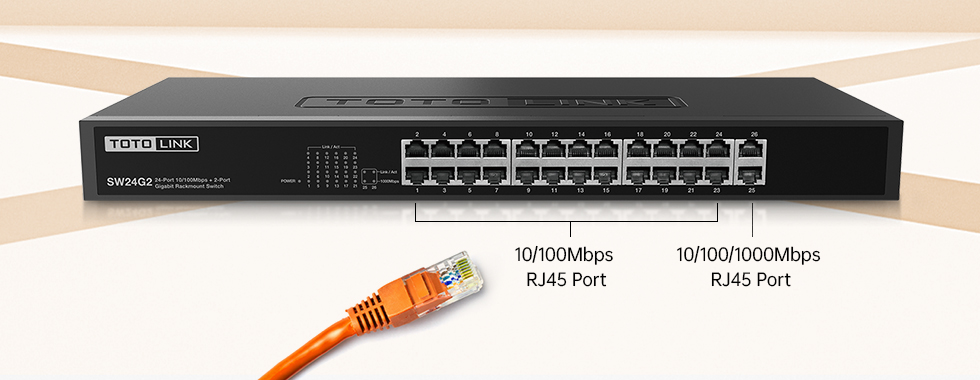

    • - 24 10/100Mbps+2 10/100/1000Mbps auto-negotiated RJ45 ports.
    - Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.
    - 8K entry MAC address table and automatic address learning.
    - Auto-MDI/MDIX eliminates the need for crossover cables.
    - Store-and-Forward Switching scheme.
    - Performs non-blocking full wired speed.
    - Plug and Play.
    - Standard 19-inch rack-mountable steel case.
    General
    Standards  - IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
    Interface  - 24*10/100Mbps +2-Port 10/100/1000Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX)
    Power Supply  - 100~240VAC,50/60Hz
    Dimensions(L x W x H)  - 440 x 180 x 44mm
    LED  - 1* Power, 26*LANs
    MAC Address Learning  - Auto-learning, auto-aging
    - IGMP Snooping
    MAC Address Table  - 8K
    Network Media
    - 10BASE-T: UTP Cat 3, 4, 5 cable
    - 100BASE-TX/1000BASE-T: UTP Cat 5, 5e or above cable
    Backup Bandwidth
    - 8.8Gbps
    Transmission Method
    		 - Store-and-forward
    Others
    Package Contents
    		 - SW24G2 Rackmount Switch *1
    - Quick Installation Guide *1
    - Power Cable *1
    - Rackmount Kit *1
    Environment

    		 - Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
    - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
    - Operating Humidity: 10%~90% non-condensing
    - Storage Humidity: 5%~90% non-condensing
