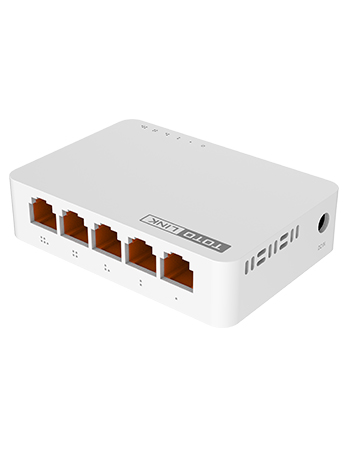

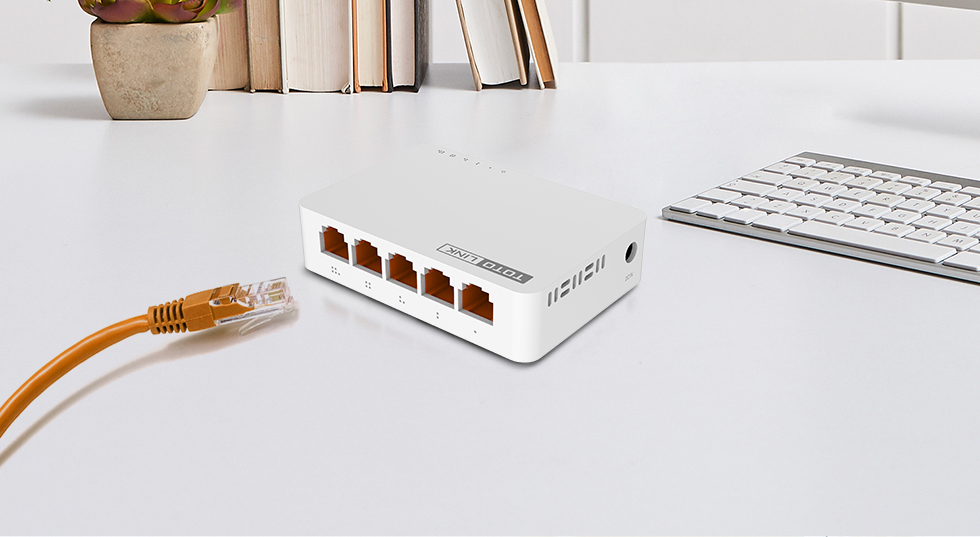

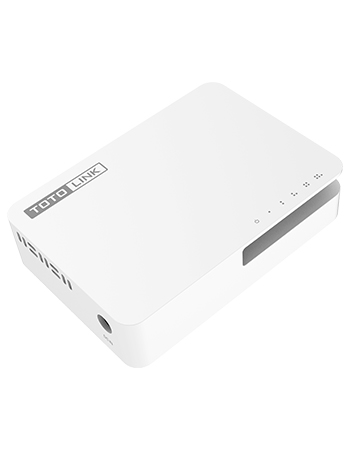

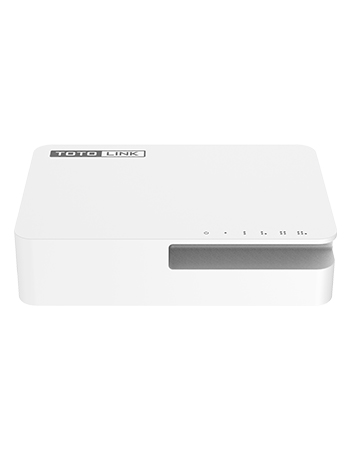

S505G_V3

5-Port Gigabit Desktop Switch

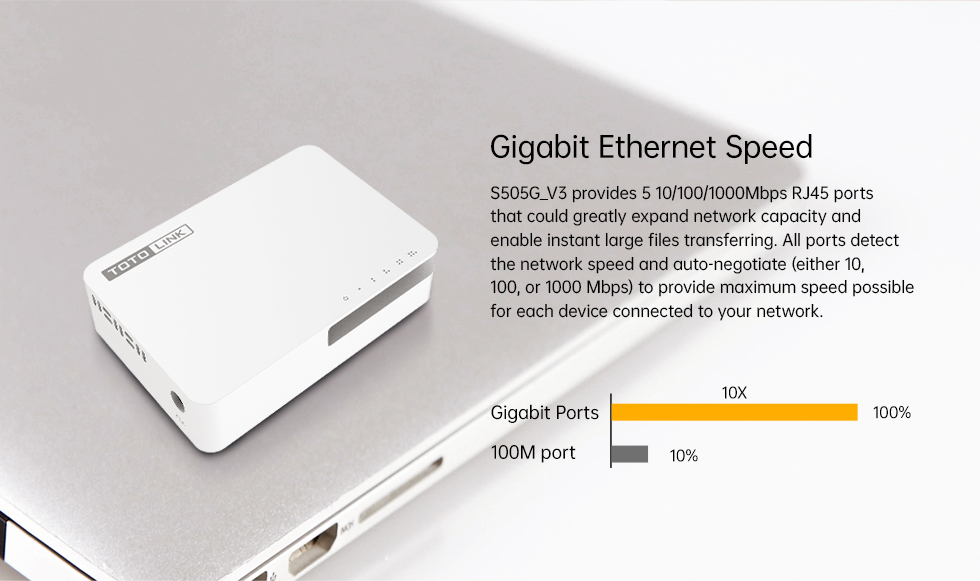

  • - Gigabit Ethernet Speed
    - Auto MDI/MDIX
    - Support IGMP Snooping
    - Plug and Play



  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs
    • - 5 10/100/1000Mbps auto-negotiated RJ45 ports.
    - Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.
    - 2K entry MAC address table and automatic address learning.
    - Support IGMP Snooping.
    - Auto-MDI/MDIX eliminates the need for crossover cables.
    - Store- and-Forward Switching scheme.
    - Performs non-blocking full wired speed.
    - Supports Giga Lite to improve transfer rate for 4-wire UTP gigabit network.
    General
    Standards  - IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
    Interface  - 5*10/100/1000Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX)
    Power Supply  - 5V DC/0.6A
    LED
    -1* Power, 5*LANs
    Dimensions(L x W x H)
    		 - 93 x 65 x 24mm
    MAC Address Learning
    		 - Auto-learning, auto-aging
    MAC Address Table
    - 2K
    Advanced Features
    - IGMP Snooping, Giga Port
    Network Media  - 10BASE-T: UTP Cat 3, 4, 5 cable
      - 100BASE-TX/1000BASE-T: UTP Cat 5, 5e or above cable
    Backup Bandwidth  - 10Gbps
    Transmission Method  - Store-and-forward
    Others
    Package Contents
    - S505G_V3 Desktop Switch *1
    - Power Adapter
    - Quick Installation Guide *1
    Environment
    - Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
    - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
    - Operating Humidity: 10%~90% non-condensing
    - Storage Humidity: 5%~90% non-condensing
