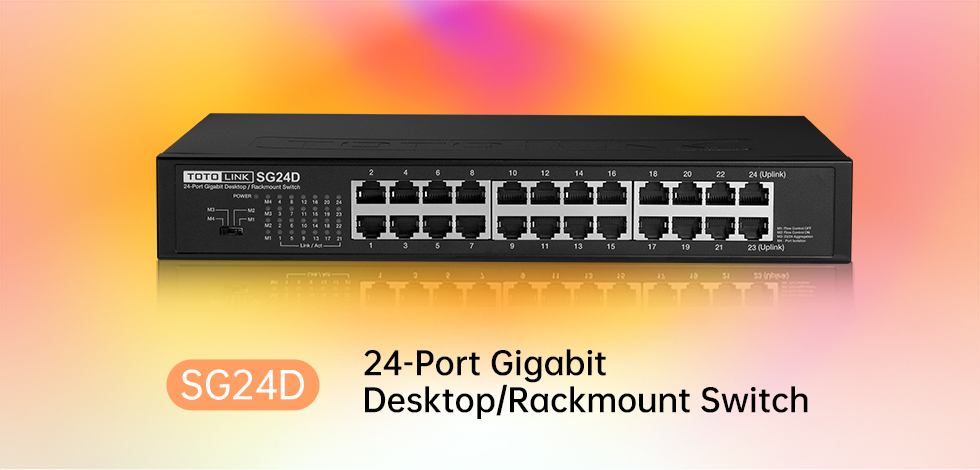

SG24D

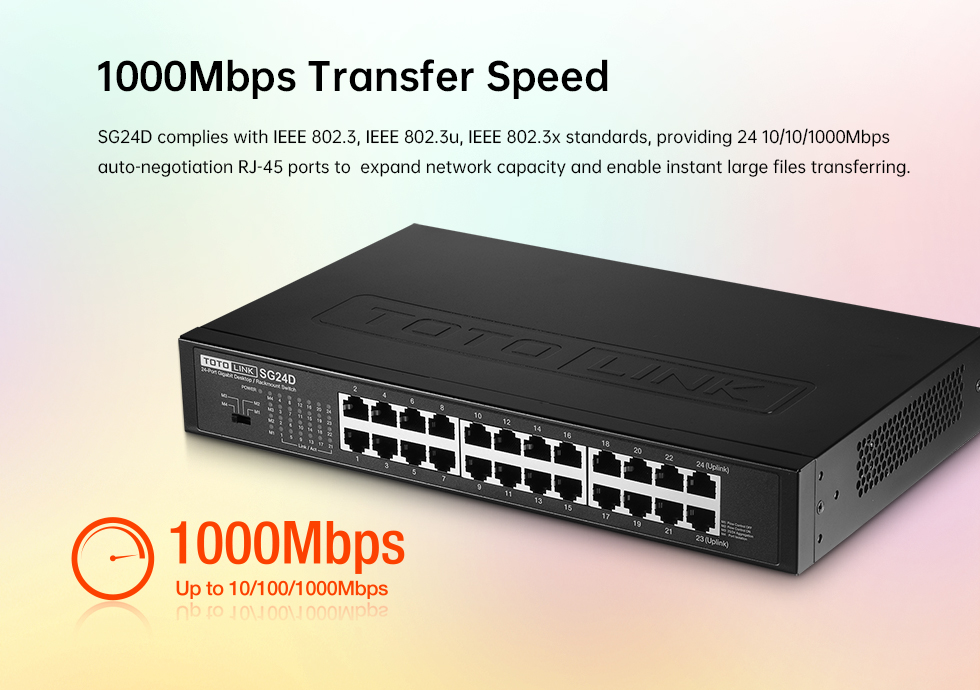

- 24 10/100/1000Mbps auto-negotiated RJ45 ports.
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.
- 48Gbps Switching Capacity.
- Auto-MDI/MDIX eliminates the need for crossover cables.
- Store and forward Switching scheme.
- MTBF≥5 years.

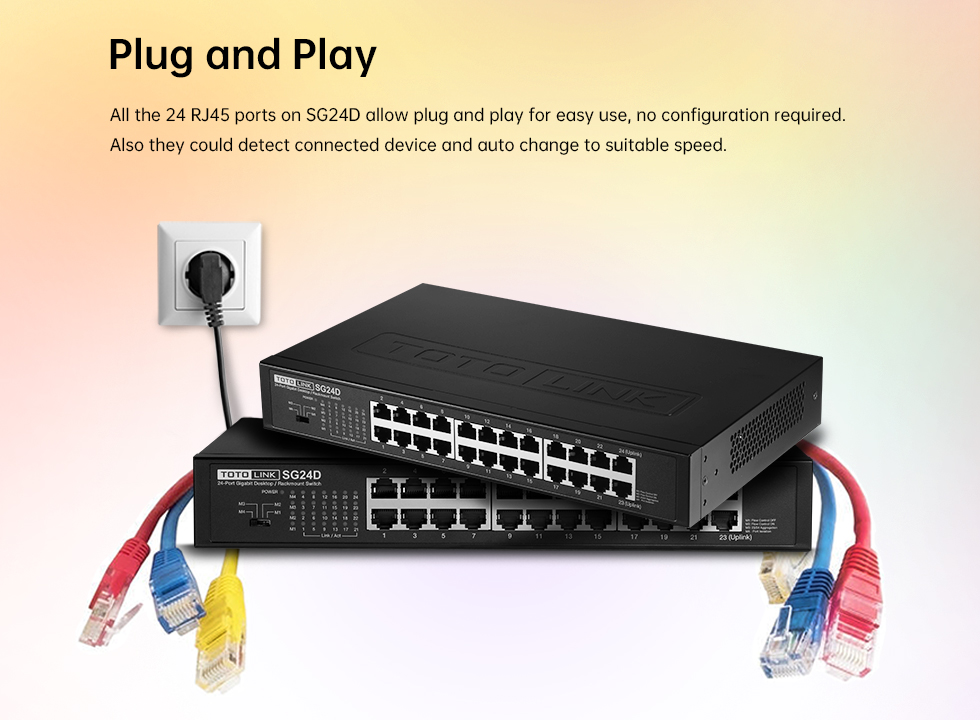

- Plug and Play.

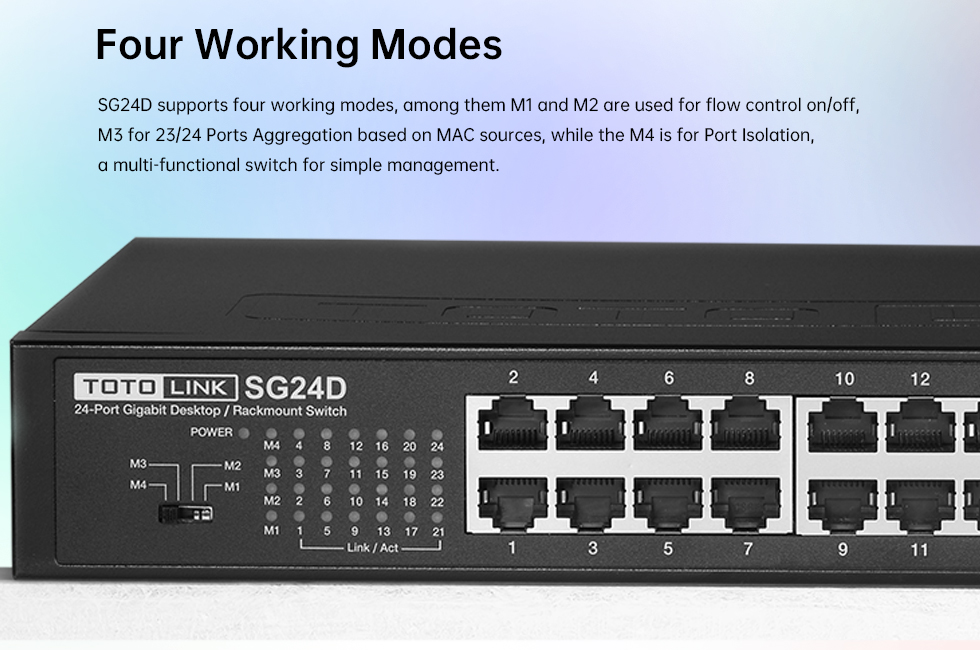

- Four Working Modes.
- Desktop and Rack-mountable design.

General
Standards	- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Interface	- 24*10/100/1000Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX)
Power Supply	- AC 100V~240V, 50/60Hz
Dimensions(L x W x H)	- 290 x 180 x 45mm
LED	- 1* Power, 24*LANs
MAC Address Learning	- Auto-learning - Auto-aging
MAC Address Table	- 8K
Backup Bandwidth	- 48Gbps
Network Media	- 10BASE-T: UTP Cat 3, 4, 5 cable  - 100BASE-TX/1000BASE-T: UTP Cat 5, 5e or above cable
Four Working Modes	- M1: Flow Control OFF - M2: Flow Control ON - M3: 23/24 Ports Aggregation based on MAC sources - M4: 1-22 Port Isolation, 23~24 Port Uplink.
Transmission Method	- Store-and-Forward
Package Contents	- SG24D Desktop/Rackmount Switch *1 - Quick Installation Guide *1 - Power Cable *1 - Rackmount Brackets *1
Environment	- Operating Temperature: 0℃~50℃ (32℉~122℉) - Storage Temperature: -40~70℃ (-40℉~158℉) - Operating Humidity: 5%~90% non-condensing - Storage Humidity: 5%~90% non-condensing
