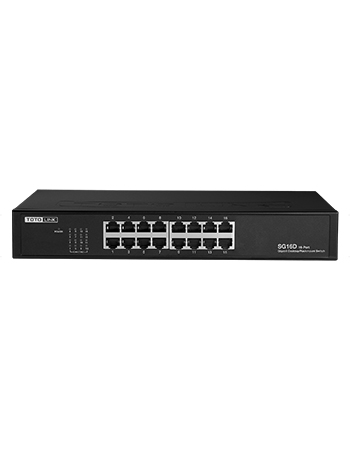

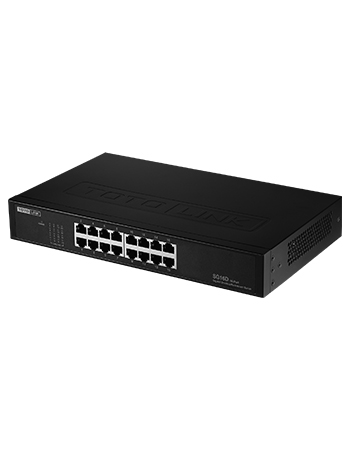

SG16D

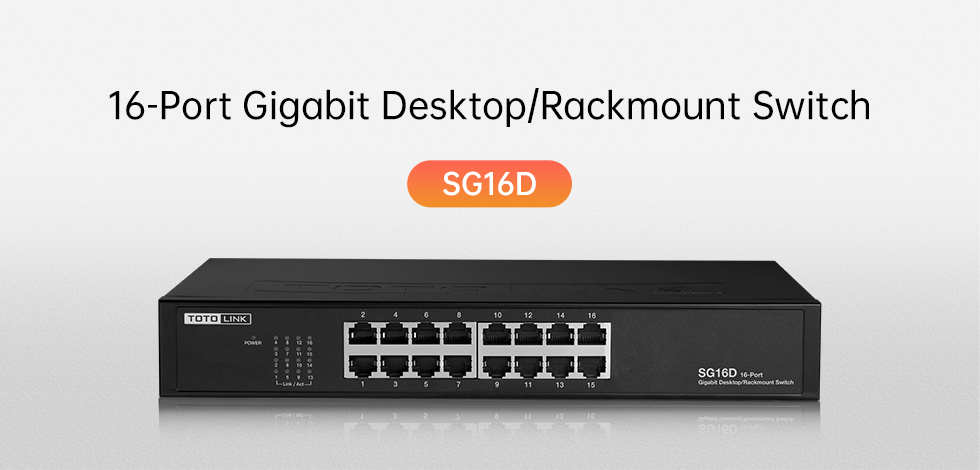

16-Port Gigabit Desktop/Rackmount Switch

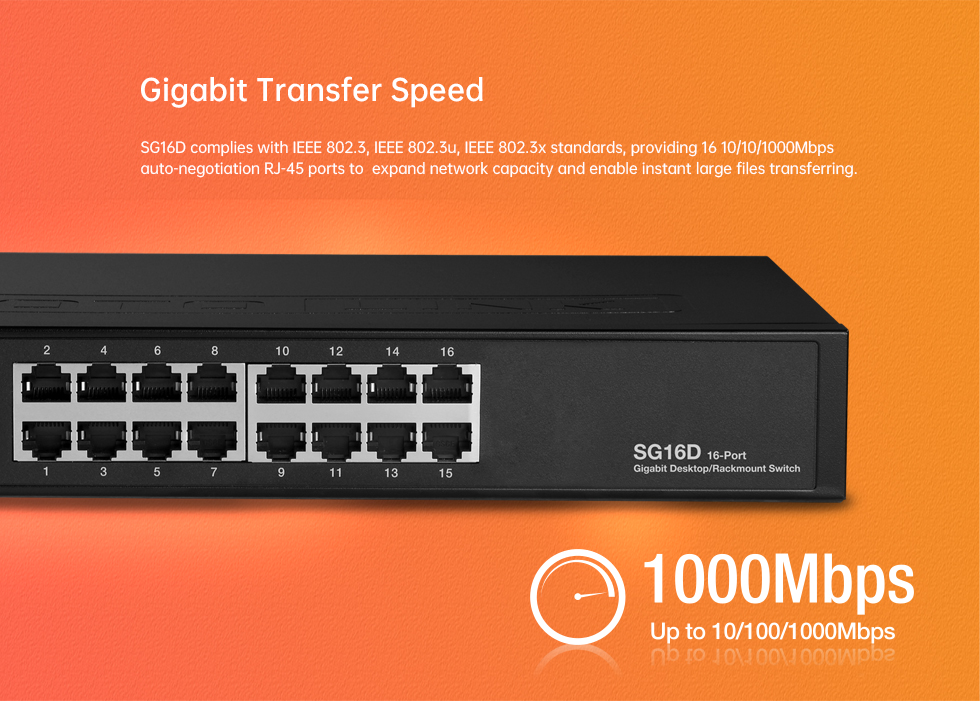

  • - Gigabit Transfer Speed

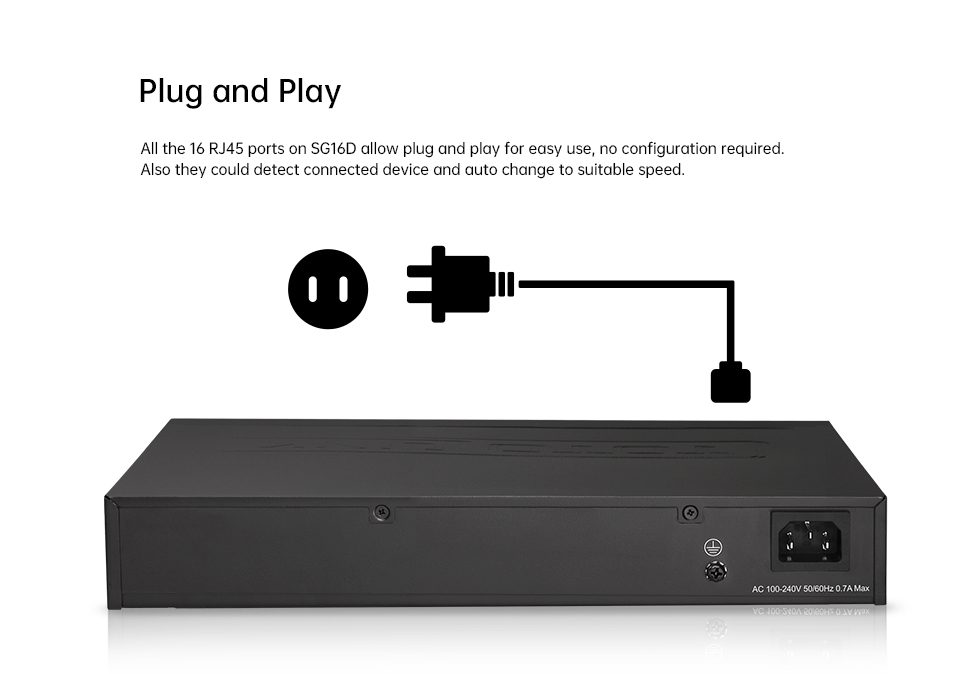

    - Plug and Play

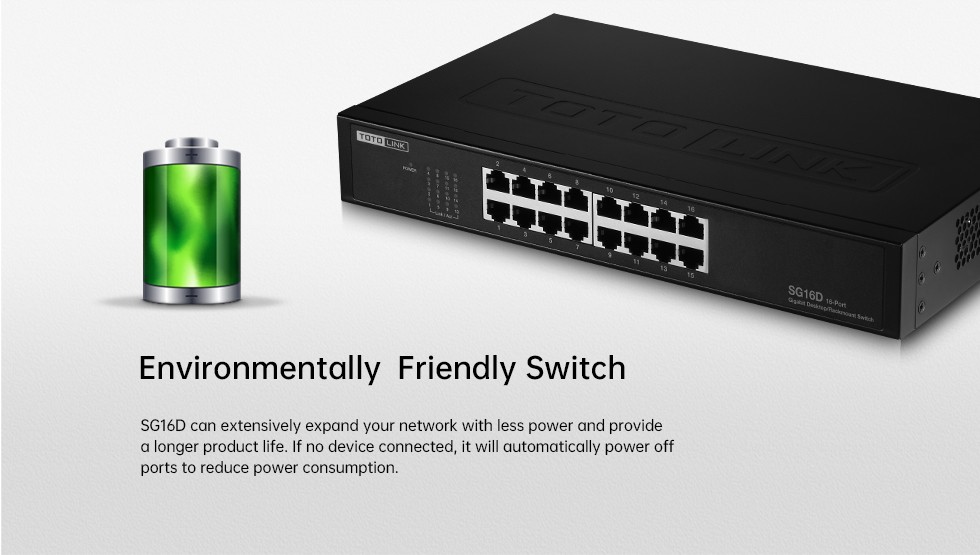

    - Environmentally Friendly Switch




  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs

    • - 16 10/100/1000Mbps auto-negotiated RJ45 ports.
    - Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.
    - 32Gbps Switching Capacity.
    - Auto-MDI/MDIX eliminates the need for crossover cables.
    - Store and forward Switching scheme.
    - Plug and Play.
    - Standard 13-inch Desktop/Rackmount Steel Case.
    General
    Standards  - IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
    Interface  - 16*10/100/1000Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX)
    Power Supply
    - AC 100V~240V, 50/60Hz
    Dimensions
    - 290 x 180 x 45mm
    LED
    - 1*Power, Link/Act (1~16)
    MAC Address Learning  - Auto-learning, auto-aging
    MAC Address Table  - 8K
    Network Media  - 10BASE-T: UTP Cat 3, 4, 5 cable (100m, max)
    - 100BASE-TX/1000BASE-T: UTP Cat 5, 5e or above cable (100m max.)
    Backup Bandwidth - 32Gbps
    Transfer Method
    - Store-and-Forward
    Package Contents
         		 - SG16D Desktop/Rackmount Switch *1
    - Quick Installation Guide *1
    - Power Cable *1
    - Rackmount Brackets *1
    Environment
    - Operating Temperature: 0℃~40℃ (32℉~104℉)
    - Storage Temperature: -40~70℃ (-40℉~158℉)
    - Operating Humidity: 10%~90% non-condensing
    - Storage Humidity: 5%~90% non-condensing
