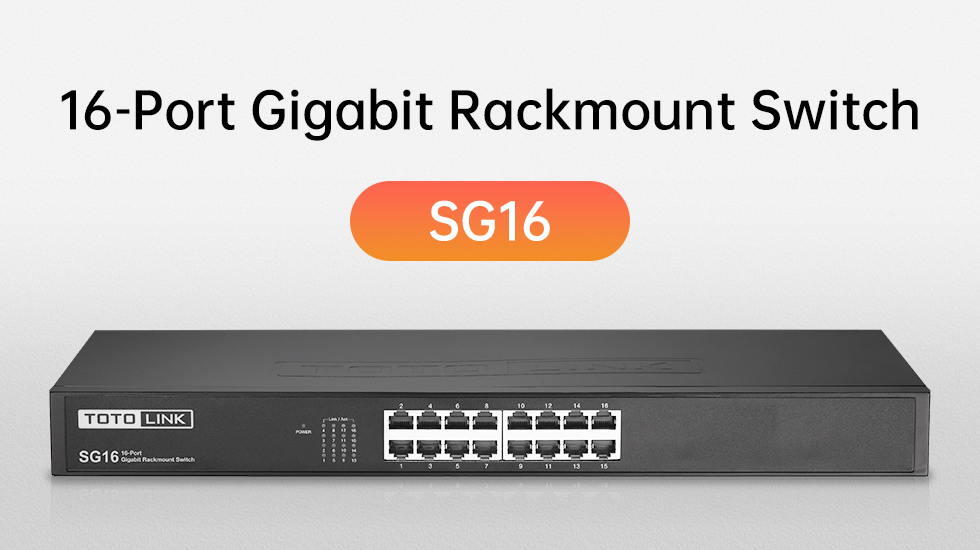

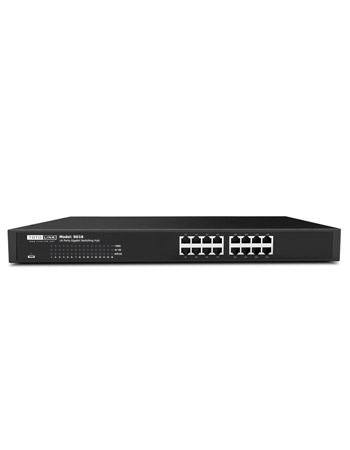

SG16

16-Port Gigabit Unmanaged Switch

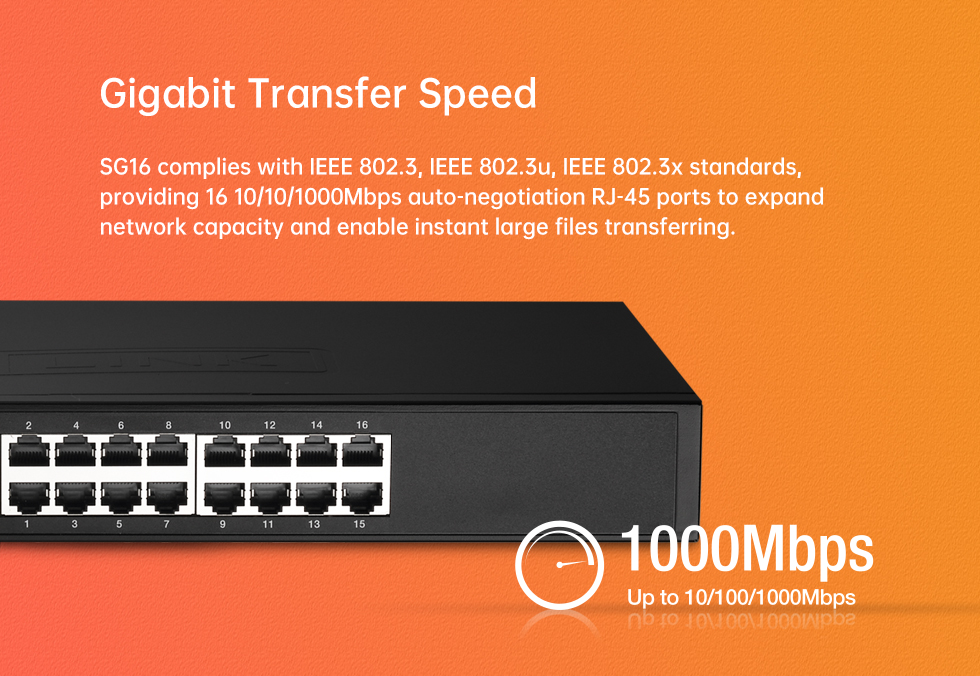

  • - 16 10/100/1000Mbps auto-negotiation RJ-45 ports.
    - IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x standards.
    - Easily Network Expanding with Gigabit Speed




  • - Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x standards.
    - 16 10/100/1000Mbps auto-negotiation ports.
    - Supports flow control for each port.
    - Supports store and forward switching scheme capability.
    - Supports NWay auto-negotiation for all ports.
    - Supports auto MDI/MDIX for each port.
    - Supports per-port bandwidth control.
    - Supports PHY register read/write access.
    HARDWARE FEATURES
    Standards  IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
    Interface  16*10/100/1000Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX)

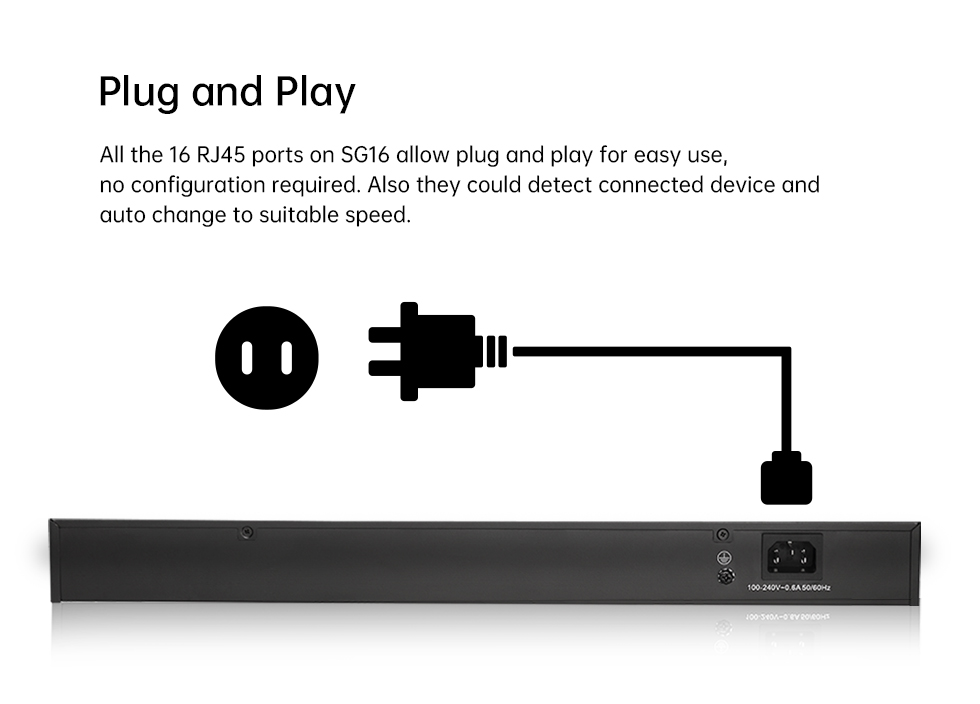

    Power Supply  100V~240VAC, 50/60Hz
    Dimensions  440mm x 160mm x 44.6mm (L x W x H)
    LED  Power, Link/Activity
    MAC Address Learning  Auto-learning, auto update
    MAC Address Table  8K
    Network Media  10Base-T: UTP Cat 3, 4, 5 cable (100m, max.)
      EIA/TIA-568 100Ω STP (100m max.)
      100Base-Tx: UTP Cat 5, 5e cable (100m, max.)
      EIA/TIA-568 100Ω STP (100m max.)
      1000Base-T: UTP Cat 5, 5e cable (100m, max.)
    Frame Filtering  10Mbps: 14,880pps
      100Mbps: 148,800pps
      1000Mbps: 1,488,000pps
    Backup Bandwidth  32Gbps
    Transmission Method  Store-and-forward
    Environment  Operating Temperature: 0℃~40℃ (32℉~104℉)
      Storage Temperature: -40~70℃ (-40℉~158℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~95% non-condensing
