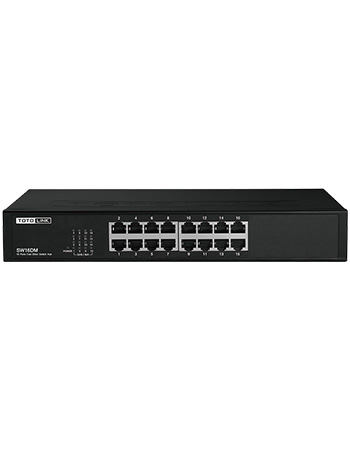

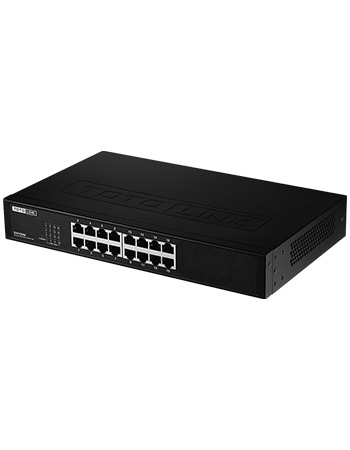

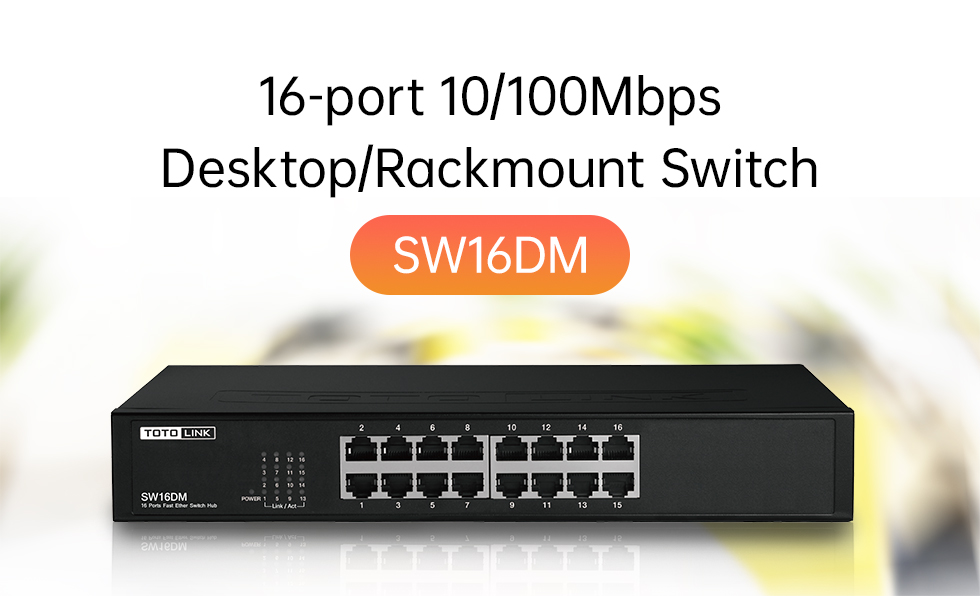

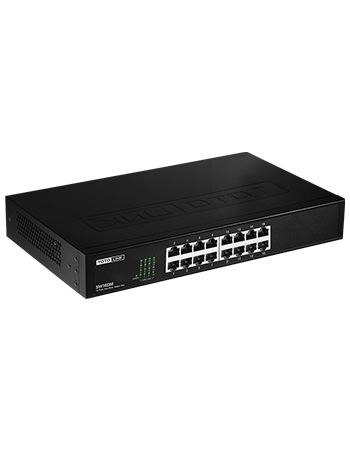

SW16DM

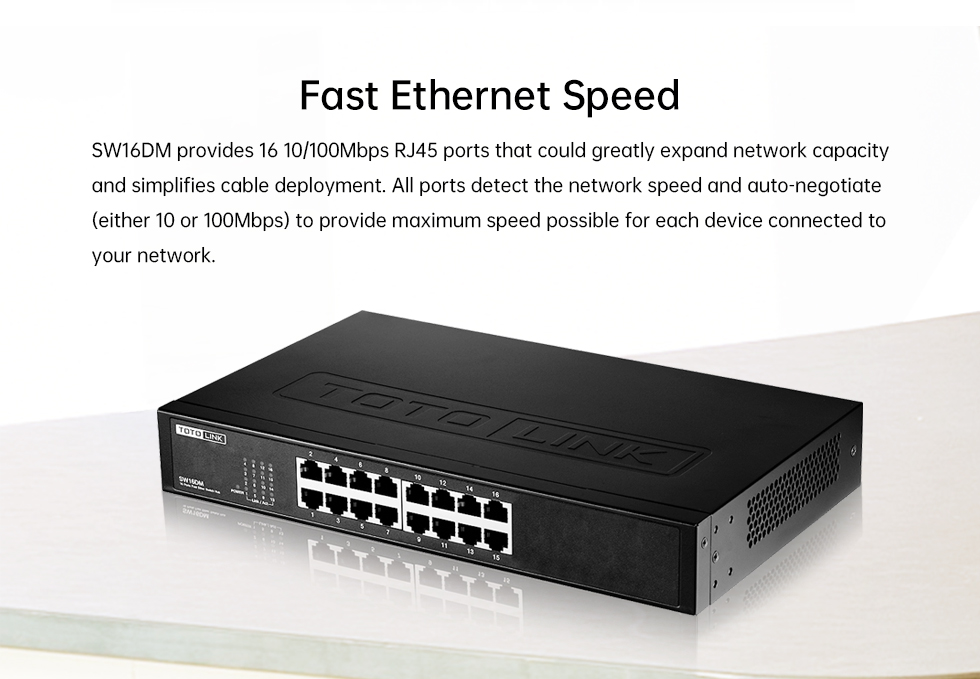

- 16 10/100Mbps auto-negotiated RJ45 ports.
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.
- 8K entry MAC address table and automatic address learning.

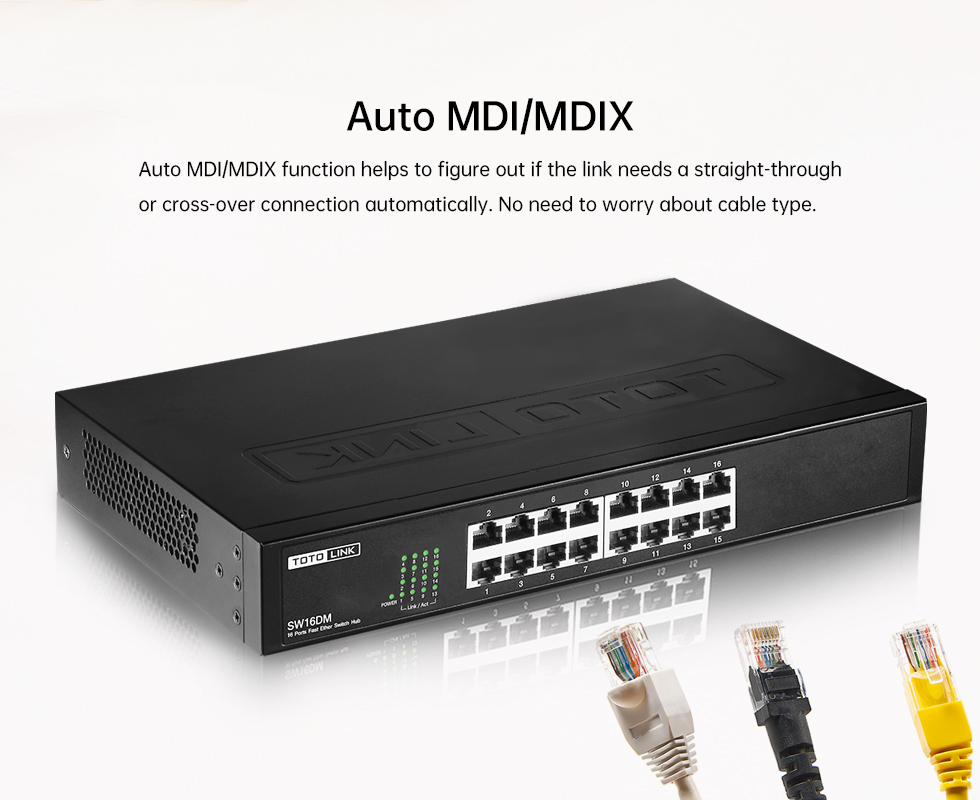

- Auto-MDI/MDIX eliminates the need for crossover cables.
- Store-and-Forward switching scheme.
- Performs non-blocking full wired speed.

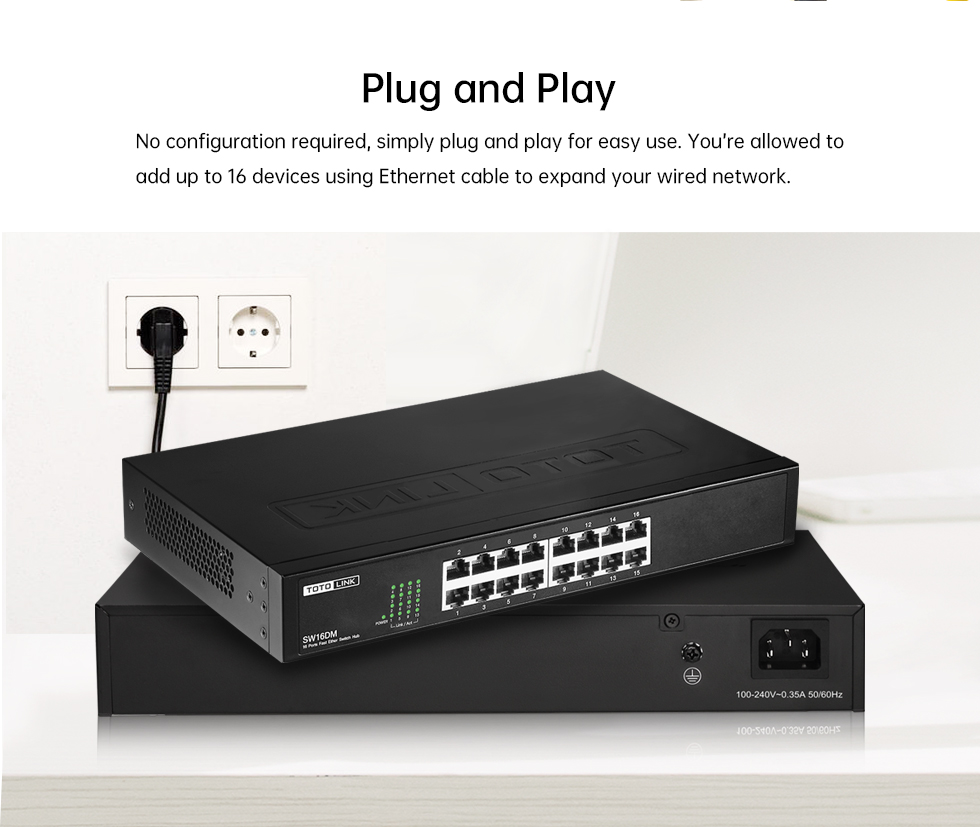

- Plug and Play.

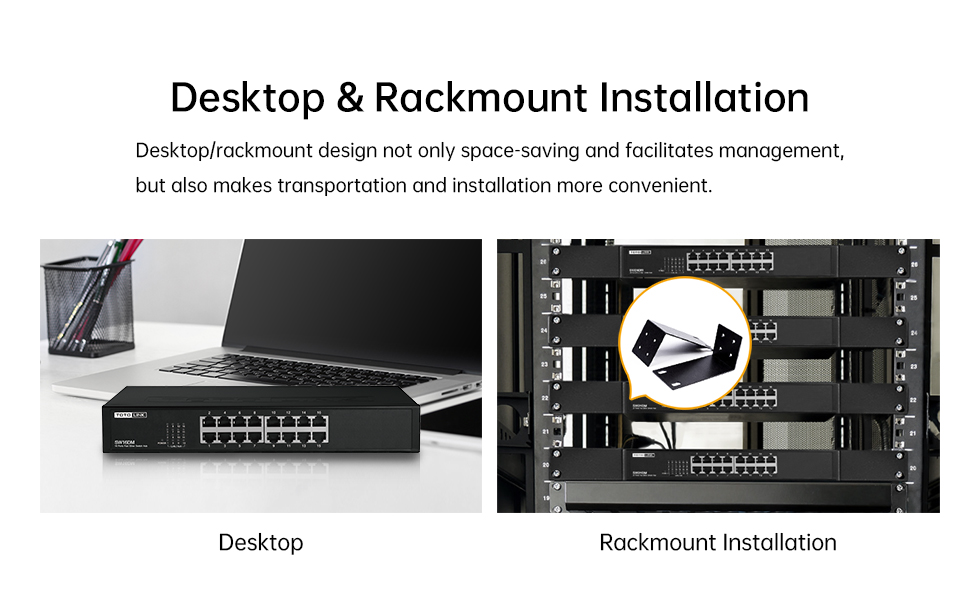

- Standard 13-inch Desktop/Rackmount Steel Case.

General
Standards	- IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Interface	- 16*10/100Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX)

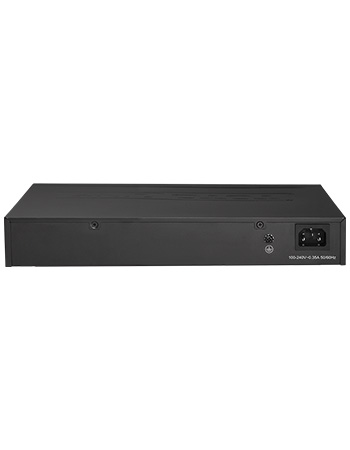

Power Supply	- 100~240VAC,50/60Hz
Dimensions(L x W x H)	- 290 x 180 x 45MM
LED	- 1* Power, 16*LANs
MAC Address Learning	- Auto-learning, auto-aging
MAC Address Table	- 8K
Network Media	- 10BASE-T: UTP Cat 3 or above cable - 100BASE-TX: UTP Cat 5, 5e or above cable
Backup Bandwidth	- 3.2Gbps
Transmission Method	- Store-and-forward

Others
Package Contents	- SW16DM Desktop/Rackmount Switch *1 - Quick Installation Guide *1 - Power Cable *1 - Rackmount Brackets *1
Environment	- Operating Temperature: 0℃~40 ℃ (32 ℉~104℉) - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) - Operating Humidity: 10%~90% non-condensing - Storage Humidity: 5%~90% non-condensing
