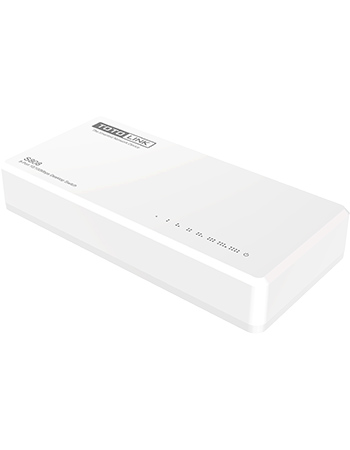

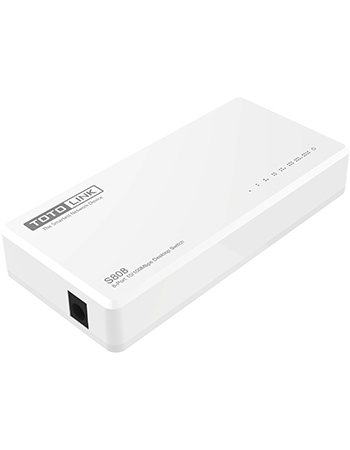

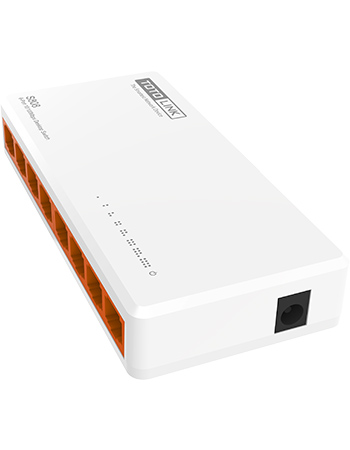

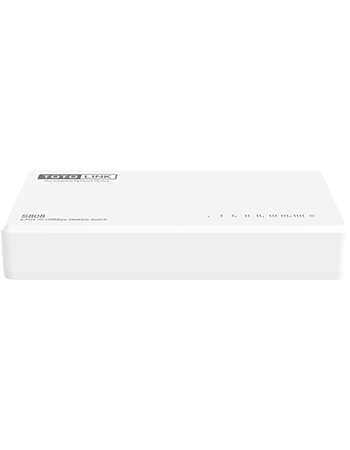

S808

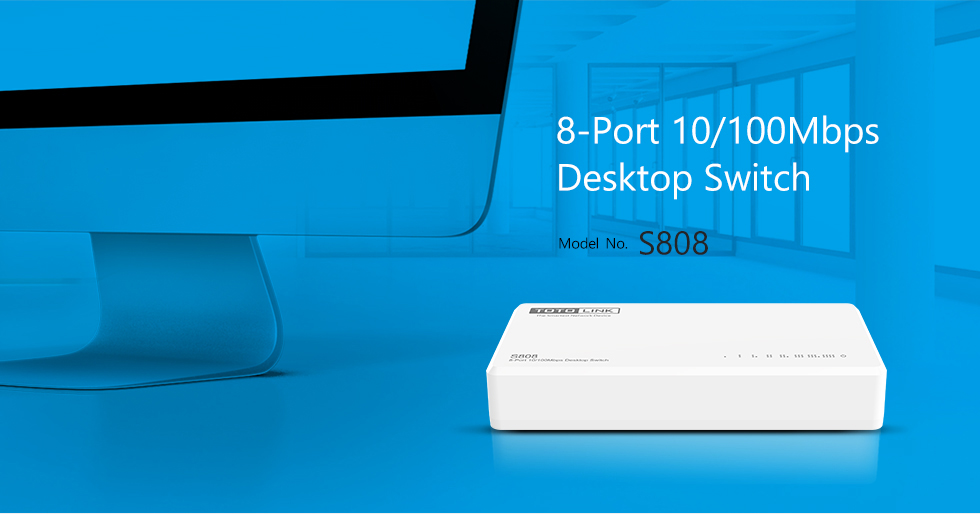

8-Port 10/100Mbps Desktop Switch

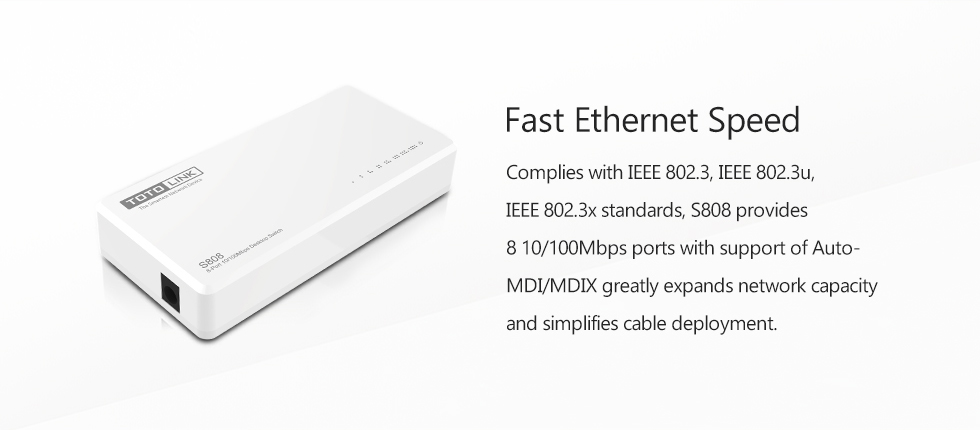

  • - Fast Ethernet Speed

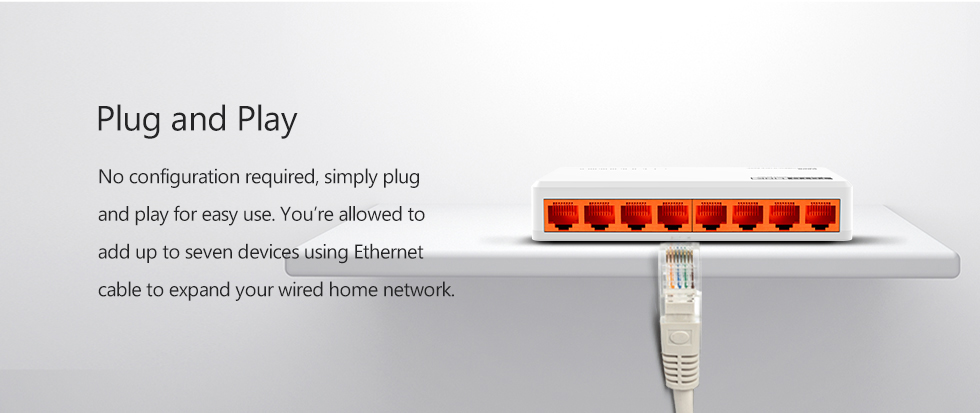

    - Plug and Play





  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs

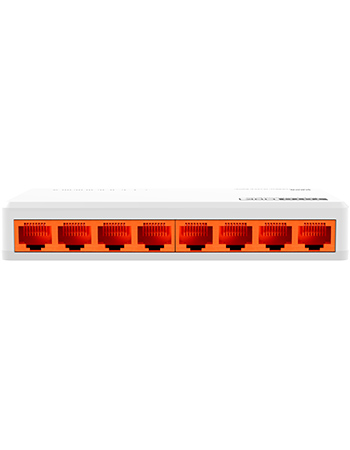

    • - 8 10/100Mbps auto-negotiated RJ45 ports.
    - Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.
    - Mini plastic design supports desktop placement or wall mount.
    - 1K entry MAC address table and automatic address learning.
    - Auto-MDI/MDIX eliminates the need for crossover cables.
    - Store- and-Forward switching scheme.
    - Performs non-blocking full wired speed.


    General
    Standards  IEEE 802.3, IEEE 802.3u, IEEE 802.3x
    Interface  8*10/100/1000Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX)
    Power Supply  5V DC/0.6A
    Dimensions(L x W x H)
    126 x 60 x 22mm
    LED  1* Power, 8*LANs
    MAC Address Learning  Auto-learning, auto-aging
    MAC Address Table  1K
    Network Media  10BASE-T: UTP Cat 3, 4, 5 cable
      100BASE-TX/1000BASE-T: UTP Cat 5, 5e or above cable
    Backup Bandwidth  1.6Gbps
    Transmission Method  Store-and-forward
    Others
    Package Contents
    S808 Desktop Switch *1
      Power Adapter
      Ethernet Cable *1
      Quick Installation Guide *1
    Environment  Operating Temperature: 0℃~50℃ (32℉~122℉)
      Storage Temperature: -40~70℃ (-40℉~158℉)
      Operating Humidity: 5%~95% non-condensing
      Storage Humidity: 5%~95% non-condensing
