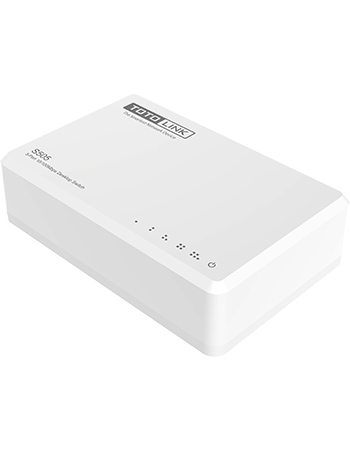

S505

5-Port 10/100Mbps Desktop Switch

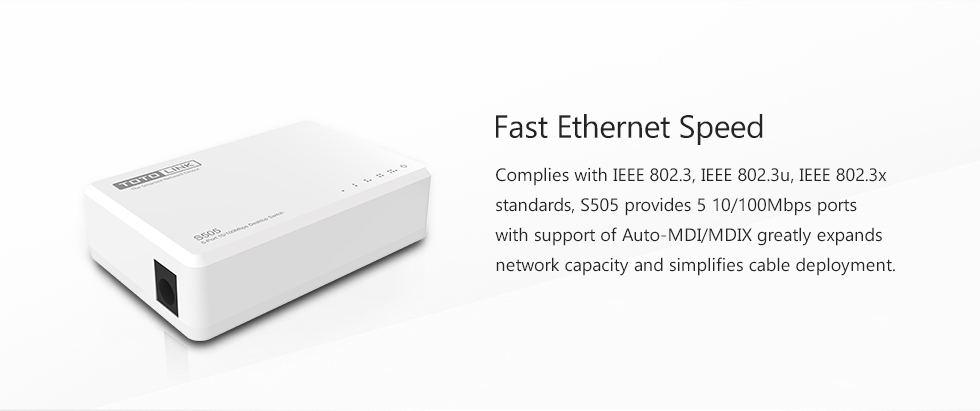

  • - Fast Ethernet Speed

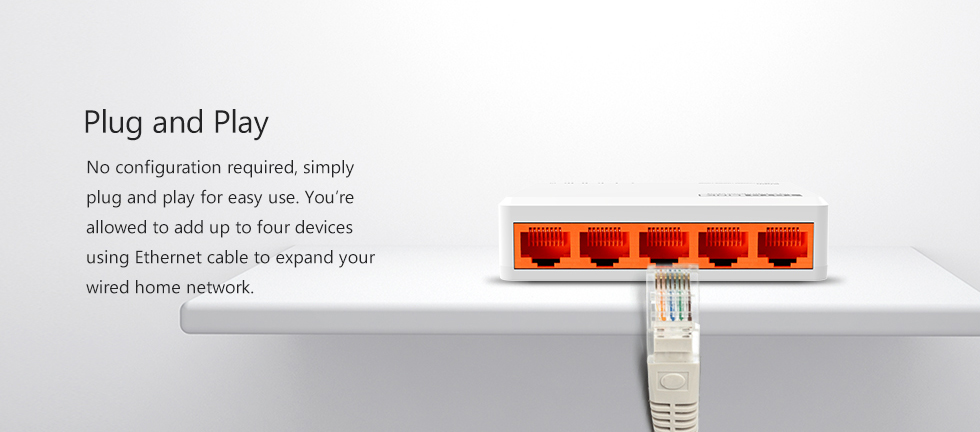

    - Plug and Play





  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs

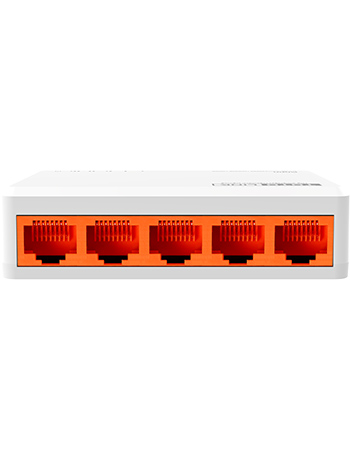

    • - 5 10/100Mbps auto-negotiated RJ45 ports.
    - Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.

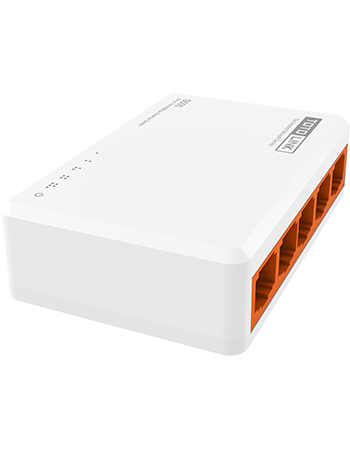

    - Mini plastic design supports desktop placement or wall mount.
    - 1K entry MAC address table and automatic address learning.
    - Auto-MDI/MDIX eliminates the need for crossover cables.
    - Store- and-Forward switching scheme.
    - Performs non-blocking full wired speed.

    General
    Standards  - IEEE 802.3, IEEE 802.3u, IEEE 802.3x
    Interface  - 5*10/100/1000Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX)

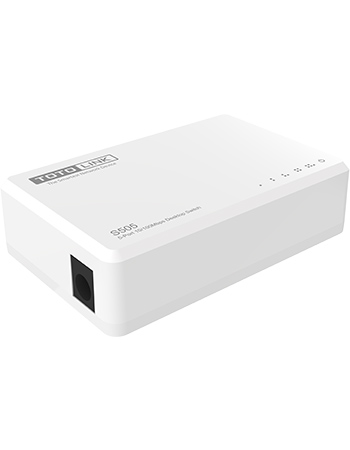

    Power Supply  - 5V DC/0.6A
    Dimensions(L x W x H)
    - 80 x 52 x 22mm

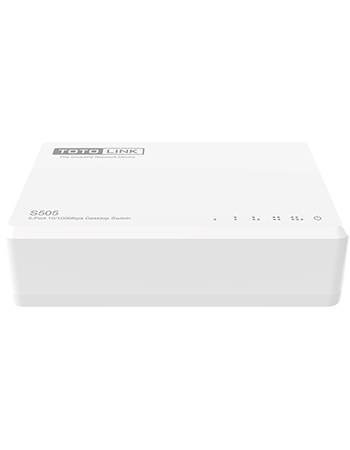

    LED  - 1* Power, 5*LANs
    MAC Address Learning  - Auto-learning, auto-aging
    MAC Address Table  - 1K
    Network Media
    - 10BASE-T: UTP Cat 3 or above cable
      - 100BASE-TX/1000BASE-T: UTP Cat 5, 5e or above cable
    Backup Bandwidth  - 1Gbps
    Transmission Method  - Store-and-forward
    Others
    Package Contents
    - S505 Desktop Switch *1
      - Power Adapter
      - Ethernet Cable *1
      - Quick Installation Guide *1
    Environment  - Operating Temperature: 0℃~50℃ (32℉~122℉)
      - Storage Temperature: -40~70℃ (-40℉~158℉)
      - Operating Humidity: 5%~95% non-condensing
      - Storage Humidity: 5%~95% non-condensing
