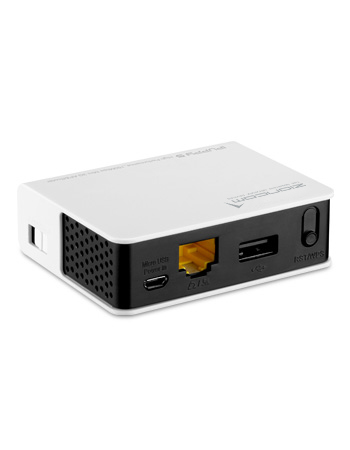

iPuppy5

150Mbps 3G Wireless N Portable AP








  • iPuppy 5 is a 3G Wireless N Portable AP. It allows users to set up a 150Mbps wireless network quickly and share a 3G mobile connection. By connecting to a 3G USB card, this router will instantly establish a Wi-Fi hotspot which can make you share an Internet connection wherever 3G is available. So no matter where you are, on the train, on camping or at a construction site, you'll get a reliable wireless connection to accommodate your networking needs.


    Excellent Wireless Network Performance (150Mbps)
    iPuppy 5 supports 802.11n standard and provides 150Mbps wireless data transmission rate for most reliable connection. It ensures users to enjoy the best wireless connection in your entire home and to enjoy commonly used procedures smoothly.



    Multiple SSID for Access Control
    Multi-SSID function is designed for users who want to set up extra wireless networks for guests or friends with better access control. Isolate one wireless network to several different WiFi spots is easy maintenance for manager in those companies which consist of many different departments.



    Outstanding Bandwidth Control with QoS
    Unified bandwidth control based on IP/MAC allows optimum bandwidth utilization to discriminate every user. It is very effectively to solve bandwidth-tension while internal users enjoying high bandwidth-consuming application. Assigned specific bandwidth, internal users can be limited better to run applications, which lead to a perfect network performance.



    3G Mobile Broadband Internet Connection
    By inserting a compatible mobile broadband USB modem, you can easily access 3G mobile broadband and share network connection with others.



    Portable Design
    With its travel-sized design, it’s convenient for you to carry no matter you are on the move or at home.



    Robust Security
    The most advanced WPA/WPA2 (TKIP/AES) encryption is provided to ensure the security of wireless connection. Only the users who known the SSID and encryption key can connect to the network, so that users needn’t worry about being occupied by others. What’s more, to keep the Internet browsing experience safe, it provides IP/MAC/URL filter to enhanced the security outside and inside the network.

    - Complies with IEEE 802.11n and IEEE 802.11g/b standards for 2.4GHz Wireless LAN.
    - Supports DHCP, PPPoE, Static IP, PPTP, L2TP and 3G.
    - Supports dual access while WAN type is PPPoE, PPTP or L2TP.
    - Provides one USB 2.0 port for 3G USB modem connection.
    - Provides 64/128-bit WEP, WPA, WPA2 and WPA/WPA2 (TKIP+AES) security.
    - Connects to secure network easily and fast using WPS.
    - Supports IP/Port, MAC, URL filtering and Port Forwarding.
    - Repeater function expands the wireless coverage and allows more terminals to access Internet.
    - QoS: Bandwidth Control based on IP/MAC.
    - Multiple SSID allows users to add another SSID for different needs.
    - SSH Server ensures the security of remote login.
    - Supports TR-069 protocol for remote centralized management.
    - Easy setup simplifies the basic settings of the router.
    HARDWARE FEATURES
    Interface  1*100Mbps WAN/LAN Port
      1*Micro USB
      1*USB (Support 3G)
    Power Supply  9V DC/0.5A
    Button  RST/WPS Button, AP/Router Switch
    LED Indicators  1*Power, 1* Wireless, 1*WAN/LAN , 1*USB
    Antenna  1*2dBi internal antenna
    Environment  Operating Temperature: 0℃~50℃ (32℉~122℉)
      Storage Temperature: -40~70℃ (-40℉~158℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~95% non-condensing
    WIRELESS FEATURES
    Standards  IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
    RF Frequency  2.4~2.4835GHz
    Data Rate  802. 11n: up to 150Mbps
      802.11g: up to 54Mbps (dynamic)
      802.11b: up to11Mbps (dynamic)
    Wireless Security  64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
    Output Power  20dBm (Max.)
    Channels  1-11 (North America), 1-13 (General Europe), 1-14 (Japan)
    Modulation Type  DBPSK, DQPSK, CCK and OFDM (BPSK,QPSK,16-QAM/ 64-QAM)
    Reception Sensitivity  135M: -65 dBm@10% PER
      54M: -68 dBm@10% PER
      11M: -85 dBm@8% PER
      6M: -88 dBm@10% PER
      1M: -90 dBm@8% PER
    SOFTWARE FEATURES
    Status  System Status, Statistics, System Log
    Setup Wizard  Setup Wizard
    Quick Setup  Quick Setup
    TCP/IP Settings  LAN Interface
      WAN Interface: DHCP/Static IP,/PPPoE,/PPTP/L2TP/3G
      VLAN Settings
    Wireless  Basic Settings(including Band, Mode, SSID, Multiple APs, etc.)
      Security Settings, Site Survey, WDS
      Advanced Settings, Access Control, WPS, Schedule
    Route Setup  Static Route
      Routing Table
    Firewall  IP Filtering / Port Filtering / MAC Filtering / URL Filtering
      Port Forwarding / DMZ / Denial- of- Service / NAT Mapping
    Management  Upgrade Firmware
      Save/Reload Settings
      Web Login Password
      TR-069 config
      Date and Time
      Reboot Router
      Reboot Schedule
    Advanced  DDNS
      QoS
      Operation Mode
      SSH Server
