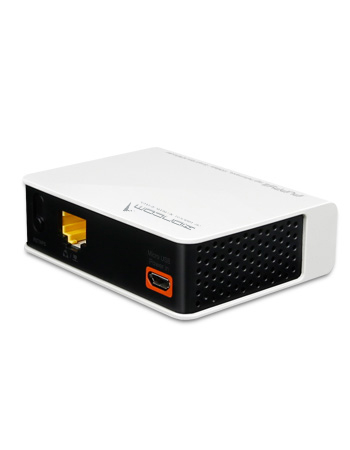

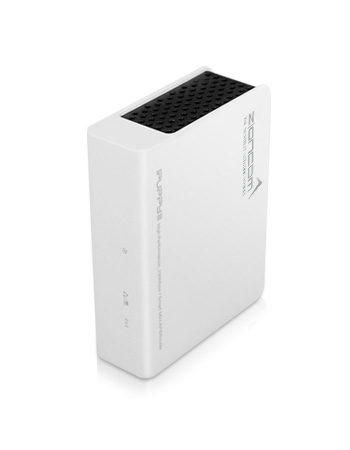

iPuppy 3

150Mbps Wireless N Portable AP








  • iPuppy 3 is a 150Mbps Wireless Portable AP which is very convenient for travelers and home users to access Internet. It allows users to access Internet by DHCP/PPPoE/Static IP. With one micro USB power-in port, it can be powered by computer or other mobile chargers besides of power adapter. Users can choose proper mode according to the situation they are in simply. Besides, it can be used as a repeater to expand the wireless coverage for more devices to enjoy Internet surfing.



    Pocket Size
    With the compact and elegant design, iPuppy 3 is very convenient for users who likes travelling or often on business. It is small and light enough  to put it into your pocket and take it on the road and perfect for creating or sharing wireless network.



    Flexibly Router /AP Mode Switching
    The slide switch is provided so that you can switch the AP or Router mode easily. In different occasion, maybe you need to use different modes. It is quite simple and practical for you to realize internet access easily without configuration on the router’s setup interface.



    Various Power Supply Modes
    The micro USB port allows power supply by PC/ power adapter/mobile phone charger. Power supply is possible while there’s no power outlet and you needn’t carry with multiple power adapters while travelling.



    Effective Multi-SSID function
    Multi-SSID function is designed for users who want to set up extra wireless networks for guests or friends with better access control. Different SSIDs and passwords help to protect your network security from guests. It supports up to 3 SSIDs which is very convenient and without conflict with each network. Generally, it is easy maintenance for manager in those companies which consist of many different departments.



    Universal Repeater
    The long distance will weaken the router’s signals so that it seems impossible for you to connect to the Internet in another room. However, the router can be used as a universal repeater, which allows you to repeat the wireless signal from existing Wi-Fi routers or wireless network devices such as laptops and tablets. Any signal picked up by the repeater is rebroadcast, then significantly extend the wireless coverage and allow more terminals to access Internet.



    Robust Security
    The most advanced WPA/WPA2 (TKIP/AES) encryption is provided to ensure the security of wireless connection. Only the users who known the SSID and encryption key can connect to the network, so that users needn’t worry about being occupied by others. What’s more, to keep the Internet browsing experience safe, it provides IP/MAC/URL filter to strengthen the security outside and inside the network.

    - Complies with IEEE 802.11n/g/b standards for 2.4GHz Wireless LAN.
    - Up to 150Mbps data rate for Wi-Fi network.
    - Portable and compact design.
    - One Micro USB port allows two ways to supply power: connect to computer or power adapter.
    - Slide switch for modes changing between AP/Router in different environment.
    - Supports PPPoE, DHCP and Static IP broadband functions.
    - Provides 64/128-bit WEP and WPA-PSK/WPA2-PSK encryption.
    - Connects to secure network easily and fast using WPS.
    - Multi-SSID allows user to add  multiple SSIDs for better access control.
    - WDS mode makes it simple for WLAN expansion.
    - The IP, MAC and URL filtering makes access and time control more flexible.
    - Repeater function allows more PCs to surf Internet.
    - Easy to install and configure.
    HARDWARE FEATURES
    Interface  1 * 10/100Mbps LAN/WAN Port
      1 * Micro USB Port
    Button  1 * RST/WPS Button, 1 *AP/Router Slide Switch
    LED Indicators  1 *Power, 1 *Wireless, 1 *WAN/LAN
    Antenna  1 *2dBi Internal Antenna
    Dimensions  74mm x 57mm x 22mm (L x W x H)
    Environment  Operating Temperature: 0℃~55℃ (32℉~131℉)
      Storage Temperature: -20~65℃ (-4℉~149℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~95% non-condensing
    WIRELESS FEATURES
    Standards  IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
    RF Frequency  2.4~2.4835GHz
    Data Rate  802.11n: Up to 150Mbps
      802.11g: Up to 54Mbps (dynamic)
      802.11b: Up to11Mbps (dynamic)
    Wireless Security  64/128-bit WEP, WPA-PSK/WPA2-PSK
    Output Power  20dBm (Max.)
    Channels  1-11 (North America), 1-13 (General Europe)
    Modulation Type  DBPSK, DQPSK, CCK and OFDM (BPSK,QPSK,16-QAM/ 64-QAM)
    Reception Sensitivity  135M: -65 dBm@10% PER
      54M: -68 dBm@10% PER
      11M: -85 dBm@8% PER
      6M: -88 dBm@10% PER
      1M: -90 dBm@8% PER
    SOFTWARE FEATURES
    Network Settings  WAN Interface
      LAN Interface/DHCP Server
    Wireless  Wireless Basic Settings
      Multiple BSS
      Wireless Multibridge: Repeater bridge/Repeater/WDS
      MAC Authentication
      WPS Settings
      Advanced Settings
    Firewall  Access Control
      IP/Port Filtering
      MAC Filtering
      URL Filtering
      Port Trigger
      Port Forwarding
      DMZ
    Management  Upgrade Firmware
      DDNS
      Time Zone Settings
      System Log
      Save/Reload Settings
      Password
      Reboot
