- Complies with 802.3an、IEEE 802.3bz、IEEE 802.3ab、IEEE 802.3u、IEEE 802.3x standards.

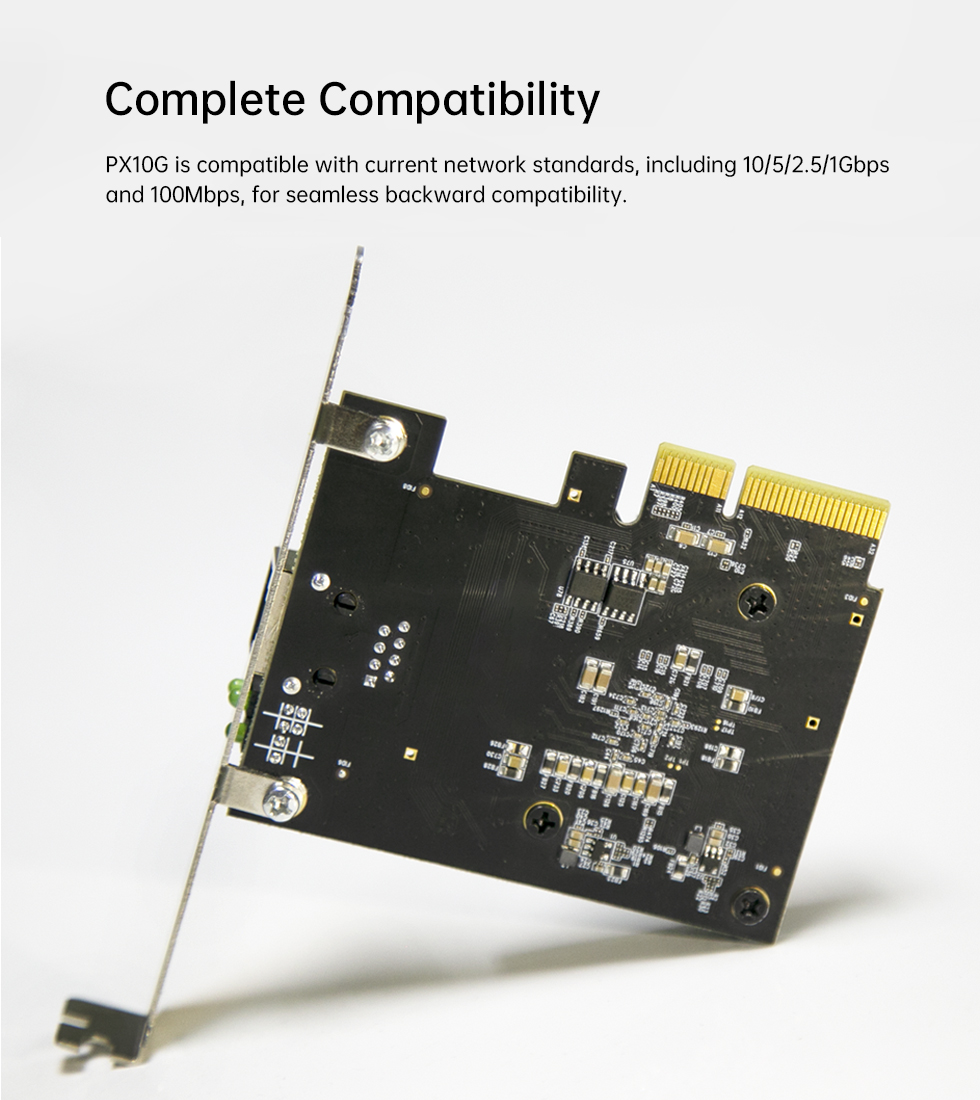

- Integrates 100M/1G/2.5G/5G/10Gbps transceiver.
- Supports PCI Express 3.0 x4 slot.
- Crossover Detection & Auto-correction.
- Supports wake-on-LAN and remote wake-up.
- Supports Full Duplex flow control (IEEE8.2.3x).
- Supports Windows 10/11, Linux.

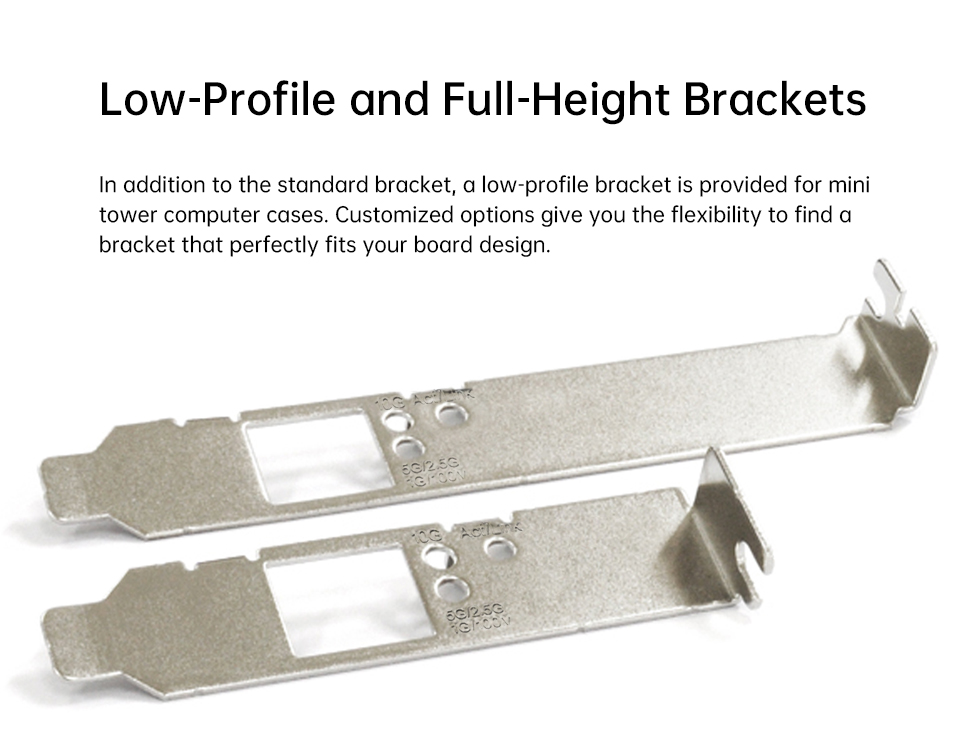

- Low-Profile and Full-Height Brackets.
|
General |
|
Standards |
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE802.3an, IEEE802.3az, IEEE 802.3x |
|
Interface |
- 1*100M/1G/2.5G/5G/10Gbps RJ45 port
- 1*PCI Express 3.0 x4 |
|
Transmission Rate |
- 100M/1G/2.5G/5G/10Gbps for Full-Duplex mode |
|

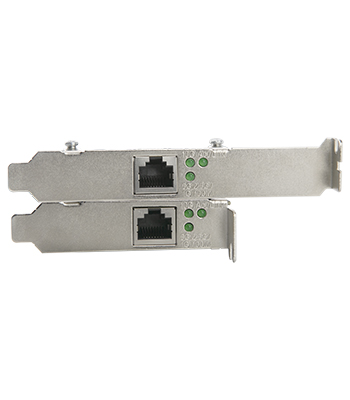

LED Indicator |
- 1*10G Link LED
- 1*5G/2.5G/1G/100M Link LED
- 1*Active LED |
|
Others |
|
Package Contents
|

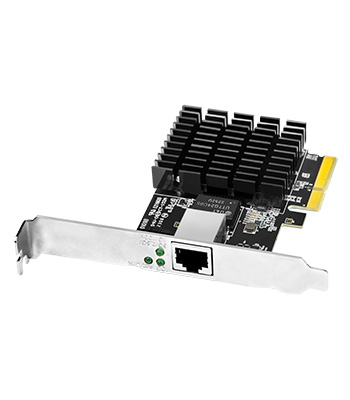

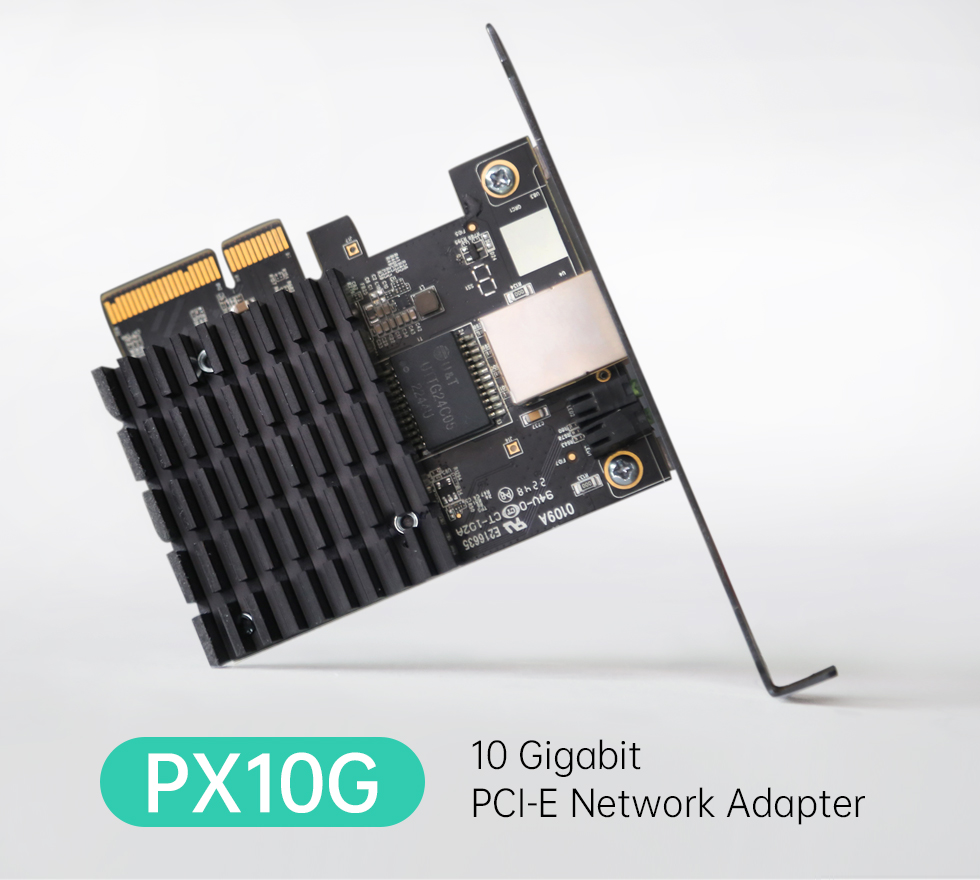

- PX10G Network Adapter *1
- Resource CD *1
- Low Profile Bracket *1
- Quick Installation Guide*1 |
|
System Requirement |
- Windows 10/11, Linux |
|
Environment
|
- Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
- Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
|
