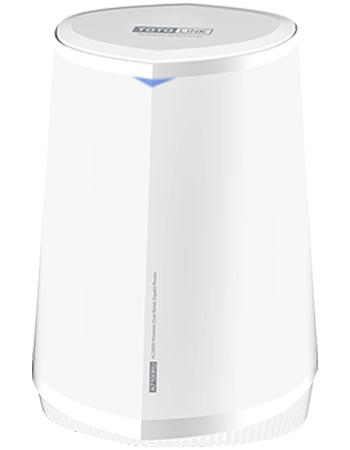

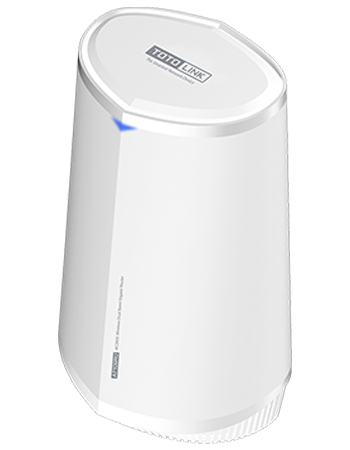

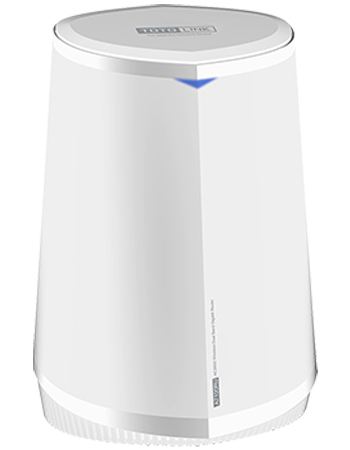

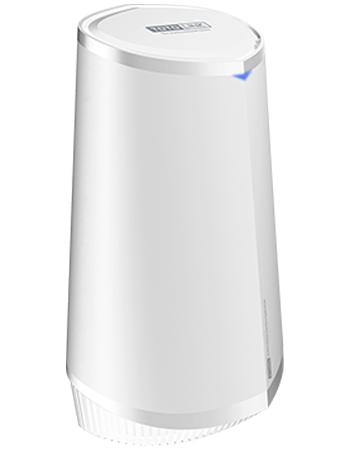

A7100RU

AC2600 Wireless Dual Band Gigabit Router

  • - 2533Mbps Super Speed Wi-Fi
    - Gigabit WAN and LAN Ports
    - USB3.0 Port
    - MU-MIMO Technology
    - Support IPTV
    - Easy Setup via Smartphone UI
    - Beamforming Technology for Focus Wi-Fi
    - Built-in Dual-Core CPU, High Wi-Fi Transmission Performance
  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs
    • - Complies with the IEEE 802.11ac Wave2 Wi-Fi standard.
    - Simultaneous 1733Mbps on 5GHz and 800Mbps on 2.4GHz for a total of 2533Mbps.

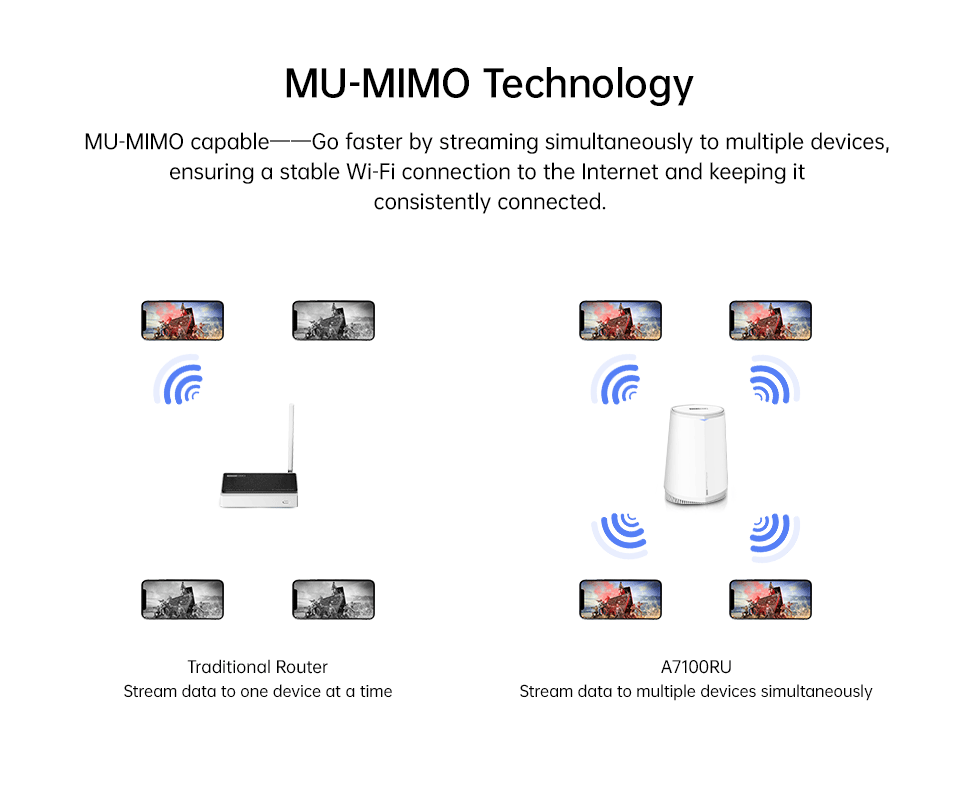

    - MU-MIMO technology allows to transfer data to multiple devices at the same time.

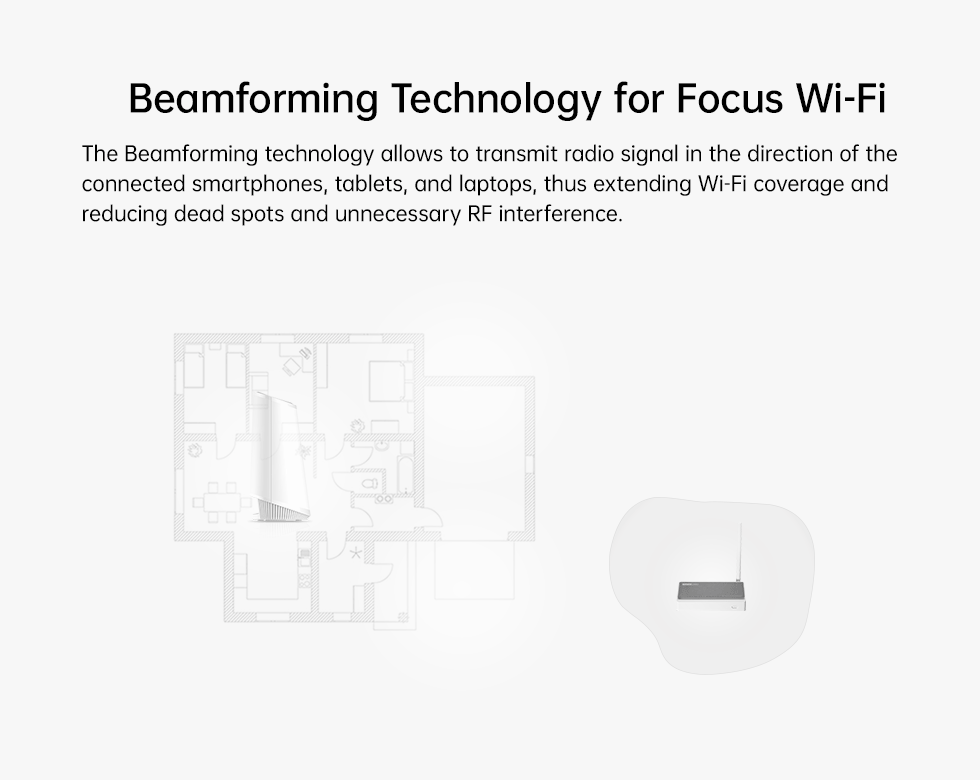

    - Beamforming technology improves directional signal transmission or reception, and reduces interferences.
    - Full Gigabit ports ensure high-speed Internet access and wired speed.

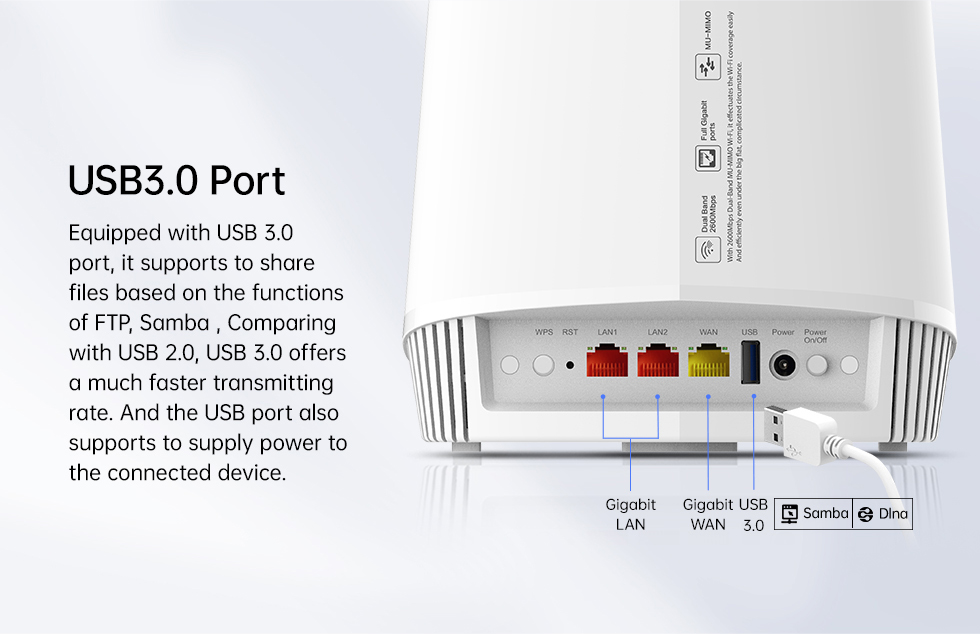

    - USB3.0 supports to share files based on the functions of FTP, Samba.
    - Supports DHCP, Static IP, PPPoE, PPTP and L2TP broadband functions.
    - Provides WPA/WPA2 mixed security.
    - Connects to a secure network easily and fast using WPS.
    - QoS: Bandwidth Control based on IP address.
    - Supports IP/Port filtering, MAC filtering, URL filtering and Port Forwarding.
    - Multi-SSID function enables users to create multiple Wi-Fi networks.
    - Easy setup with smartphone UI simplifies the basic settings.
    - APP Management
    Hardware

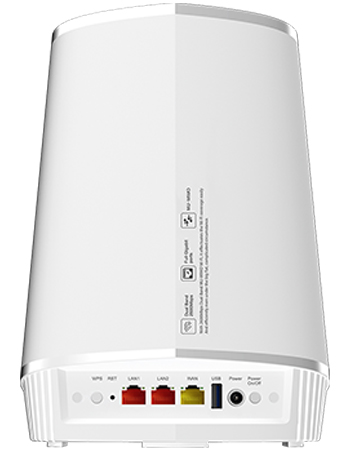

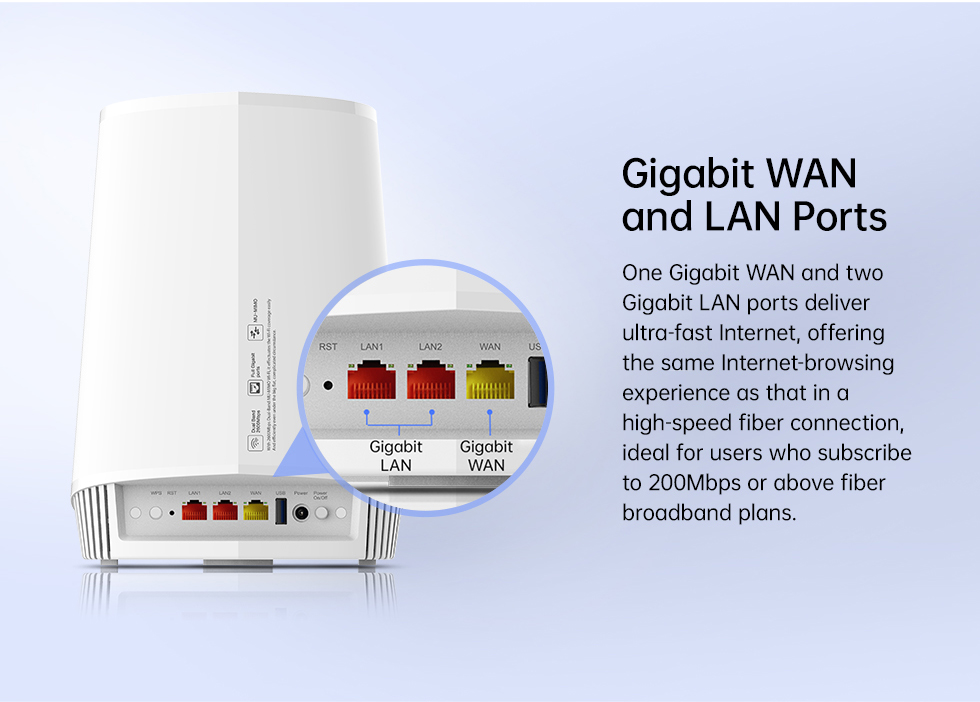

    Interface
    - 2 * 1000Mbps LAN Ports
    - 1 * 1000Mbps WAN Port
    - 1 * USB3.0 Port
    Power Supply
    - 12VDC/2A
    Button
    - 1 * RST Button
    - 1* WPS Button
    - 1* Power On/Off Button
    LED
    - 1 * SYSTEM  LED
    Antenna
    - 6 * internal antennas (2.4G/5G)
    Dimensions (L x W x H)
    - 180 x 120 x 256mm
    Wireless
    Standards
    - IEEE 802.11ac,
    - IEEE 802.11a,
    - IEEE 802.11b,
    - IEEE 802.11g,
    - IEEE 802.11n
    RF Frequency  - 2.4GHz/5GHz
    Data Rate
    - 2.4GHz: Up to 800Mbps
    - 5GHz: Up to 1733Mbps
    EIRP
    - 2.4GHz < 20dBm
    - 5GHz < 20dBm
    Wireless Security
    - WPA/WPA2 Mixed
    Reception Sensitivity
    - 2.4G:11b 11M：-81dBm@8% PER
              11g 54M：-68dBm@10% PER
              11n HT20 MCS7：-65dBm@10% PER
                    HT40 MCS7：-62dBm@10% PER

    - 5G: 11a 54M：-68dBm@10% PER
            11n HT20 MCS7：-65dBm@10% PER
                   HT40 MCS7：-62dBm@10% PER
           11ac VHT80 MCS9：-51dBm@10% PER
    Software
    Home
    - Quick Setup
    - Basic setup
    - Advanced setup
    - QR Code
    - LED
    - Logout
    - Reboot
    Network
    - WAN Setting
    - LAN Setting
    - DDNS Setting
    - IPTV Setting
    - IPv6 Setting
    WAN Type
    - Static IP, DHCP, PPPoE/Russia PPPoE, PPTP/Russia PPTP, L2TP/Russia L2TP
    Wireless
    - Basic setup
    - Guest Network(Multiple SSID)
    - Wireless Schedule
    - Access Control
    - Advanced setup
    Parental Control
    - Internet time control based on MAC
    QoS
    - Up/Down speed control on WAN, Bandwidth control based on IP address
    Device management
    - Static Router
    - Routing Table
    - IP/MAC Binding
    Security
    		 - MAC Filtering
    - IP/Port Filtering
    - URL Filtering
    NAT

    - Virtual Server(Port Forwarding)
    - DMZ
    - VPN passthrough
    VPN Sever
    		 - PPTP VPN
    - L2TP VPN
    - Open VPN
    Storage
    - DLNA
    - Samba
    - FTP
    Tools
    - Upgrade Firmware
    - Time Setup
    - Remote management
    - Password Settings
    - Reboot Schedule
    - System Log and so on

    Others
    Package Contents
    - A7100RU Wireless Router *1
    - Power Adapter *1
    - Ethernet Cable *1
    - Quick Installation Guide *1
    Environment
    - Operating Temperature: 0℃~50 ℃ (32 ℉~122℉)
    - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
    - Operating Humidity: 10%~90% non-condensing
    - Storage Humidity: 5%~90% non-condensing
