GH4202

300Mbps Wireless VoIP GPON Router








  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs

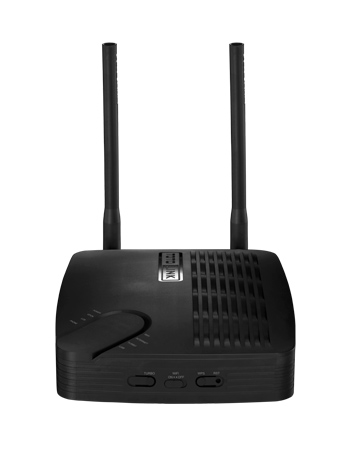

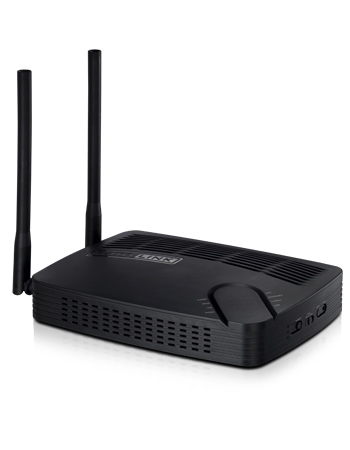

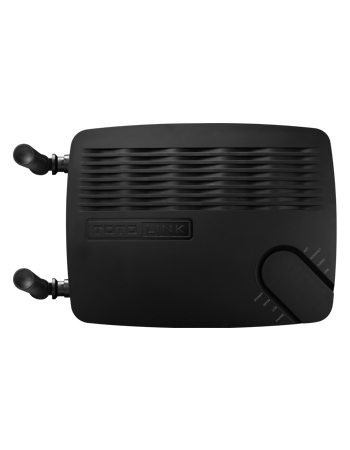

    • GH4202 is a next generation Gigabit Passive Optical Network(GPON) Integrated Access Device (IAD), designed for Fiber to The Home(FTTH) requirement. It is an incredibly robust all-in-one device allowing you to access high speed Internet via GPON port and share 300Mbps Wi-Fi speed. With one FXS port, users can make VoIP calls easily by connecting the device to existing telephone set.

    - Complies with ITU-T G.984.1, ITU-T G.984.2, ITU-T G.984.3 and ITU-T G.984.4.

    - 1*SC/UPC GPON interface, 3*gigabit LAN ports, 1*gigabit port for IPTV, 1*FXS port for VoIP.

    - Up to 300Mbps data rate for Wi-Fi network.

    - One USB2.0 port for easy file sharing.

    - Provides 64/128-bit WEP,  WPA / WPA2 and WPAPSK / WPA2PSK security.

    - Downstream rate up to 2.5Gbps and upstream rate up to 1.25Gbps.

    - Supports GPON adaptive mode to meet different FTTH requirement.

    - Supports OMCI (ONT Management Control Interface) remote management.

    - Supports VoIP calls.

    - High speed data forwarding.

    - Supports remote diagnosis to accurate locate error.

    HARDWARE FEATURES

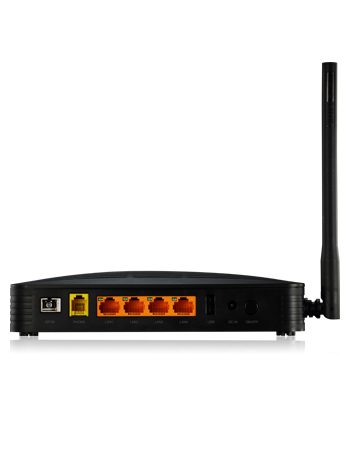

    Interface  4*10/100/1000Mbps LAN ports
      1 *SC/UPC GPON port
      1 *VoIP port
      1*USB2.0 port
    Power Supply  12V DC / 1.5A
    Button  1 *Power ON/OFF button
      1 *Wi-Fi ON/OFF button
      1 *Turbo button
      1 *WPS button
      1 *Reset button
    LED Indicators  1 *Power, 1 *GPON, 1*Wireless, 1*Phone, 4*LANs, 1*LOS, 1*USB, 1*Turbo, 1*Internet
    Data Rate  Upstream: 1.25Gbps
      Downstream: 2.5Gbps
    GPON Standards  ITU-T G.984.1, G.984.2, G.984.3, G.984.4
    Distance   Up to 20Km
    Dimensions (L x W x H)  7.9 x 5.9 x 1.6 in. (202 x 149.8 x 41.5 mm)
    Standards  IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
    RF Frequency  2.4~2.4835GHz
    Data Rate  Up to 300Mbps
    EIRP  < 20dBm
    Wireless Security  64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
    Wireless Functions  Basic Setting, WDS Bridge, WMM
    WIRELESS FEATURES
    Standards  IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
    RF Frequency  2.4~2.4835GHz
    Data Rate  Up to 300Mbps
    EIRP  < 20dBm
    Wireless Security  64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
    Wireless Functions  sic Setting, WDS Bridge, WMM
    SOFTWARE FEATURES
    Quality of Service  Distinguishes priority, Different Transmission Queues
    Security  MAC / IP / URL Filtering, Denial of Service, SYN Flooding,
    WAN Connection Type  PPPoE/DHCP/Static IP
    IPv6  IPv6 and IPv4 dual stack
    Management  OMCI Management, Web Based Configuration, Firmware
    VoIP Standard  SIP (RFC3261), ITU-T G.729, G.711a/u, G.711
    VoIP Function  VoIP Calls, Fax
    Package Contents  GH4202 GPON Router *1
      Power Adapter *1
      Ethernet Cable *1
    Environment  Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
      Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~90% non-condensing
