P1000

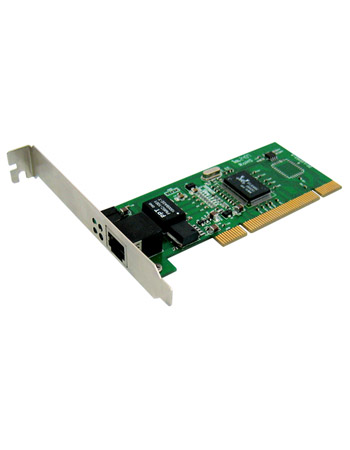

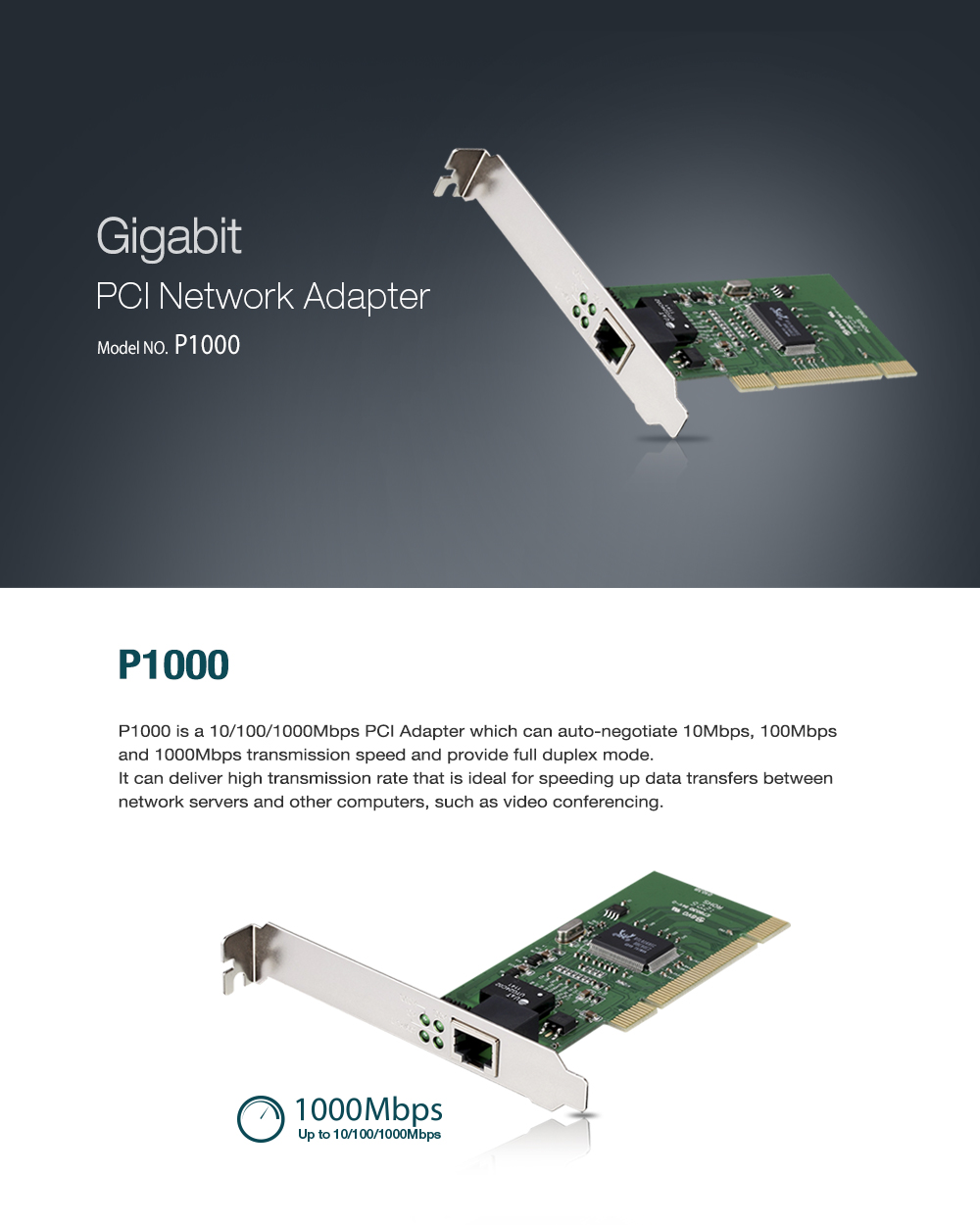

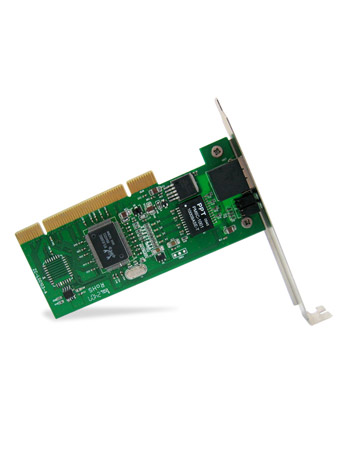

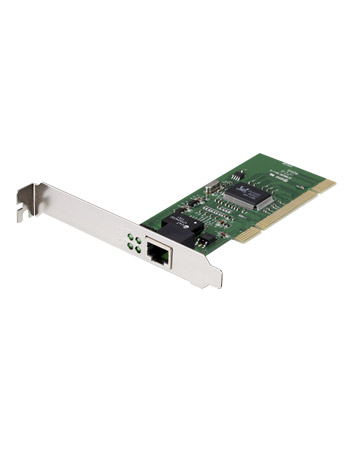

Gigabit PCI Network Adapter








  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs

    • - Complies with IEEE 802.3/802.3u/802.3ab standards.

    - Integrates 10/100/1000Mbps transceiver.

    - Supports PCI 2.2, 32-bit, 33/66MHz.

    - Crossover Detection & Auto-correction.

    - Supports wake-on-LAN and remote wake-up.

    - Supports Full Duplex flow control (IEEE8.2.3x).

    - Supports transmission/receiving FIFO (8K/64K).

    - Supports Windows 10/8/7/XP/Vista and Mac OS.

    HARDWARE FEATURES
    Standards  IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
    Port  1*10/100/1000Mbps STP / UTP port
    Transmission Rate  10/100/1000Mbps for Full-Duplex mode
    Network Interface  PCI
    LED Indicator  1*10M (Link/Activity/Speed) LED
      1*100M (Link/Activity/Speed) LED
      1*1000M (Link/Activity/Speed) LED
      1*LINK/AC
    Operating System  P1000 Network Adapter *1
      Resource CD *1
    System Requirement  Windows 10 (32/64bits), Windows 8 (32/64bits), Windows 7 (32/64bits), Windows XP (32/64bits)
      Mac OS X 10.4
    Environment  Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
      Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~90% non-condensing
