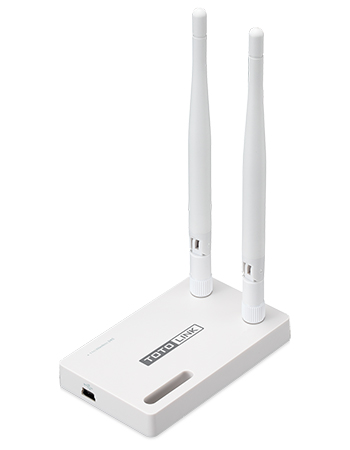

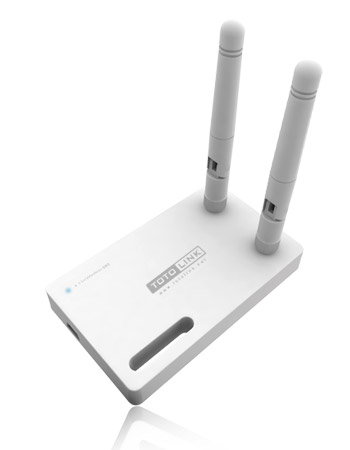

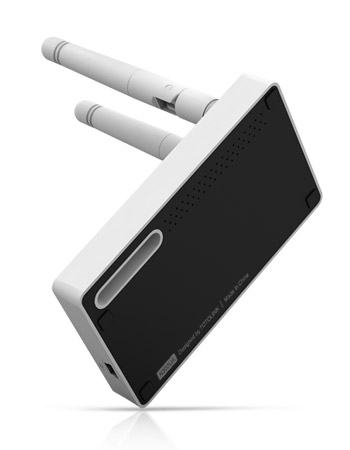

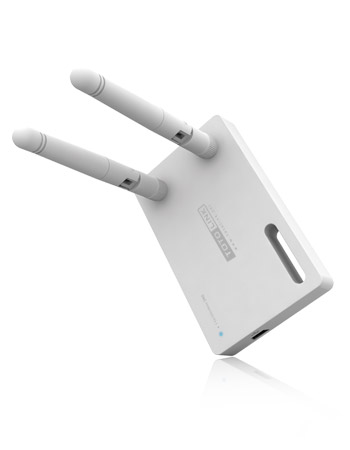

N300UA

300Mbps Wireless N USB Adapter

- High Speed Performance
- Two Detachable Antennas
- One Click Wi-Fi Protected Setup

N300UA is a Wireless USB Adapter which complies with IEEE 802.11n standard and can deliver up to 300Mbps high-speed wireless data rate. One WPS (Wi-Fi Protected Setup) button allows you to establish high security connection by fast-click. So it is a ideal PC solution to access fast WLAN network.

High Speed Performance
Complying with 802.11n standard, N300UA provides up to 300Mbps wireless transfer rate for users to enjoy the best Wi-Fi connection with stable throughput.

Two Detachable Antennas
With two detachable 4dBi antennas. N300UA provides more stable Wi-Fi connection and wider coverage.

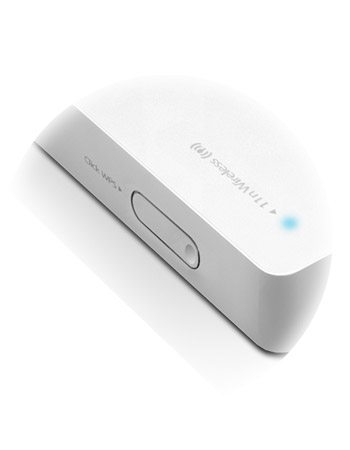

One Click WiFi Protected Setup
To secure wireless connection, the adapter provides a WPS button so that users can easily setup a wireless connection with protection just by one click.

HARDWARE FEATURES
Interface	Mini USB2.0 interface
LED Indicator	1 *Status
Button	1 *WPS Button
Antenna	2 *4dBi detachable antennas

WIRELESS FEATURES
Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
RF Frequency	2.4~2.4835GHz
Data Rate	802. 11n: Up to 300Mbps
	802.11g: Up to 54Mbps (dynamic)
	802.11b: Up to11Mbps (dynamic)
Wireless Security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
EIRP	< 20dBm (EIRP)
Reception Sensitivity	270M: -61dBm@10% PER
	135M: -65 dBm@10% PER
	54M: -68 dBm@10% PER
	11M: -85 dBm@8% PER
	6M: -88 dBm@10% PER
	1M: -90 dBm@8% PER
Others	-
Package Contents	N300UA Wireless Adapter *1
	4dBi antenna *2
	Resource CD *1
	USB Cable
	Quick Installation Guide *1
System Requirement	Windows 10 (32/64bits), Windows 8 (32/64bits),Windows 7 (32/64bits), Windows XP (32/64bits)
	Mac OS X 10.3~10.6
Environment	Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
	Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
	Operating Humidity: 10%~90% non-condensing
	Storage Humidity: 5%~90% non-condensing
