X3000PX

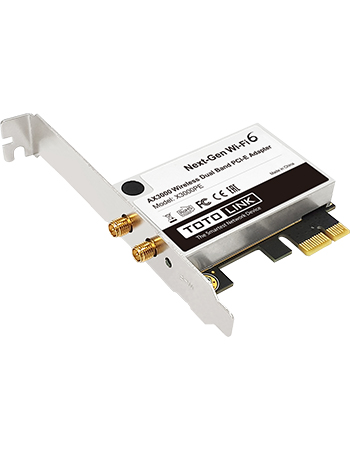

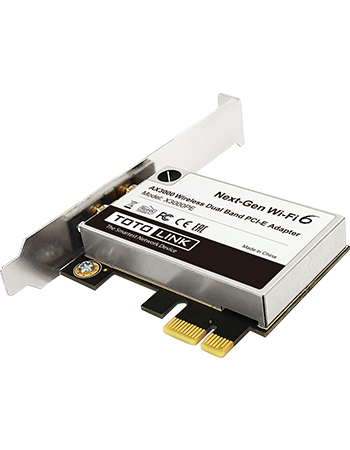

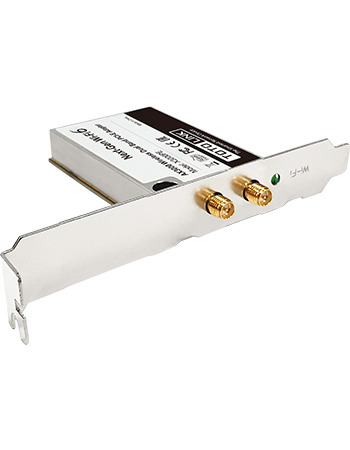

AX3000 Wireless Dual Band PCI-E Adapter

  • - 3000Mbps High Speed
    - Intel® Wi-Fi 6 chipset
    - Bluetooth 5.0 and downward capability BT 4.2/4.0
    - Next Generation 11AX Standard
    - Low Power and 28*nm Process
    - External Omni-directional Antenna, Wide Wi-Fi Coverage

  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs
    • -  Comply with IEEE 802.11 ax/ ac/a/b/g/n standards.
    -  Up to 3000Mbps transmission rate for Wi-Fi network on both 2.4GHz(574Mbps) and 5GHz(2402Mbps).
    -  Reliable Connections—Intel® Wi-Fi 6 chipset.
    -  Support Bluetooth 5.0, including 2× faster speed and 4× broader coverage compared with Bluetooth 4.2.
    -  Two external high gain antennas improve the sensitivity of signal transmission and reception.
    -  Highest Multi-client performance with DL/UL MU-MIMO allows to choose the optimal Wi-Fi.
    -  1024-QAM high data rate Modulation delivers powerful, continuous Wi-Fi to fully unlock the potential of Wi-Fi 6 router.
    -  High Speed PCI-e port provides stable Wi-Fi transmission.
    -  Support 64/128-bit WEP, WPA/WPA2 and WPA-PSK/WPA2-PSK encryption.
    -  Support Windows 10(64-bit) operating system.

    HARDWARE FEATURES

     Interface

    - PCI-E port

    - Bluetooth Header

    Chipset

    - Intel Wi-Fi 6 Chipset

    Antenna

    - 2* 5dBi desktop antennas

    LED  Indicators

    - 1*Link

    - 1*ACT Green
    WIRELESS FEATURES
    Standards

    - IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a

    - Bluetooth 5.0/4.2/4.0
    RF Frequency

    - 2.4GHz/5GHz

    Bluetooth

    - Bluetooth 5.0 and downward capability BT 4.2/4.0
    Data Rate

    - 5 GHz

      11ax: Up to 2402 Mbps(dynamic)

      11ac: Up to 1733 Mbps(dynamic)

      11n: Up to 300 Mbps(dynamic)

      11a: Up to 54 Mbps(dynamic)



    - 2.4 GHz

      11ax: Up to 574 Mbps(dynamic)

      11n: Up to 300 Mbps(dynamic)

      11g: Up to 54 Mbps(dynamic)

      11b: Up to 11 Mbps(dynamic)

    Wireless Security

    - 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)

    Modulation Technology

    - DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM
     Others

    Package Contents

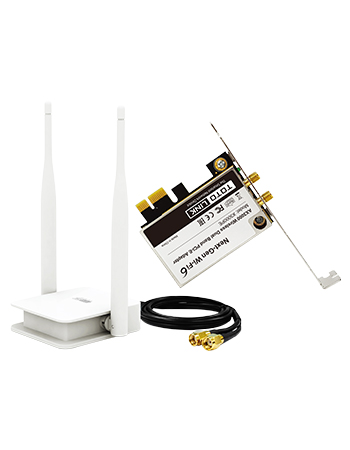

    - X3000PX Wireless Adapter *1

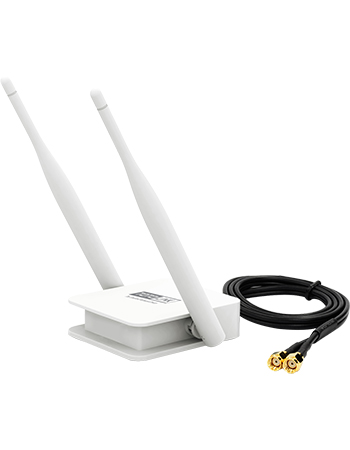

    - Desktop antenna *2

    - Resource CD *1

    - Low Profile Bracket *1

    - Bluetooth Header Cable*1

    - Quick Installation Guide *1

    System Requirement

    - Windows 10(64-bit) only

    Environment

    - Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)

    - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)

    - Operating Humidity: 10%~90% non-condensing

    - Storage Humidity: 5%~90% non-condensing
