A1900PE

AC1900 Wireless Dual Band PCI-E Adapter

  • - Next Generation AC Technology
    - Dual Band Capability
    - Three-in-one Integrated Desktop Antenna
    - Robust Security



  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs

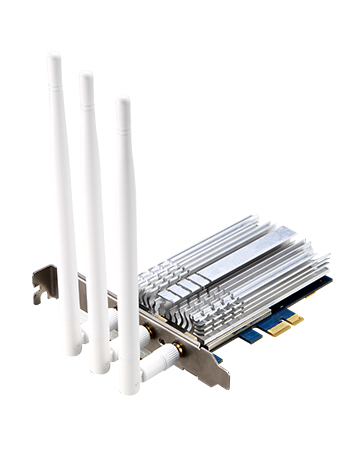

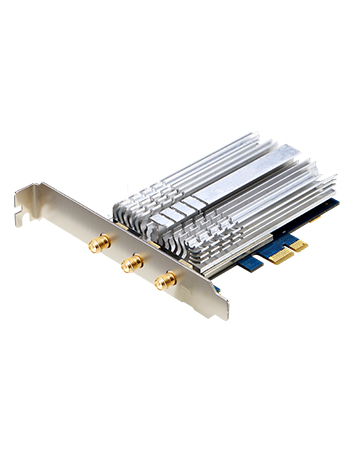

    • A1900PE is a wireless Dual Band PCI-E adapter which complies IEEE 802.11ac standard and can deliver up to 1900Mbps wireless data rate with 600Mbps on 2.4GHz and 1300Mbps on 5GHz. With PCI-E interface and three detachable high gain antennas, it is better for connecting a desktop computer to a wireless network with high speed and stability. Besides, it supports the most advanced WPA/ WPA2 encryption mode which makes wireless connection more secure.

    Next Generation AC Technology
    A1900PE is a high speed solution that complies with 802.11ac wireless technology, which enormously expanding data transmitting tunnel and faster than wireless N technology.

    Dual Band Capability
    The A1900PE allows users to connect to 2.4GHz band or 5GHz band to provide maximum speed up to 600Mbps on 2.4GHz and 1300Mbps on 5GHz.

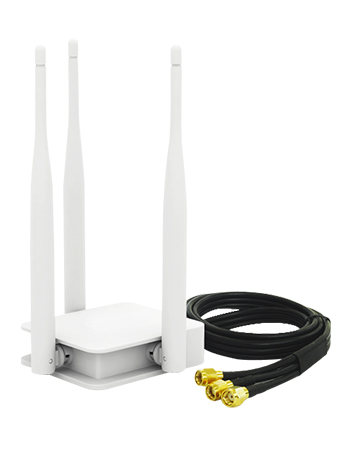

    Three-in-one Integrated Desktop Antenna
    Equipped with a three-in-one integrated desktop antenna and advanced MIMO technology, A1900PE provides extensive coverage and enhanced stability for wireless connection.

    Robust Security
    The most advanced WPA/WPA2 (TKIP/AES) encryption is provided to ensure the security of Wi-Fi connection.


    - Complies with 802.11ac/a/b/g/n standards.
    - 300Mbps on 2.4GHz and 1.3Gbps on 5GHz band simultaneously.
    - Five fixed high gain antennas with advanced MIMO technology.
    - Supports PPPoE, DHCP and Static IP broadband functions.
    - Five Gigabit Ethernet Ports ensure ultrafast data transmission rate.
    - Multi-SSID allows user to create multiple SSIDs according to their needs.
    - Provides 64/128-bit WEP, WPA, WPA2 and WPA-Mixed security.
    - Connects to secure network easily and fast using WPS.
    - Supports IP, MAC, URL filtering and Port Forwarding.
    - Universal repeater and WDS function for easy WiFi extension.
    - One USB3.0 port supports FTP Service, Samba Service,Torrent, URL Service, Media Server and USB Tethering.

    - The VPN server can not only protect the privacy of your information, but also simplify network management.

    Hardware
    Interface
    - PCI-E
    Antenna
    - 3* 5dBi desktop antennas
    LED Indicators  - 1* LINK, 1* ACT
    Wireless
    Standards
    - IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a
    RF Frequency
    - 2.4GHz/5GHz
    Data Rate
    - 2.4G: up to 600Mbps
    - 5G: up to 1300Mbps
    EIRP  - 2.4GHz < 20dBm
    - 5GHz < 20dBm
    Wireless Security
    - 64/128-bit WEP, WPA, WPA2, WPA-PSK, WPA2-PSK (TKIP/AES)
    Reception Sensitivity
    2.4G:11b 11M：-81dBm@8% PER
             11g 54M：-68dBm@10% PER
             11n HT20 MCS7：-65dBm@10% PER
              HT40 MCS7：-62dBm@10% PER

    5G: 11a 54M：-68dBm@10% PER
           11n HT20 MCS7：-65dBm@10% PER
           HT40 MCS7：-62dBm@10% PER
           11ac VHT80 MCS9：-51dBm@10% PER

    Others
    Package Contents
    - A1900PE Wireless Adapter *1
    - Desktop antenna *2
    - Resource CD *1
    - Low Profile Bracket *1
    - Quick Installation Guide *1
    System Requirement
    - Windows 10 (32/64bits), Windows 8 (32/64bits), Windows 7 (32/64bits),
    - Linux
    Environment
    - Operating Temperature: 0℃~50 ℃ (32 ℉~122℉)
    - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
    - Operating Humidity: 10%~90% non-condensing
    - Storage Humidity: 5%~90% non-condensing
