A1200PE

AC1200 Wireless Dual Band PCI-E Adapter

  • - Next Generation AC Technology
    - Dual Band Capability
    - 2 High Performance Antennas
    - Robust Security



  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs

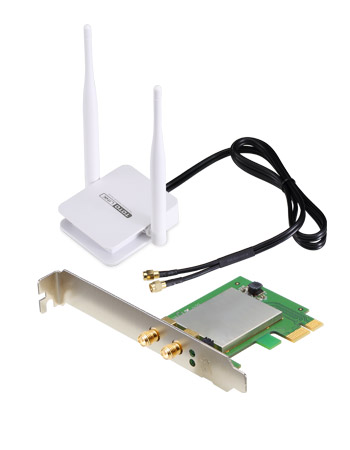

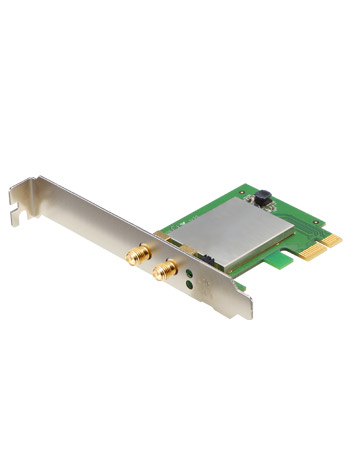

    • A1200PE is a wireless Dual Band PCI-E Adapter which complies IEEE 802.11ac standard and can deliver up to 1167Mbps wireless data rate with 300Mbps on 2.4G and 867Mbps on 5G. With PCI-E interface and two detachable high gain antennas, it is better for connecting a desktop computer to a wireless network with high speed and stability. Besides, it supports the most advanced WPA/ WPA2 encryption mode which makes wireless connection more secure.

    Next Generation AC Technology
    A1200PE is a high speed solution that complies with 802.11ac wireless technology, which enormously expanding data transmitting tunnel and faster than wireless N technology.

    Dual Band Capability
    The A1200PE allows users to connect to 2.4GHz band or 5GHz band to provide maximum speed up to 300Mbps on 2.4GHz and 867Mbps on 5GHz.

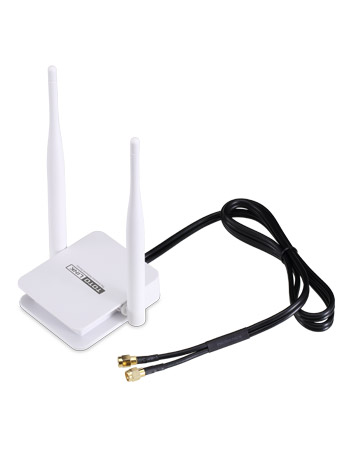

    2 High Performance Antennas
    Equipped with two detachable desktop antennas and advanced MIMO technology,  A1200PE provides extensive coverage and enhanced stability for wireless connection.

    Robust Security
    The most advanced WPA/WPA2 (TKIP/AES) encryption is provided to ensure the security of Wi-Fi connection.


    - IEEE 802.11ac/n/g/b/a, up to 867Mbps (5G) or 300Mbps (2.4G)
    - Two SMA interface, one integrated antenna.
    - Next generation 11ac WiFi for superior wireless performance.
    - Supports 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES) encryption.
    - Works with all existing network infrastructure.
    - Easy to configure and monitor.
    - Supports Window 10/8/7/Vista and Linux.


    Hardware
    Interface
    - PCI-E
    Antenna
    - 2* 5dBi desktop antennas
    LED Indicators  - 1* LINK, 1* ACT
    Wireless
    Standards
    - IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a
    RF Frequency
    - 2.4GHz/5GHz
    Data Rate
    - 2.4G: up to 300Mbps
    - 5G: up to 867Mbps
    EIRP  - 2.4GHz < 20dBm
    - 5GHz < 20dBm
    Wireless Security
    - 64/128-bit WEP, WPA, WPA2, WPA-PSK, WPA2-PSK (TKIP/AES)
    Reception Sensitivity
    - 2.4G:11b 11M：-81dBm@8% PER
              11g 54M：-68dBm@10% PER
              11n HT20 MCS7：-65dBm@10% PER
                    HT40 MCS7：-62dBm@10% PER

    - 5G: 11a 54M：-68dBm@10% PER
            11n HT20 MCS7：-65dBm@10% PER
                  HT40 MCS7：-62dBm@10% PER
            11ac VHT80 MCS9：-51dBm@10% PER

    Others
    Package Contents
    - A1200PE Wireless Adapter *1
    - Desktop antenna *2
    - Resource CD *1
    - Low Profile Bracket *1
    - Quick Installation Guide *1
    System Requirement
    - Windows 10 (32/64bits), Windows 8 (32/64bits), Windows 7 (32/64bits),
    - Linux
    Environment
    - Operating Temperature: 0℃~50 ℃ (32 ℉~122℉)
    - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
    - Operating Humidity: 10%~90% non-condensing
    - Storage Humidity: 5%~90% non-condensing
