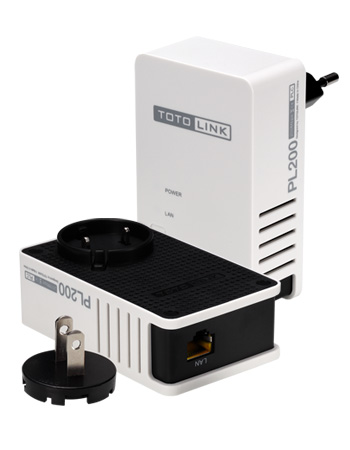

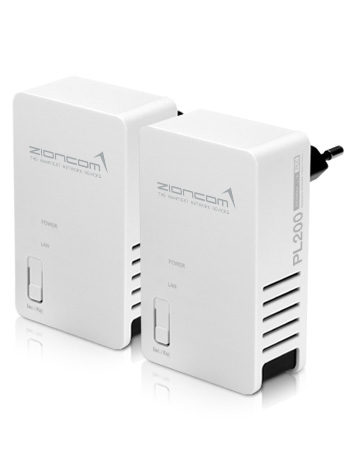

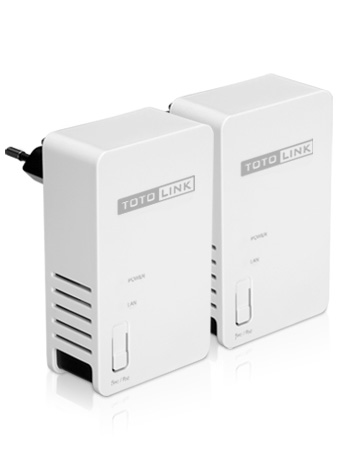

PL200 KIT

200Mbps Power Line Adapter

  • - No Wires, Easy-to-Setup
    - HomePlug AV Ethernet Bridge

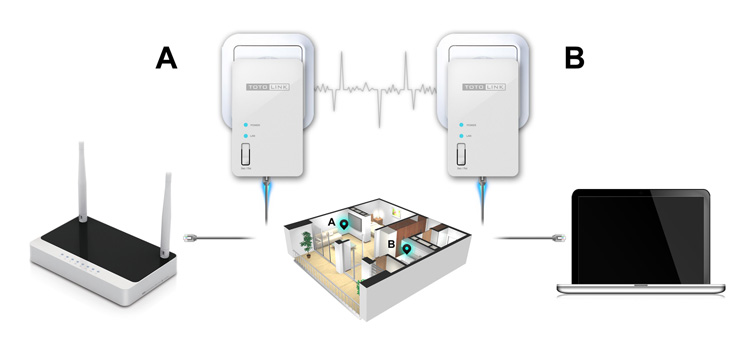

  • PL200 KIT includes two of the Power Line Adapters that allows users to turn their home’s wiring into a network just by plugging them into available wall outlets. It provides high speed data rate up to 200Mbps and coverage range up to 300 meters that won’t get any influence from obstacles. So it is applicable to a large area of housing and Small Enterprises Office area etc, providing simple and convenient, no radiation, scalable network solutions.













    No Wires, Easy-to-Setup

    With PL200 KIT working together, no wires are needed to extend your network throughout your house, more convenient and flexible deployment.





    HomePlug AV Ethernet Bridge

    High-speed Internet access can be easily achieved for your house by HomePlug AV Ethernet Bridge. By pressing the SEC/Rst button correctly, you can share the same electrical lines to other HomePlug AV Ethernet bridges.

    - Complies with Home Plug AV, IEEE 802.3 and IEEE 802.3u standards.

    - High-speed data rate up to 200Mbps.

    - Super small design with detachable power plug.

    - No need cables, using electrical wires.

    - Up to 300 meters range, excellent solution for wall and floor crossing.

    - Plug and Play, no configuration required.

    - Green product, power consumption reducing up to 65%.

    - Built-in QoS assures the quality of bandwidth sensitive applications such as voice, video and online games.

    HARDWARE FEATURES
    Interface  1*10/100Mbps Ethernet Port
    Power Supply  AC 100V~240V
    Dimensions  93mm x 56mm x 30mm(L x W x H)
    LED Indicators  1*Power, 1*LAN
    Standards  HomePlug AV, IEEE 802.3, IEEE 802.3u
    Data Rate  200Mbps over Powerline
    Modulation Type  OFDM/CCK/16-QAM/64-QAM
    Power Consumption  <4w
    Environment  Operating Temperature: 0℃~40℃ (32℉~104℉)
      Storage Temperature: -40~70℃ (-40℉~158℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~95% non-condensing
