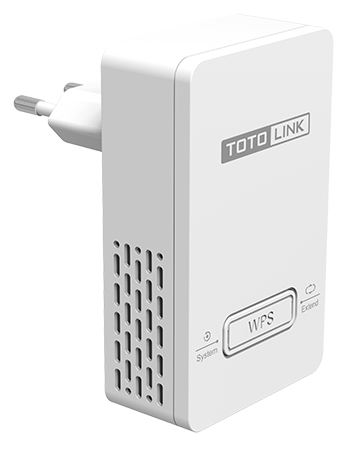

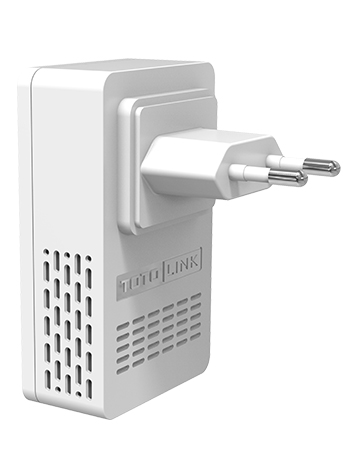

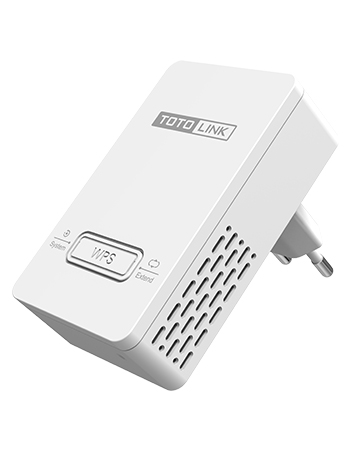

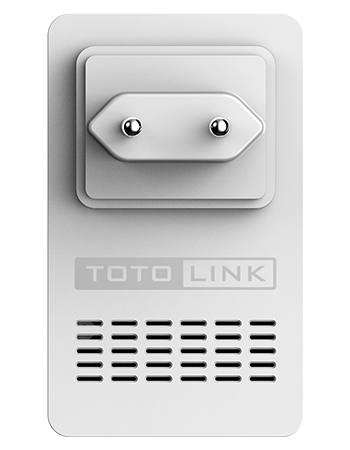

EX210

300Mbps Wireless N Range Extender

  • - 300Mbps Wireless Speed

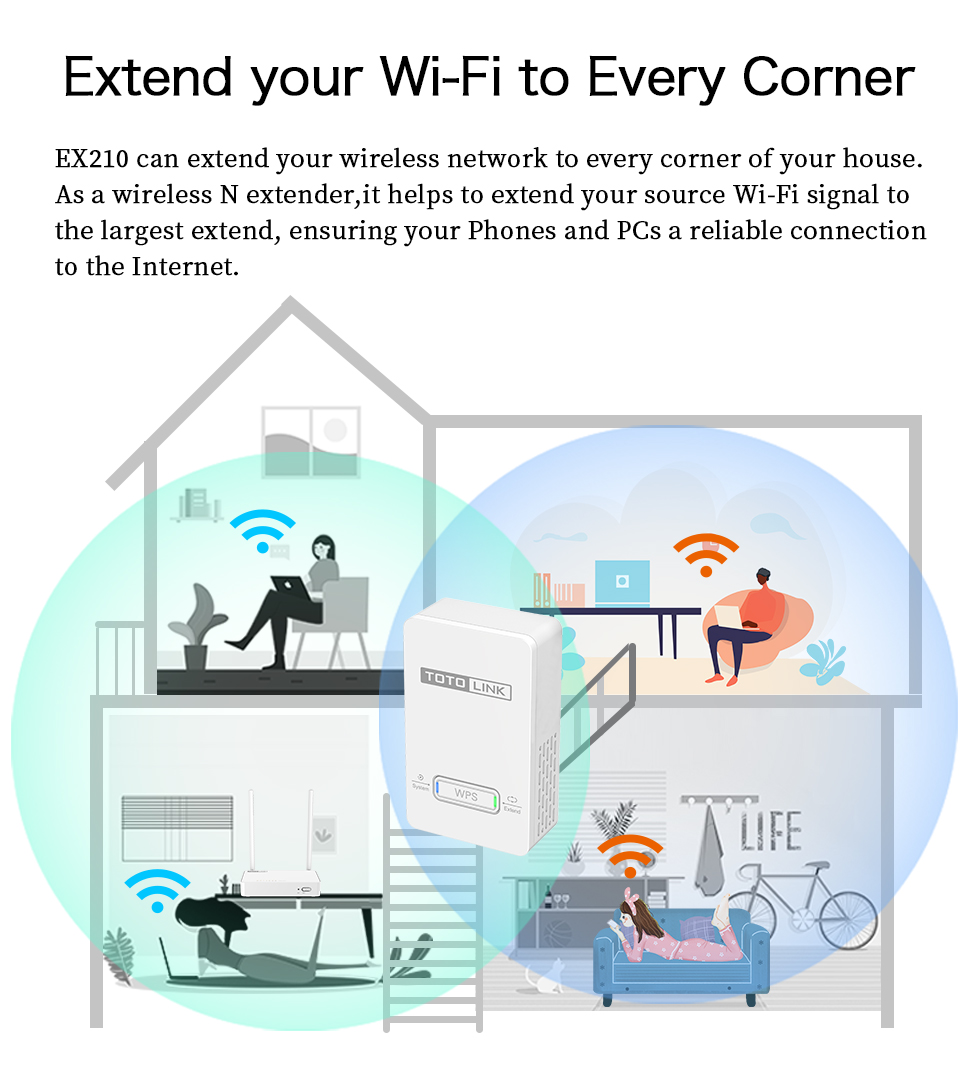

    - Extend your Wi-Fi to Every Corner

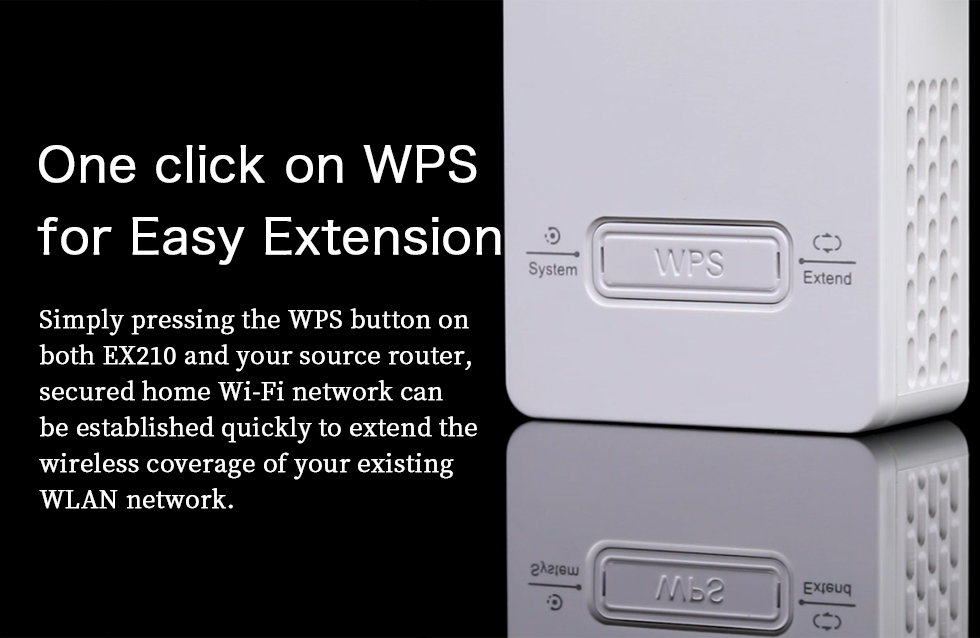

    - One click on WPS for Easy Extension
    - Smart Phone UI for Setup

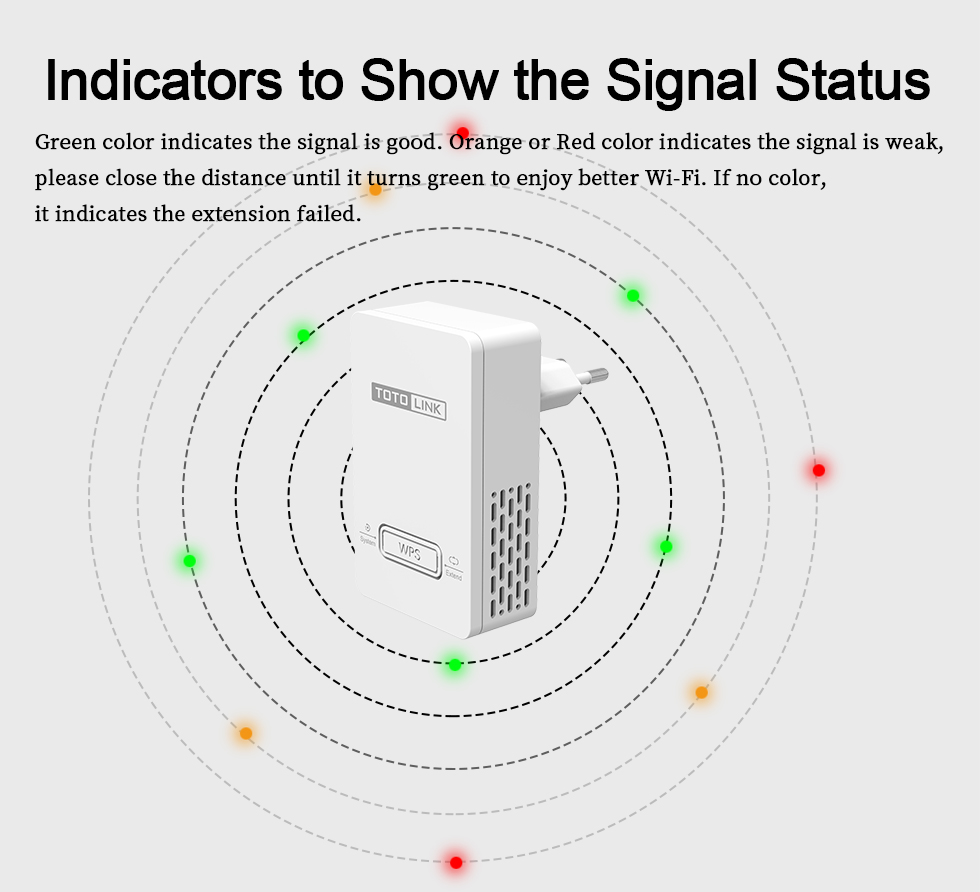

    - Indicators to Show the Signal Status


  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs
    • - Complies with 802.11b/g/n standards.
    - Up to 300Mbps date rate for Wi-Fi network.
    - Portable and compact design on structure.
     Supports quick setup on Phone UI page.
    - Supports WPS (Wi-Fi Protected Setup) Wi-Fi extension by one-click.
    - Indicators to show the signal status timely.
    Energy saving and environmental protection.
    - High performance antennas enhance the reception and transmission stability.

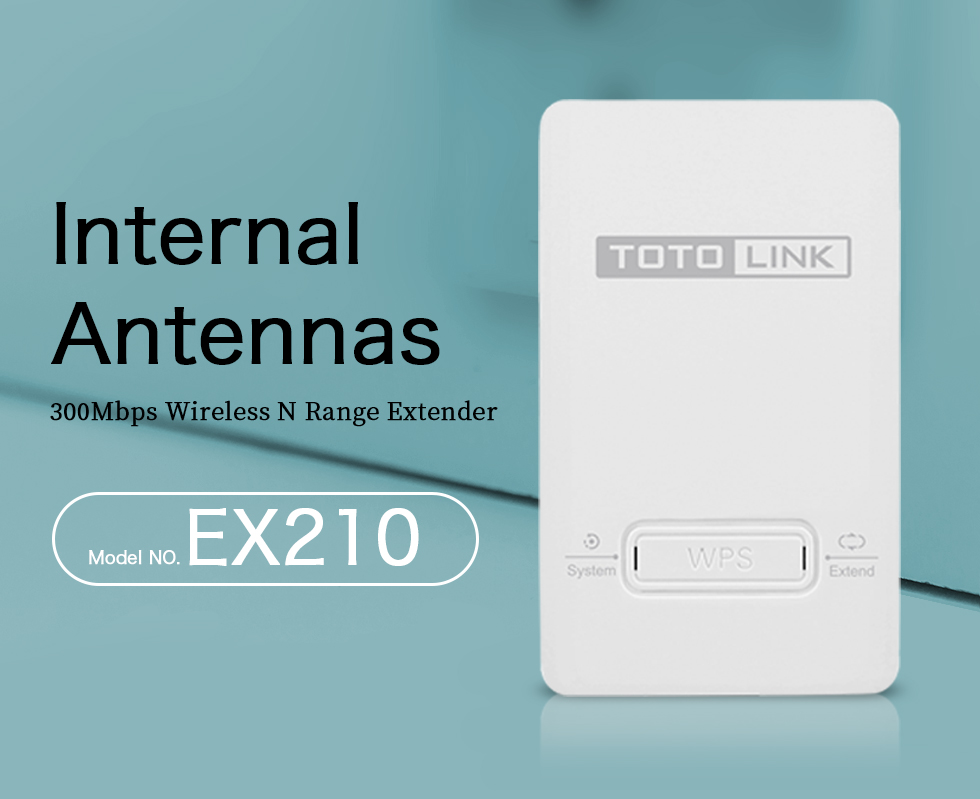

      (Note: EX201: external antennas; EX210: internal antennas)

    Hardware
    Interface  - NO
    Power Supply
    - AC 100~240V (built-in power module)
    Antenna
    - 2 *4dBi Internal Antennas
    Button  - 1 * WPS Button,

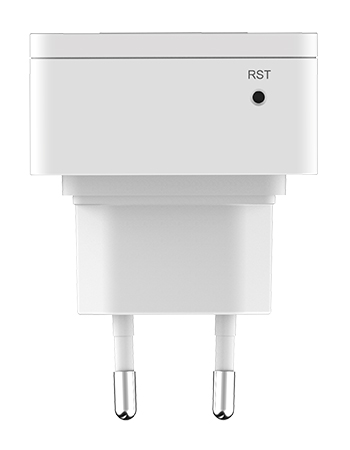

    - 1 * RST Button
    LED  Indicators

    - 1* SYS,
    - 1* Wi-Fi
    Dimensions (W x L x H)
    - 2.0 x 3.4 x 1.2 in. (52 x 85.7 x 30.9mm)
    Wireless
    Standards  - IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
    RF Frequency  - 2.4~2.4835GHz
    Data Rate  - Up to 300Mbps
    EVM
    (Error Vector Magnitude)
    - 11g: <-25dB; 11n:<-28dB
    Wireless Security
    - 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
    Others
    Package Contents

    - EX210 Wireless Extender *1
    - Quick Installation Guide *1
    Environment

    - Operating Temperature: 0℃~50 ℃ (32 ℉~122℉)
    - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
    - Operating Humidity: 5%~95% non-condensing
    - Storage Humidity: 5%~95% non-condensing
