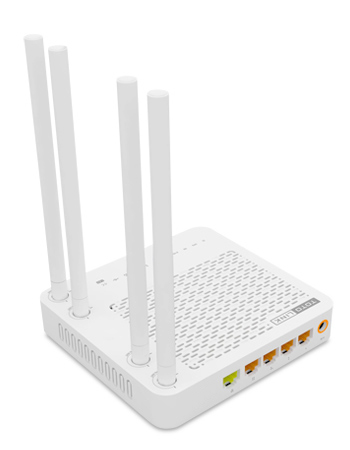

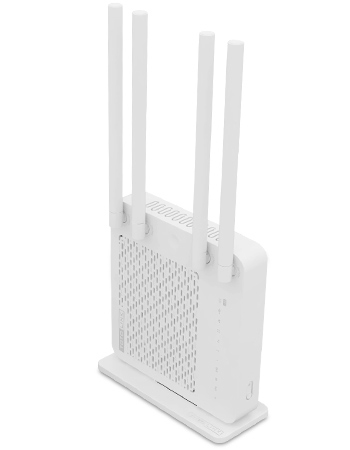

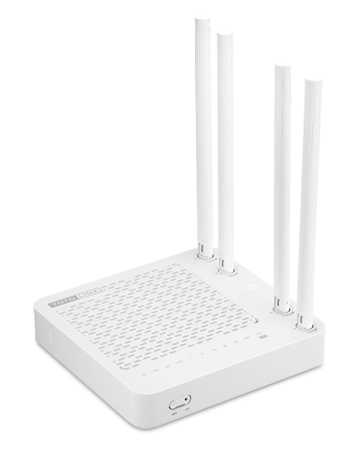

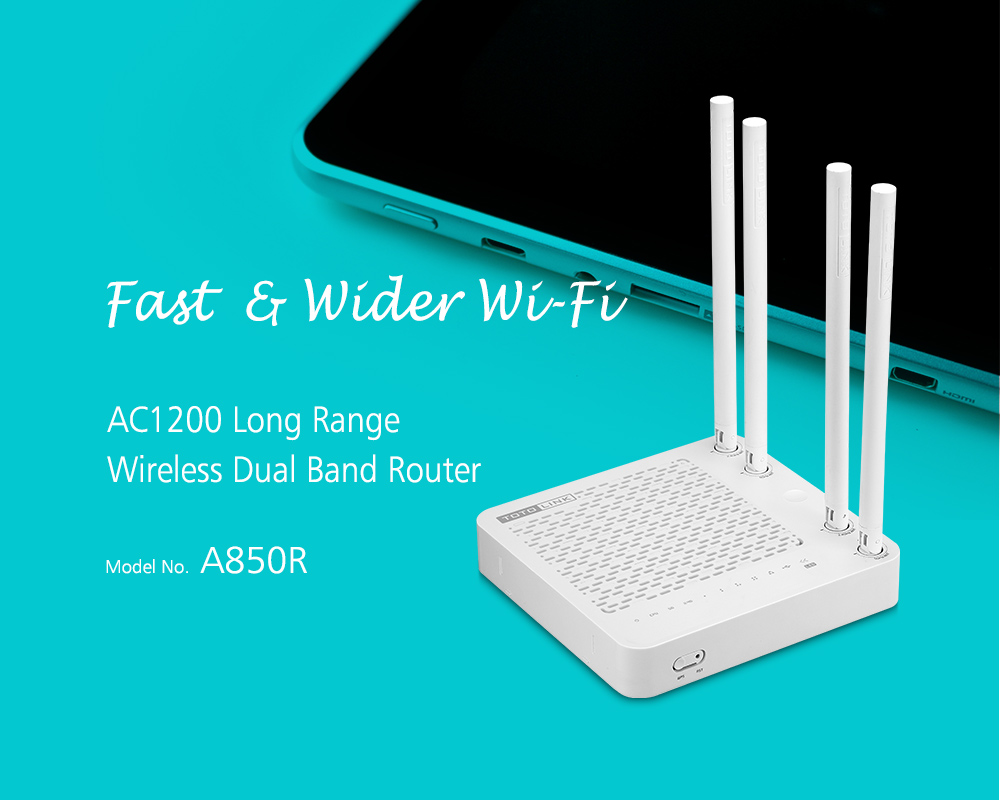

A850R

AC1200 Long Range Wireless Dual Band Router

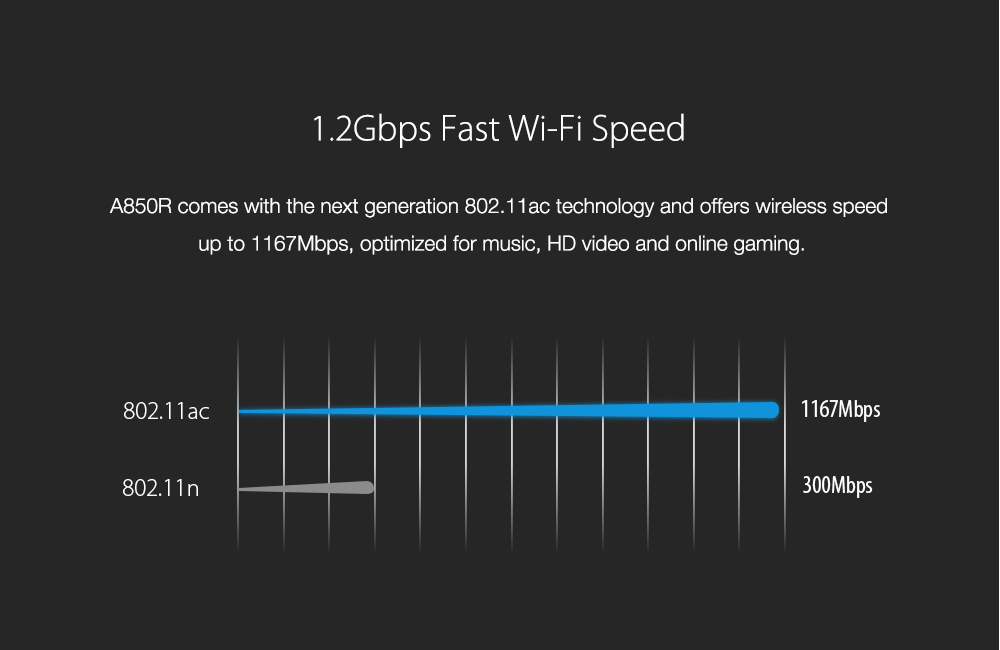

  • - 1.2Gbps Fast Wi-Fi Speed
    - Simultaneous Dual Band

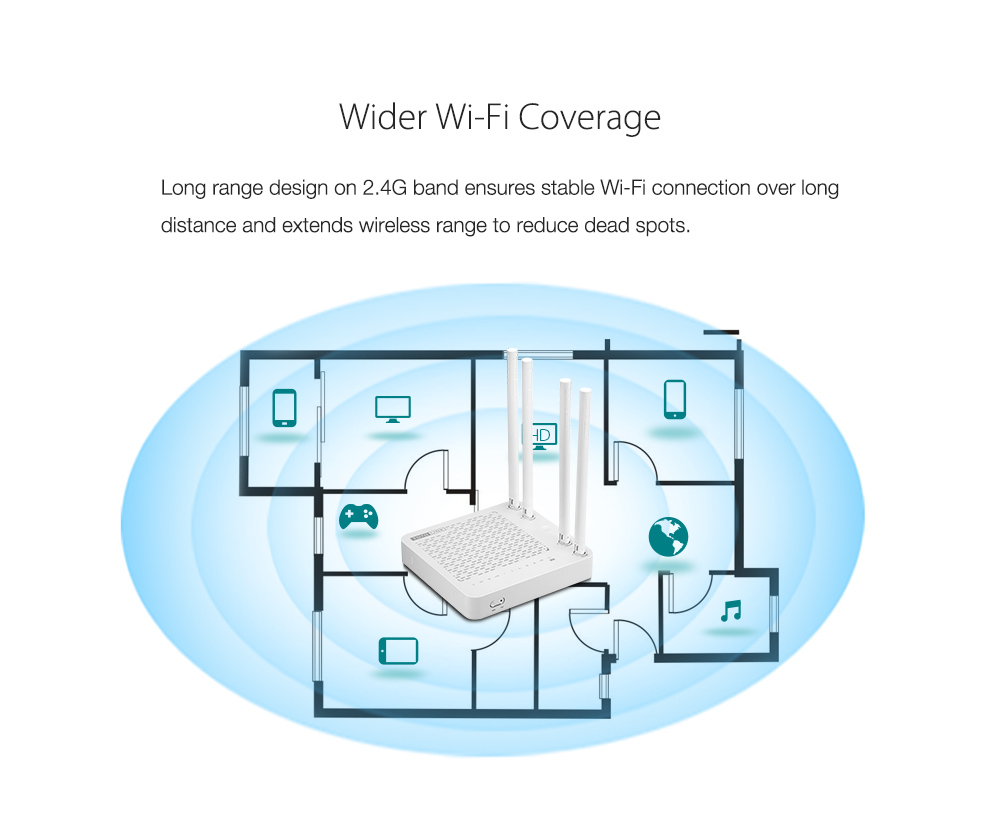

    - Wider Wi-Fi Coverage
    - Enjoy Your IPTV
    - Multiple Wireless Network for Access Control
    - Parental Control
    - Easy Setup
  • - Complies with the next generation 802.11ac Wi-Fi standard.
    - 867Mbps on 5GHz and 300Mbps on 2.4GHz band for total 1167Mbps simultaneously.
    - Long range design on 2.4GHz is perfect for long distance wireless transmission.
    - Supports DHCP, Static IP, PPPoE(dual access), PPTP(dual access), L2TP(dual access) broadband functions.
    - Provides 64/128-bit WEP, WPA, WPA2 and WPA/WPA2 (TKIP+AES) security.
    - Connects to secure network easily and fast using WPS.
    - QoS: Bandwidth Control based on IP/MAC.
    - Supports IP, MAC, URL filtering and Port Forwarding.
    - Universal Repeater and WDS function for easy Wi-Fi extension.
    - Multi-SSID allows users to create multiple Wi-Fi networks
    - Supports easy and fast IPTV settings.
    - Easy setup with auto popup window simplifies the basic settings.




    HARDWARE FEATURES
    Interface  4 *100Mbps LAN Ports
      1 *100Mbps WAN Port
    Power Supply  12V DC / 1A
    Button  1 *RST Button
      1*WPS Button
    LED Indicators  1 *Power, 1 *CPU, 1 *5G Wireless, 1 *2.4G Wireless, 4 *LAN, 1 *WAN
    Antenna  2 *5dBi fixed antennas (2.4G),2 *5dBi fixed antennas (5G)
    Dimensions  5.3 x 5.0 x 0.9 in.( 135.6 x 128 x 23.2mm)
    WIRELESS FEATURES
    Standards  IEEE 802.11ac, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g ,IEEE 802.11n
    RF Frequency  2.4GHz/5GHz
    Data Rate  2.4GHz: Up to 300Mbps
      5GHz: Up to 867Mbps
    EIRP  2.4GHz < 20dBm
      5GHz < 20dBm
    Wireless Security  64/128-bit WEP, WPA, WPA2 and WPA-Mixed
    Reception Sensitivity - 2.4G  11b 11M: - 85 dBm
      11g 54M: - 65 dBm
      11n HT20: - 65 dBm / HT40: - 61 dBm
    Reception Sensitivity - 5G  11a 54M : - 65 dBm
      11n HT20 MCS7: - 65 dBm / HT40 MCS7: - 61 dBm
      11ac VHT80 MCS9 : - 51 dBm / VHT40 MCS9: - 54 dBm / VHT20 MCS9: - 57 dBm
    SOFTWARE FEATURES
    Operation Mode  Wireless ISP Client Router
      Wireless Client
      Repeater(Range Extender)
      Router
      Bridge with AP
      Client
    WAN Type  DHCP/Static IP/PPPoE(dual access)/PPTP(dual access) /L2TP(dual access)
    Wireless Functions  Multiple SSID, MAC Authentication, Universal Repeater, WDS, WPS, IPTV
    Schedule  Reboot Schedule, Wireless Schedule
    Firewall  MAC Filtering, IP Filtering, Port Filtering, URL Filtering, Port Forwarding, DMZ
    Management  QoS, TR-069 config, DDNS, DoS, WMM, Access Control, etc.
    Others  1. Package Contents
      - A850R Wireless Router *1
      - Power Adapter *1
      - Ethernet Cable *1
      - Quick Installation Guide *1
      2. Environment
      - Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
      - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
      - Operating Humidity: 10%~90% non-condensing
      - Storage Humidity: 5%~90% non-condensing
