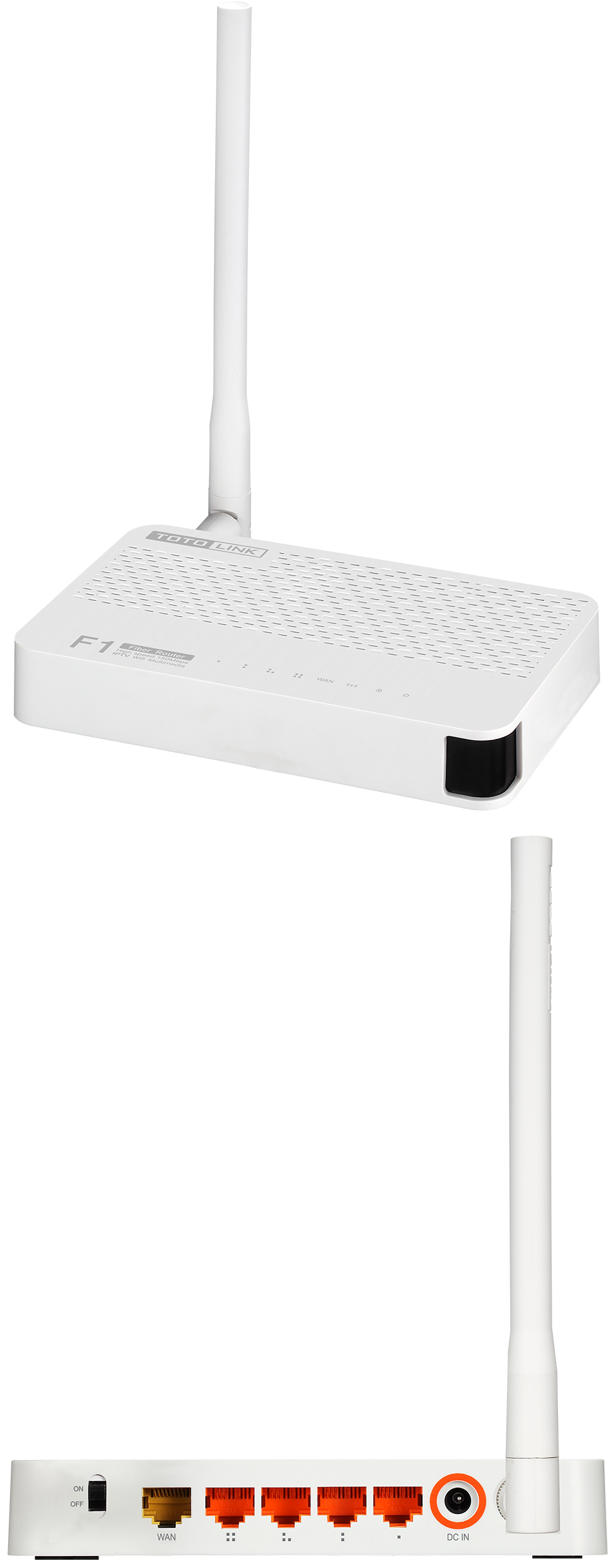

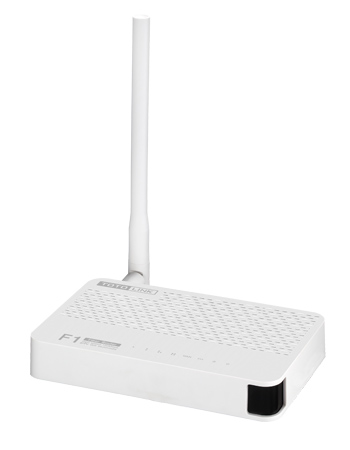

150Mbps Wireless N Fiber Router

  • - High-speed Fiber Optic Experience
    - Outstanding Bandwidth Control with QoS
    - VLAN for Amazing IPTV Experience
    - Multiple APs for Better Access Control

  • F1 is a wireless N Fiber Router with one high gain antenna. It allows users to access Internet by DHCP/PPPoE/Static IP/PPTP/L2TP and can deliver up to 150Mbps wireless data rate. With the fiber-optic WAN port, this device makes user access internet in an easy, enjoyable and secure way better than ever. Besides, it is good for simultaneously IPTV experience and Internet surfing via VLAN function. So it is a high performance and cost-effective solution for users connecting Internet by fiber-optic.


    High-speed Fiber Optic Experience
    The fiber-optic WAN port allows high speed Internet access, ideal for online surfing, video streaming and network gaming.


    Outstanding Bandwidth Control with QoS
    Intelligent QoS efficiently improves the bandwidth utilization and is better for network priority control.


    VLAN for Amazing IPTV Experience
    VLAN supported can effectively satisfy user’s individual requirement that if one of your family members want to watch IPTV but others want to surf Internet.


    Multiple APs for Better Access Control
    Multiple APs function is designed for users who want to set up extra wireless networks for guests or friends with better access control.

    - Complies with IEEE 802.11n/g/b standards for 2.4GHz Wireless LAN.
    - Up to 150Mbps data rate for Wi-Fi network.
    - One fiber WAN port for fiber optical network connection.
    - Supports PPPoE, DHCP, Static IP, PPTP and L2TP broadband functions.
    - Provides 64/128-bit WEP, WPA, WPA2 and WPA/WPA2 (TKIP+AES) security.
    - Multiple APs function allows users to add more SSIDs accordingly.
    - The IP, MAC, Port and URL filtering makes access and time control more flexibly.
    - Supports VPN Pass-Through based on IPSec/PPTP/L2TP/IPv6.
    - Repeater function expands the wireless coverage and allows more terminals to access Internet.
    - VLAN function makes the network management more secure and efficient.
    - QoS function allocates network bandwidth reasonably.

    Interface  4 *10/100Mbps LAN Ports
      1 *10/100Mbps Fiber WAN Port
    Power Supply  9V DC/0.8A
    Button  RST/WPS Button
      Power ON/OFF Button
    LED Indicators  1 *Power, 1 *CPU, 1 *Wireless, 1 *WAN, 4 *LAN
    Antenna  1 *5dBi Fixed Antenna
    Dimensions (L x W x H)  6.0 x 3.7 x 0.9 In (152 x 94 x 24mm)
    Standards  IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
    RF Frequency  2.4~2.4835GHz
    Data Rate  802.11n: Up to 150Mbps
      802.11g: Up to 54Mbps (dynamic)
      802.11b: Up to11Mbps (dynamic)
    EIRP  < 20dBm
    Wireless Security  64/128-bit WEP, WPA/WPA2 (AES/TKIP)
    Reception Sensitivity  135M: -65 dBm@10% PER
      54M: -68 dBm@10% PER
      11M: -85 dBm@8% PER
      6M: -88 dBm@10% PER
      1M: -90 dBm@8% PER
    Operation Mode  Wireless ISP Client Router
      Wireless Client
      Repeater(Range Extender)
      Router, Bridge with AP, Client
    WAN Type  DHCP/Static IP/PPPoE(Dual access)/PPTP(Dual access) /L2TP(Dual access)
    IPv6 Network  WAN Setting, LAN Setting, RADVD for IPv6, IPv6 Tunnel to IPv4
    Wireless Functions  Multiple SSID, MAC Authentication, Universal Repeater, WDS,
      WPS, IPTV
    Schedule  Reboot Schedule, Wireless Schedule
    Firewall  SPI Firewall, MAC Filtering, IP Filtering, Port Filtering,
      URL Filtering, Port Forwarding, DMZ, NAT Mapping
    Management  QoS, TR-069 config, DDNS, SNMP, DoS, Notice Setting,
      Access Control, Refresh Buffer Memory etc.
    Package Contents  F1 Wireless Router *1
      Power Adapter *1
      Ethernet Cable *1
      Quick Installation Guide *1
    Environment  Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
      Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~90% non-condensing
