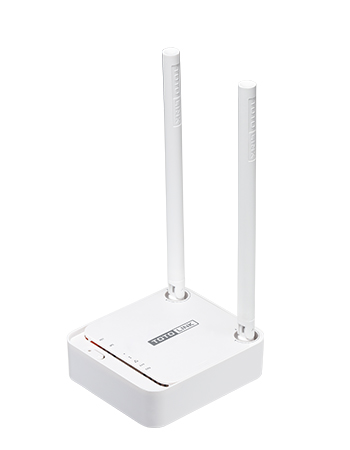

N200RE-V3

300Mbps Mini Wireless N Router

  • - 300Mbps Wireless Speed

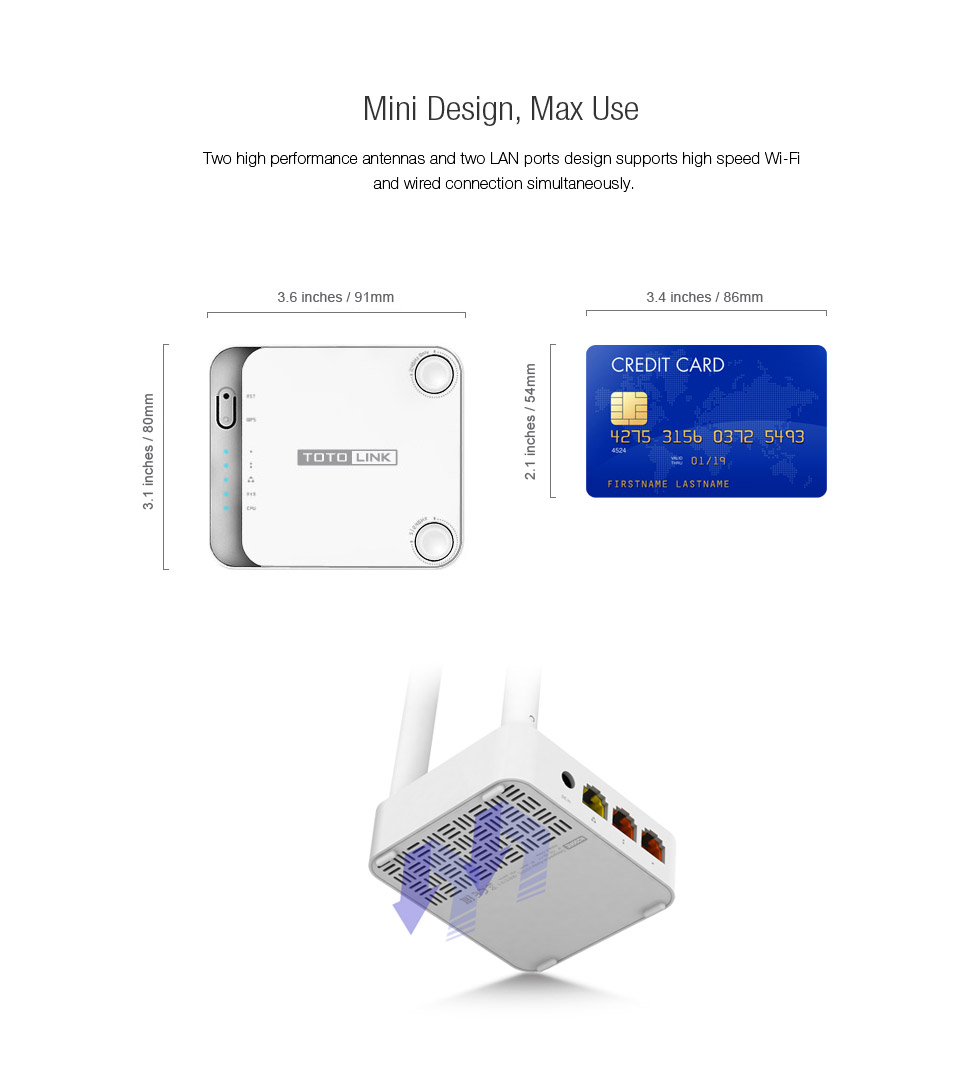

    - Mini Design, Max Use
    - Easy Setup
    - Enjoy Your IPTV
    - Multiple Wireless Networks for Access Control
    - Advanced Security
    - Parental Control
    - IPv6 Ready
  • - Complies with IEEE 802.11n/g/b standards for 2.4GHz Wireless LAN.

    - Up to 300Mbps data rate for Wi-Fi network.

    - Supports  DHCP, Static IP, PPPoE(dual access), PPTP(dual access), L2TP(dual access) broadband functions.

    - Provides 64/128-bit WEP, WPA, WPA2 and WPA-Mixed security.

    - Connects to secure network easily and fast using WPS.

    - Supports IP, Port, MAC, URL filtering and Port Forwarding.

    - QoS: Bandwidth Control based on IP/MAC.

    - Multi-SSID allows user to create multiple SSIDs according to their needs.

    - Supports VLAN function for IPTV and other internet services.

    - Universal repeater and WDS function for easy Wi-Fi extension.

    - Supports TR-069 protocol for remote centralized management.


    HARDWARE FEATURES

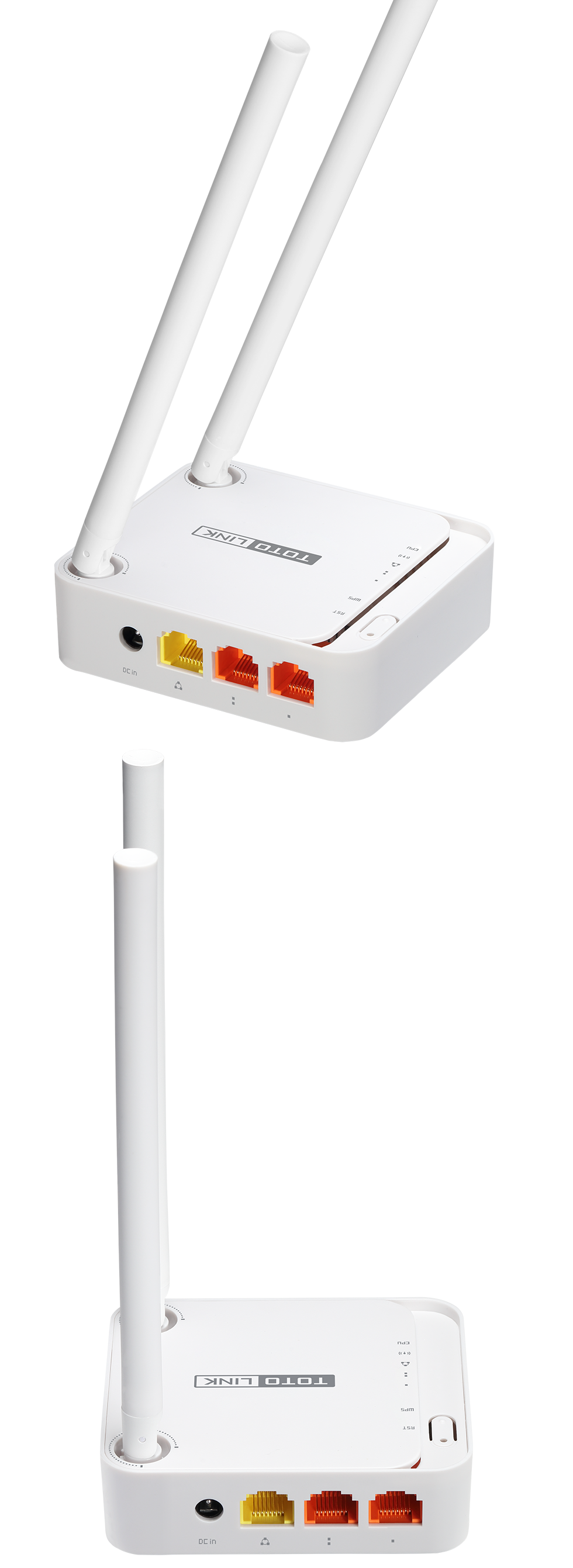

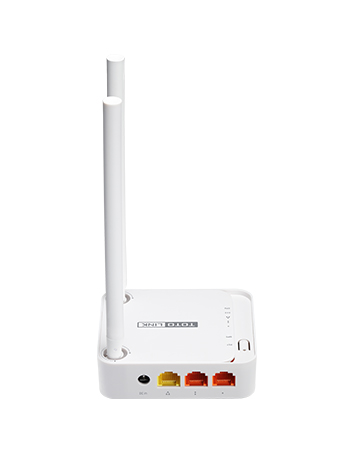

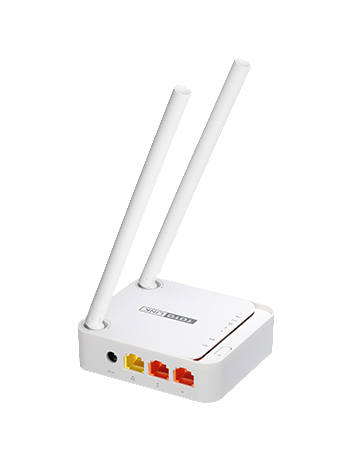

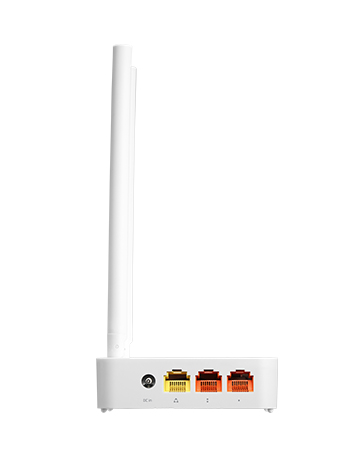

    Interface  2 *10/100Mbps LAN Ports
      1 *10/100Mbps WAN Port
    Power Supply  9V DC/0.5A
    Antenna  2 *5dBi fixed antennas
    Button  1 *RST Button
      1 *WPS Button
    LED Indicators  1 *CPU, 1 *Wireless, 1 *WAN, 2 *LANs
    Dimensions(L x W x H)  3.6 x 3.1 x 1.0 in. ( 91 x 80 x 25 mm)
    WIRELESS FEATURES
    Standards  IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
    RF Frequency  2.4~2.4835GHz
    Data Rate  802. 11n: Up to 300Mbps
      802.11g: Up to 54Mbps (dynamic)
      802.11b: Up to11Mbps (dynamic)
    EIRP  < 20dBm
    Wireless Security  64/128-bit WEP, WPA/WPA2 and WPA-Mixed
    Reception Sensitivity  270M: -61 dBm@10% PER
      135M: -65 dBm@10% PER
      54M: -68 dBm@10% PER
      11M: -85 dBm@8% PER
      6M: -88 dBm@10% PER
      1M: -90 dBm@8% PER
    SOFTWARE FEATURES
    Operation Mode  Wireless ISP Client Router
      Wireless Client
      Repeater(Range Extender)
      Router
      Bridge with AP
      Client
    Network  VLAN, IPv6
    WAN Type  DHCP/Static IP/PPPoE(dual access)/PPTP(dual access) /L2TP(dual access)
    Wireless Functions  Multiple SSID, MAC Authentication, Universal Repeater, WDS,WPS
    Schedule  Reboot Schedule, Wireless Schedule
    Firewall  MAC Filtering, IP Filtering, Port Filtering, URL Filtering, Port Forwarding, DMZ
    Management  Firmware Upgrade, QoS, TR-069 config, DDNS, Access Control
    Others
    Package Contents  N200RE-V3 Wireless Router *1
      Power Adapter *1
      Ethernet Cable *1
      Quick Installation Guide *1
    Environment  Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
      Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~90% non-condensing


    Firmware

    Model Download Version Updated
    N200RE-V3 N200RE-V3.2.0-B20171114.zip V3.2.0 2017-12-01
    N200RE-V3 N200RE-V3_V3.1.2_20170526.zip V3.1.2 2017-06-02



    Model Download Version Updated
    N200RE-V3 N200RE-V3_datasheet_V1.pdf Ver1.0 2016-11-19

    Quick Install Guide

    Model Download Version Updated
    N200RE-V3 N200RE-V3 QIG ver1.0.pdf ver1.0 2016-11-19


    Model Download Version Updated
    N200RE-V3 N200RE-V3_Photo005.jpg Resolution 1200×1200 2016-11-19
    N200RE-V3 N200RE-V3_Photo004.jpg Resolution 1200×1200 2016-11-19
    N200RE-V3 N200RE-V3_Photo003.jpg Resolution 1200×1200 2016-11-19
    N200RE-V3 N200RE-V3_Photo002.jpg Resolution 1200×1200 2016-11-19
    N200RE-V3 N200RE-V3_Photo001.jpg Resolution 1200×1200 2016-11-19
