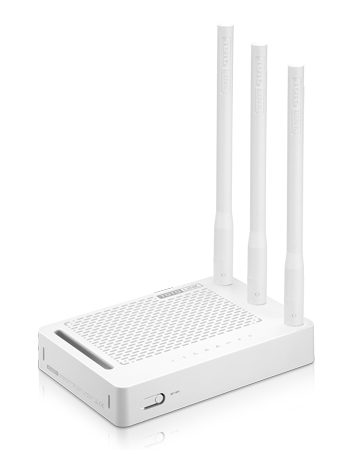

N302R Plus

300Mbps Wireless N Router

  • - 300Mbps Wireless N Speed
    - Stable Wireless Performance
    - Easy Setup
    - Enjoy Your IPTV
    - Outstanding Bandwidth Control with QoS
    - Multiple Wireless Networks for Access Control
    - Advanced Security
    - Parental Control
  • N302R Plus is a wireless router which complies with 802.11n standard and delivers up to 300Mbps wireless transmission rate. Equipped with three high performance antennas, N302R Plus ensures stable Wi-Fi signal and wide coverage, allowing multiple Wi-Fi devices to share Internet access simultaneously. Besides, N302R Plus can be used as a Repeater or an AP. So it is suitable for middle size home use.



    300Mbps Wireless N Speed

    N302R Plus complies with wireless 11n standard and delivers Wi-Fi speed up to 300Mbps, satisfying all internet activities like network  communication,online gaming and video streaming


    Stable Wireless Performance

    With three high performance antennas, Wi-Fi transmission for long distance is more stable and sensitive. No matter what your home shape and size is, N302R Plus ensures wireless connectivity throughout your home and all Wi-Fi devices.


    Easy Setup

    For Wi-Fi devices first connected to N302R Plus, the User Log In page will show up automatically without having to enter IP address. Also one page Easy Setup simplifies setting process, configuration has never been so easier.


    Enjoy Your IPTV

    Simply set up IPTV related information on N302R Plus's Easy Setup page, you can enjoy smooth IPTV and fast Wi-Fi at the same time.


    Outstanding Bandwidth Control with QoS

    Intelligent QoS based on IP & MAC address is supported to efficiently improve bandwidth utilization and is flexible for existing network priority control.


    Multiple Wireless Networks for Access Control

    Except the default wireless SSID, you are allowed to add two more Wi-Fi networks for any Wi-Fi sharing activities to control access of your home or office network.


    Advanced Security

    N302R Plus supports the most advanced WPA/WPA2-PSK encryption to ensure the security of wireless connections, protecting your Wi-Fi network from any unauthorized use.


    Parental Control

    Wi-Fi Schedule helps parents to set up time schedule for Wi-Fi network access, effectively preventing children caught in the Web, better for parental control.

    - Complies with IEEE 802.11n/g/b standards for 2.4GHz Wireless LAN.

    - Up to 300Mbps data rate for Wi-Fi network.

    - Advanced MIMO technology enhances the throughput and wireless coverage.

    - Supports  DHCP, Static IP, PPPoE(dual access), PPTP(dual access), L2TP(dual access) broadband functions.

    - Provides 64/128-bit WEP, WPA, WPA2 and WPA-Mixed security.

    - Connects to secure network easily and fast using WPS.

    - Supports IP, Port, MAC, URL filtering and Port Forwarding.

    - QoS: Bandwidth Control based on IP/MAC.

    - Multi-SSID allows user to create multiple SSIDs according to their needs.

    - Supports VLAN function for IPTV and other internet services.

    - Universal repeater and WDS function for easy Wi-Fi extension.

    - Supports TR-069 protocol for remote centralized management.


    Interface  4 *10/100Mbps LAN Ports
      1 *10/100Mbps WAN Port
    Power Supply  9V DC/0.5A
    Antenna  3 *5dBi fixed antennas
    Button  1 *RST/WPS Button
    LED Indicators  1 *Power, 1 *CPU, 1 *Wireless, 1 *WAN, 4 *LAN
    Dimensions (L x W x H)  5.7 x 3.8 x 1.0 in. (144.0 x 95.4.0 x 25.0 mm)
    Standards  IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
    RF Frequency  2.4~2.4835GHz
    Data Rate  802.11n: Up to 300Mbps
      802.11g: Up to 54Mbps (dynamic)
      802.11b: Up to11Mbps (dynamic)
    EIRP  < 20dBm
    Wireless Security  64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
    Reception Sensitivity  270M: -61 dBm@10% PER
      135M: -65 dBm@10% PER
      54M: -68 dBm@10% PER
      11M: -85 dBm@8% PER
      6M: -88 dBm@10% PER
      1M: -90 dBm@8% PER
    Operation Mode  Wireless ISP Client Router
      Wireless Client
      Repeater(Range Extender)
      Bridge with AP
    Network  VLAN, IPv6
    WAN Type  DHCP/Static IP/PPPoE(dual access)/PPTP(dual access) /L2TP
    Wireless Functions  Multiple SSID, MAC Authentication, Universal Repeater, WDS, WPS
    Schedule  Reboot Schedule, Wireless Schedule
    Firewall  MAC Filtering, IP Filtering, Port Filtering, URL Filtering, Port Forwarding, DMZ
    Management  Firmware Upgrade, QoS, TR-069 config, DDNS, Access Control
    Package Contents  N302R Plus Wireless Router *1
      Power Adapter *1
      Ethernet Cable *1
      Quick Installation Guide *1
    Environment  Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
      Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~90% non-condensing

    All content on this website is only applicable to models selling in overseas markets (outside China mainland, Taiwan and South Korea), any model purchased from China mainland, Taiwan or South Korea caused damage by upgrading software on this website is excluded in after-sales service range.

    Firmware - N302R Plus-V1

    Model Download Version Updated
    N302R Plus-V1 N302R Plus V1_en_8_82.zip en_8_82 2014-06-12

    Firmware - N302R Plus-V2

    Model Download Version Updated
    N302R Plus-V2 N302R Plus-V2_en_10_022.zip en_10_022 2017-11-25
    N302R Plus-V2 N302R Plus-V2_en_9_78.zip en_9_78 2015-11-24
    N302R Plus-V2 N302R Plus-V2_en_9_76.zip en_9_76 2015-08-08
    N302R Plus-V2 N302R Plus-V2_en_9_08.zip en_9_08 2015-04-24

    Firmware - N302R Plus-V3

    Model Download Version Updated
    N302R Plus-V3 N302R Plus_V3.1.4_20170525.zip V3.1.4 2017-06-02
    N302R Plus-V3 N302R Plus-V3.0.0_20151120.zip V3.0.0 2015-11-25


    Model Download Version Updated
    N302R Plus N302R plus_datasheet_V3.pdf ver3.0 2016-09-14


    Model Download Version Updated
    N302R Plus N302R Plus User Manual.pdf ver1.0 2016-07-21

    Quick Install Guide

    Model Download Version Updated
    N302R Plus N302R Plus QIG ver3.0.pdf ver3.0 2016-07-21


    Model Download Version Updated
    N302R Plus N302R-Plus_Photo002.jpg Resolution 1200×1200 2017-03-22
    N302R Plus N302R-Plus_Photo001.jpg Resolution 1200×1200 2017-03-22
