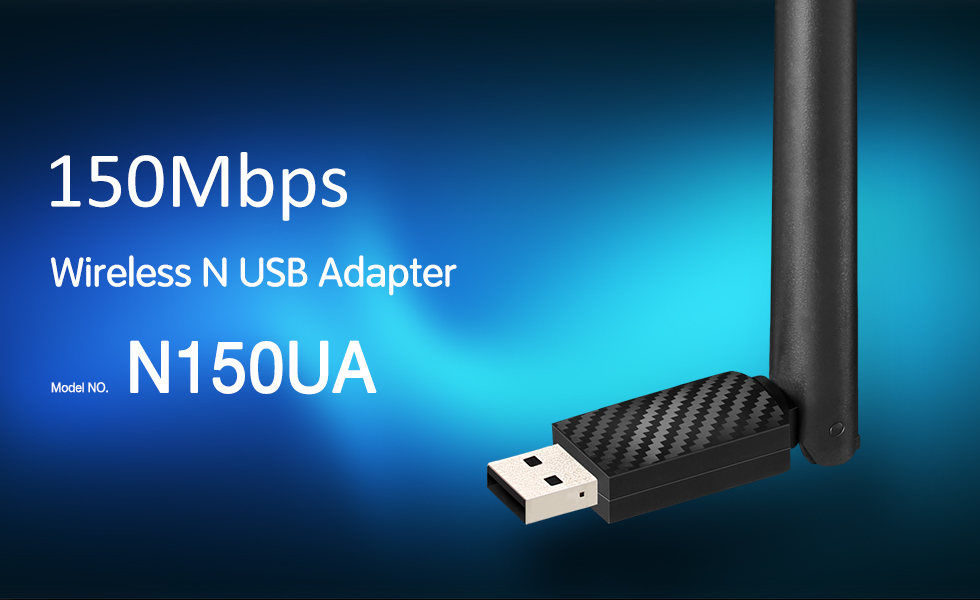

N150UA

150Mbps Wireless N USB Adapter

  • - High Speed Performance
    Detachable Antenna
    - One Click Wi-Fi Protected Setup




  • N150UA is a Wireless USB Adapter which complies with IEEE 802.11n standard and can deliver up to 150Mbps high-speed wireless data rate. One WPS (Wi-Fi Protected Setup) button allows you to establish high security connection by fast-click. So it is a ideal solution to access fast WLAN network.





    High Speed Performance
    Complying with 802.11n standard, N150UA provides up to 150Mbps wireless transfer rate for users to enjoy the best Wi-Fi connection with stable throughput.

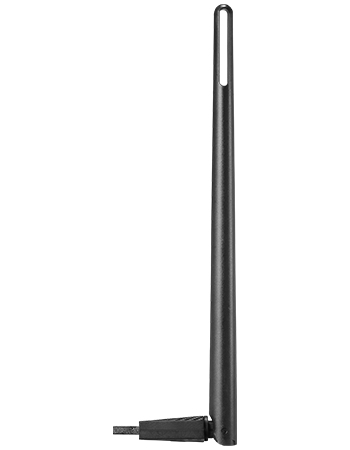

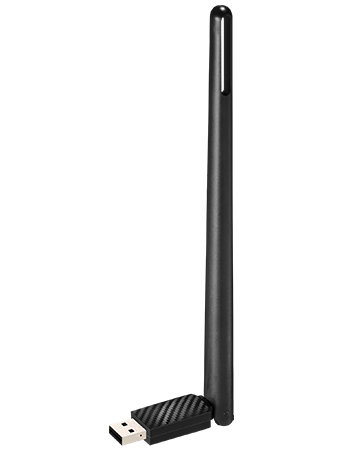

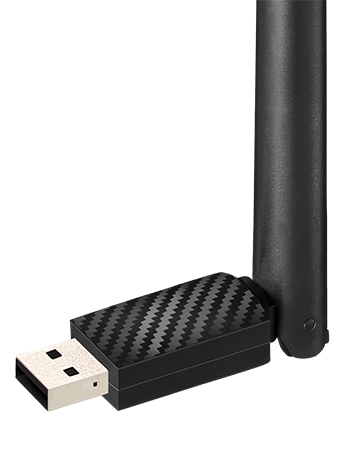

    Detachable Antenna
    The detachable antenna allows users to change or revolve different directions to get better signal.


    One Click Wi-Fi Protected Setup
    To secure the wireless connection, the adapter provides a WPS button so that users can easily setup a wireless connection with protection just by one click.


    - Complies with IEEE 802.11n /g/b standards for 2.4GHz Wireless LAN.
    - Up to 150Mbps data rate for Wi-Fi network.
    - Supports 64/128-bit WEP, WPA/WPA2 and WPA-PSK/WPA2-PSK (TKIP/AES) encryption.
    - WPS button allows to setup a security connection by one click.
    - Supports infrastructure and Ad-Hoc network modes.
    - Supports Windows 10/8/7/XP/Vista (32/64-bit) and Linux.
    - Easy to install and configure.
    HARDWARE FEATURES
    Interface  USB 2.0
    LED Indicators  1 *Status
    Button   1 *WPS Button
    Antenna  1 *4dBi detachable antenna
    WIRELESS FEATURES
    Standards  IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
    RF Frequency  2.4~2.4835GHz
    Data Rate  802. 11n: up to 150Mbps
      802.11g: Up to 54Mbps (dynamic)
      802.11b: Up to11Mbps (dynamic)
    Wireless Security  64/128 bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
    EIRP  <20dBm
    Reception Sensitivity  135M: -65 dBm@10% PER
      54M: -68 dBm@10% PER
      11M: -85 dBm@8% PER
      6M: -88 dBm@10% PER
      1M: -90 dBm@8% PER
    Others
    Package Contents  N150UA Wireless Adapter *1
      4dBi antenna *1
      Resource CD *1
      1.5m USB 2.0 extension cable with cradle *1
      Quick Installation Guide *1
    System Requirement  Windows 10 (32/64bits), Windows 8 (32/64bits), Windows 7 (32/64bits), WindowsXP (32/64bits)
      Linux
    Environment  Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
      Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~90% non-condensing

    All content on this website is only applicable to models selling in overseas markets (outside China mainland, Taiwan and South Korea), any model purchased from China mainland, Taiwan or South Korea caused damage by upgrading software on this website is excluded in after-sales service range.

    Driver

    Model Download Version Updated
    Linux TOTOLINK_N150UA_linux_driver.rar   2017-11-30
    Windows N150UA_Windows10_8_7_XP_Vista.zip   2016-06-15
    Linux N150UA Linux_V3.0.0.4.zip ver3.0.0.4 2014-04-16










    Datasheet

    Model Download Version Updated
    N150UA N150UA_datasheet_v1.0.pdf Ver1.0 2015-12-25






    Quick Install Guide

    Model Download Version Updated
    N150UA A150UA QIG ver2.0.pdf ver2.0 2016-07-21
    N150UA A150UA QIG ver1.0.pdf ver1.0 2016-07-21
