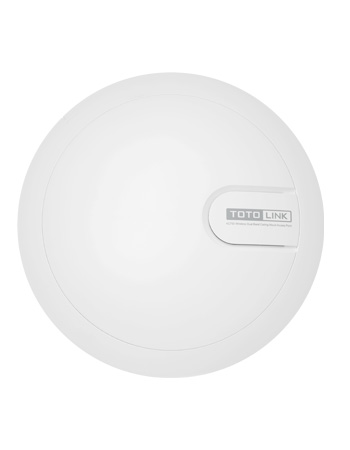

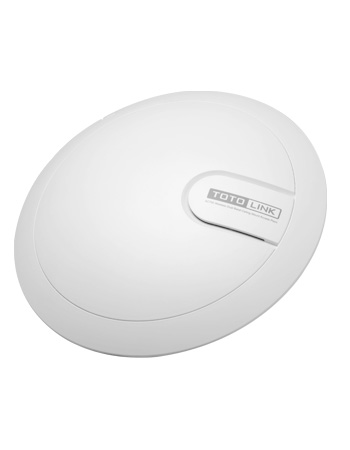

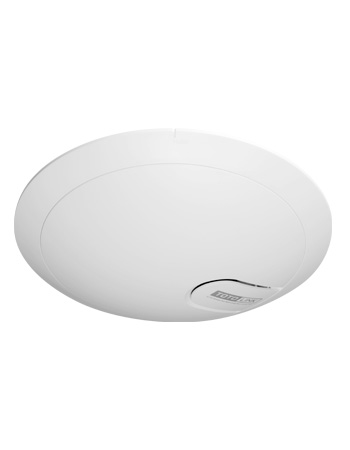

CA750

AC750 Wireless Dual Band Ceiling Mount AP

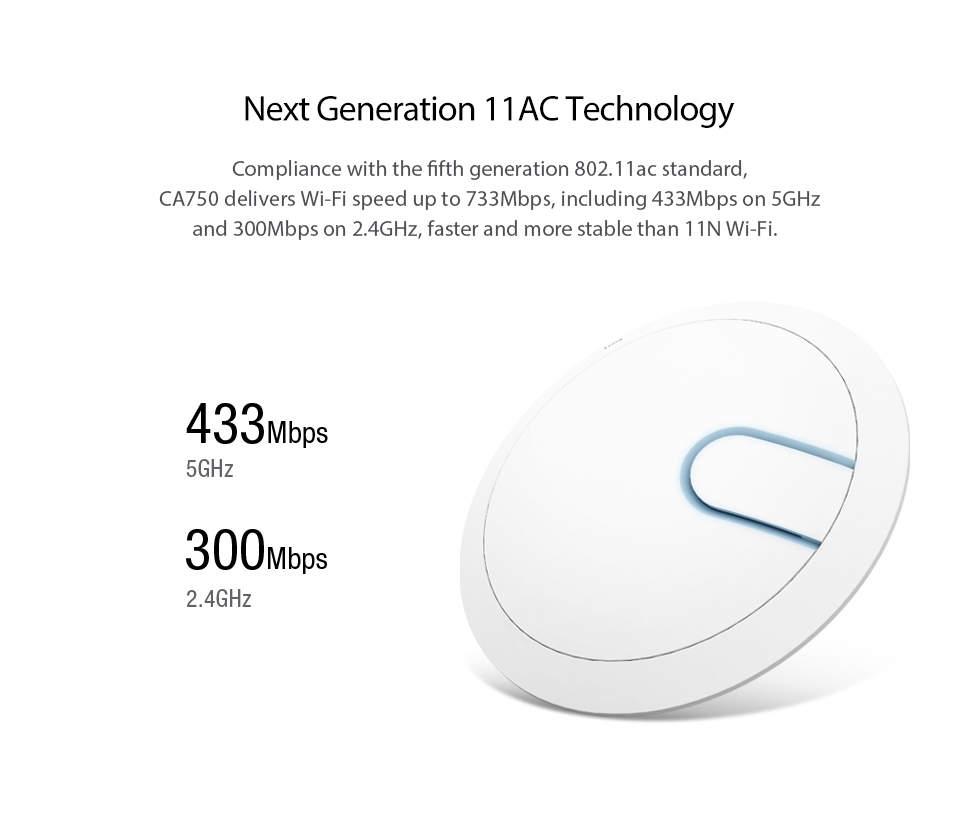

  • - Next Generation 11AC Technology
    - Dual Band Concurrent
    - Powerful Hardware Providing Stable Connection

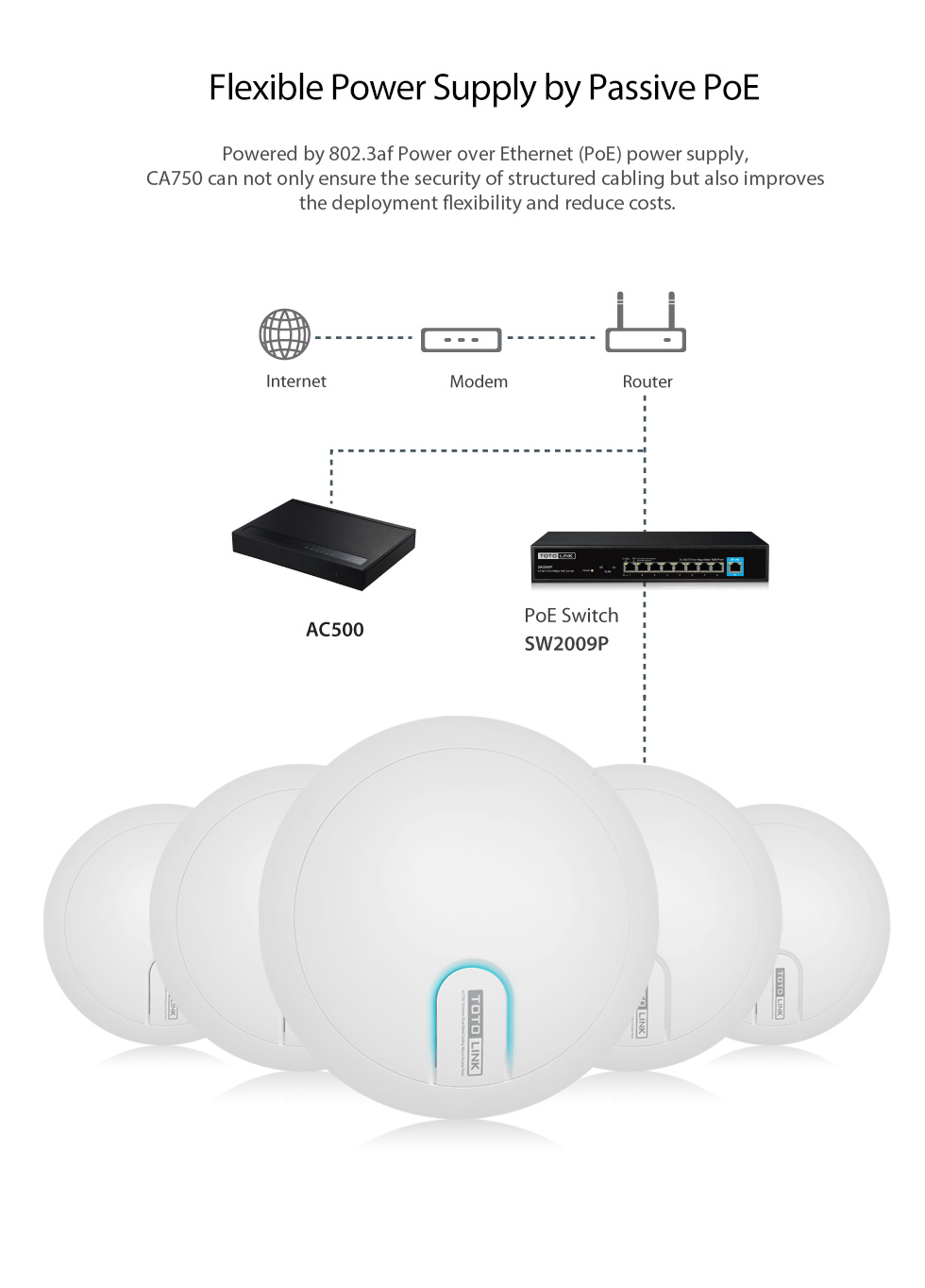

    - Flexible Power Supply by Passive PoE

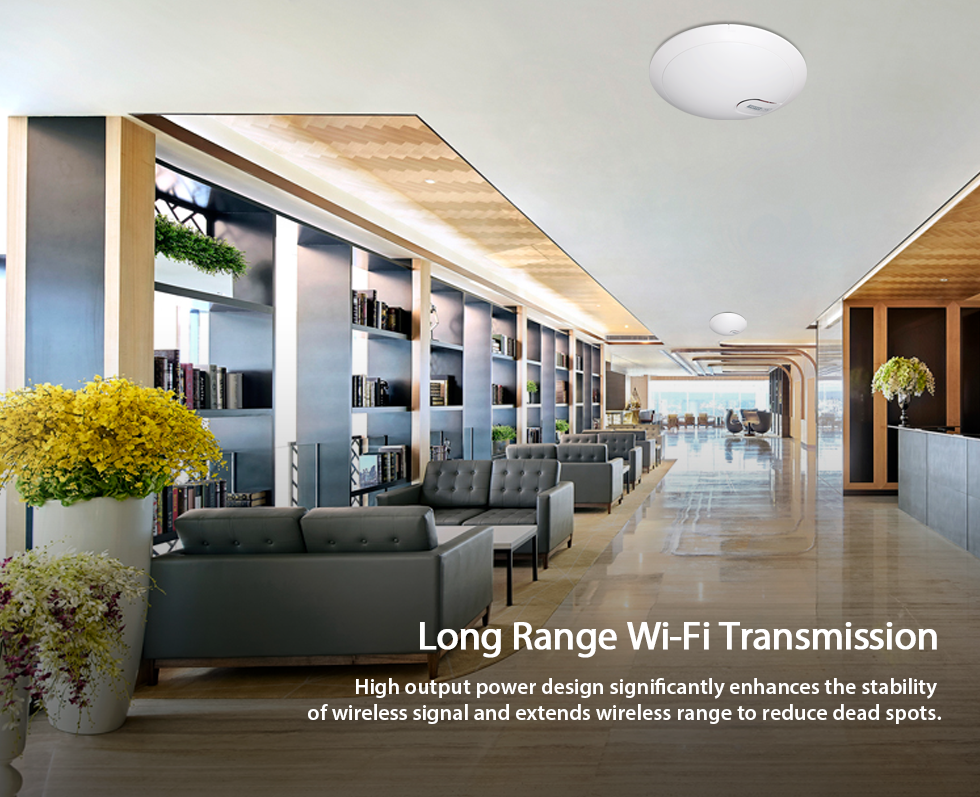

    - Long Range Wi-Fi Transmission
    - WLAN Controller for Centralized Management
    - Multiple Wireless Networks for Access Control
    - Advanced Security
  • - Complies with IEEE 802.11ac/a/b/g/n standards for 2.4GHz and 5GHz Wireless LAN.

    - Supports 802.3af/at PoE power supply to simplify the deployment.

    - Up to 433Mbps on 5GHz and 300Mbps on 2.4GHz wireless speed.

    - Qualcomm Atheros chipsets ensure high performance and stable Wi-Fi.

    - High power output for long Wi-Fi range.

    - Supports a maximum of 128 clients simultaneously.

    - WLAN Controller for centralized management of AP.

    - Three Wi-Fi networks(SSIDs) available for access management.

    - Provides 64/128-bit WEP, WPA, WPA2 and WPA/WPA2 (TKIP+AES) security.

    - AP/WDS/Repeater mode selectable for different requirements.

    - Reboot Schedule provides better stability.

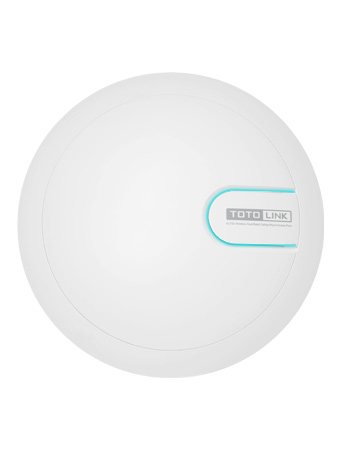

    - More clear working status with three colors of LED.

    HARDWARE FEATURES
    Interface  1 *100BaseTX (Auto MDI/MDIX) LAN/PoE Port
    Button  1 *RST button
    Power Supply  IEEE 802.3af/at PoE Power Supply
    LED Indicator  1*Status (Three Colors)
    Antenna  2 *internal antennas
    Dimensions (D x H)  9.6 x 2.2 in. (245 x 55 mm)
    WIRELESS FEATURES
    Standards  IEEE 802.11ac, IEEE 802.11a IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
    RF Frequency  2.4GHz/5GHz
    Data Rate  5GHz: 433Mbps
      2.4GHz: 300Mbps
    EIRP  < 27dBm
    Wireless Security  64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
    Reception Sensitivity (2.4G)  11b:<-79dbm
      11g:<-68dbm
      11n: HT20<-65dbm HT40:<-61dbm
    Reception Sensitivity (5G)  11a:<-68dbm
      11ac: HT20<-65dbm HT40:<-61dbm HT80:<-51dbm
    SOFTWARE FEATURES
    Operation Mode  Bridge Mode
      Repeater Mode
    Network  LAN Status
      LAN Settings
    Wireless (2.4GHz/5GHz)  Wireless Status
      Basic Setting
      Multiple APs
      MAC Authentication
      WDS Setting
      Advanced Setting
    Management  System Log
      Administrator Setup
      Firmware Upgrade
      System Time
      Configuration backup/restore
      Misc Setup
    Package Contents  CA750 Wireless Ceiling Mount AP*1
      Quick Installation Guide *1
    Environment  Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
      Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~90% non-condensing
