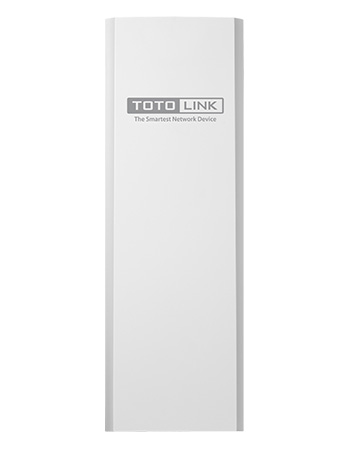

CP900

5GHz 867Mbps Wireless Outdoor AP/Clie

  • - Powerful Hardware Providing Stable Connection
    - 15km+ Wi-Fi Transmission
    - Excellent Protection Design
    - Flexible Power Supply by Passive PoE



  • CP900 Wireless Outdoor CPE is specially designed to provide cost-effective solution for outdoor wireless networking applications. It adopts the latest 802.11ac standard, delivering wireless speeds up to 867Mbps. With two built-in polarized antennas, high power output and multiple working modes, CP900 is used extensively in point-to point, point-to-multipoint and outdoor Wi-Fi coverage applications. Meanwhile, its professional structural design is suitable for any kinds of severe climate. So it is an ideal choice for outdoor Wi-Fi transfer over long distance.



    Powerful Hardware Providing Stable Connection

    With Qualcomm Atheros chipsets, built-in high gain antennas, high quality material and PoE power supply, CP900 is specially designed for outdoor long distance Wi-Fi coverage in almost any climate.



    15km+ Wi-Fi Transmission

    CP900 complies with the latest 802.11ac standard and delivers Wi-Fi speeds up to 867Mbps, covering a range of 15km+, tested in the field.



    Excellent Protection Design

    With professional structural design, CP900 supports IP65 level dustproof and waterproof, 4KV lighting proof and 15KV ESD that is resilient to all harsh environments.



    Flexible Power Supply by Passive PoE

    Powered by Power over Ethernet (PoE) technology, CP900 can not only ensure the security of structured cabling but also improves the deployment flexibility and reduce costs.

    - Supports 802.11ac Wave2 technology with Qualcomm Atheros chipsets.

    - Delivers up to 867Mbps wireless speeds on 5G band.

    - MU-MIMO technology allows multiple devices data transfer simultaneously.

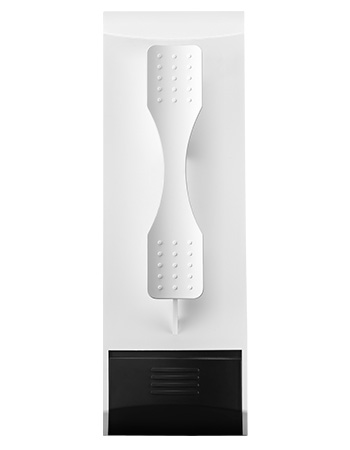

    - Built-in 12dBi dual polarized antennas ensure reliable Wi-Fi connection.

    - Watchdog hardware design for easy troubleshooting automatically.

    - Passive PoE power supply with up to 100m power transmission.

    - IP65 level dustproof and waterproof for professional structural design.

    - 4KV lighting proof and 15KV ESD is resilient to all harsh environments.Interface

    - 4 intelligent LED indicators intuitively show signal strength.

    - Provides AP/Client/Repeater/WISP working modes.

    HARDWARE FEATURES
    Interface  1 *100BaseTX (Auto MDI/MDIX) LAN Port
      1 *GND SMA connector
    Power Supply  24V Passive PoE
    Button  1 *RESET Button
    Antenna  Built-in 13dBi dual polarized antennas

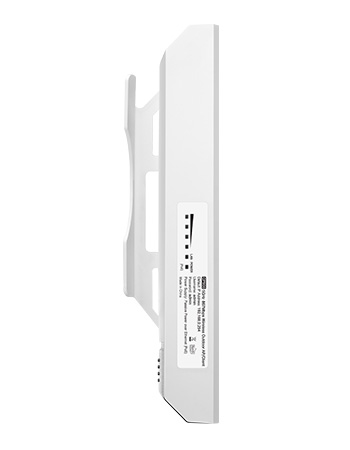

    LED Indicators  1 *Power, 1 *LAN, 4 *Signal Strength
    Dimensions(L X W X H)  9.3 x 3.1 x 2.3 in. (237.5 x 79 x 58.5mm)
    WIRELESS FEATURES
    Standards  IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n
    RF Frequency  5.15~5.85GHz
    Data Rate  Up to 867Mbps
    EIRP  < 26dBm
    Wireless Security  64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
    Reception Sensitivity  TX 802.11a/n(HT20)/n(HT40) /ac(VHT80)= 24/22/22/20dBm
      RX 802.11a/n(HT20)/n(HT40)/ac=-72/-68/-65/-55dBm  (MP)
      802.11a/n(HT20)/n(HT40)/ac=-76/-72/-69/-59dBm  (ES)
    SOFTWARE FEATURES
    Operation Mode  Access Point, Repeater Mode, Client Mode, WISP Mode
    Network  LAN Setup, Static DHCP Setup, WAN Setup
    Wireless  Basic Setting, Security Setting, Advanced Setting,
      Multiple APs, MAC Authentication, WDS, WPS, Repeater
    Reliability  6KV Lightning Protection
      15KV ESD Protection
      IP65 level dustproof and waterproof
    Circuit  Watch-dog circuit
    Others
    Package Contents  CP900 Wireless CPE *1
      PoE Box *1
      Power Adapter *1
      Ethernet Cable *1
      Strips*2
      Quick Installation Guide *1
    Environment  Operating Temperature: -40℃~70℃ (-40 ℉~158℉)
      Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
      Operating Humidity: 5%~95% non-condensing
      Storage Humidity: 5%~95% non-condensing
