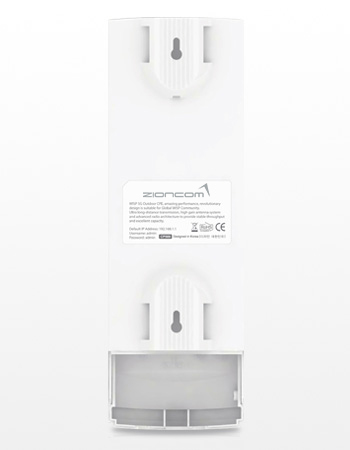

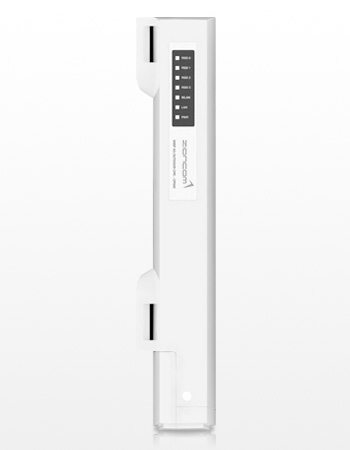

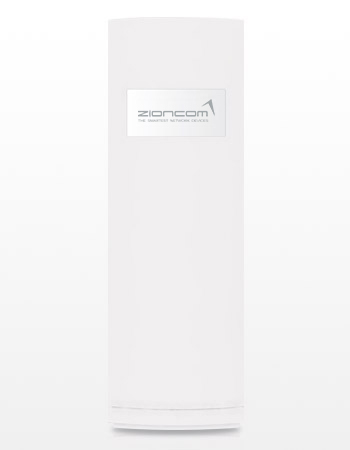

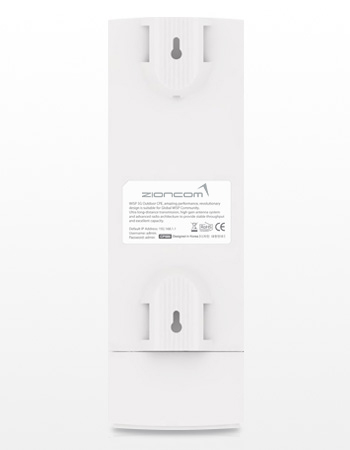

CP500

300Mbps 5G Band Wireless N Outdoor AP

  • - Super Capability for Long-distance Transmission
    - Outdoor Protection Design
    - Two Working Modes
    - Flexible Power Supply by Passive PoE



  • CP500 is a 5GHz WISP CPE Solution that specially designed for long distance wireless transmission. It complies with the most advanced IEEE802.11n standard, which can deliver up to 300Mbps wireless speed and 300mw output power. With two high gain internal antennas and advanced radio architecture, CP500 will make the radio signal transmission coverage more extensive with a stable wireless connection. Besides, it also offers Router network mode which allows much more users to acess the internet. Powered by Passive PoE make the deployment more flexible.


    Super Capability for Long-distance Transmission
    With up to 300mw wireless transmission power and two internal high gain antennas, CP500  can deliver up to 300Mbps wireless data rate with  stable WiFi connection. Placed on the roof of the building,  it can excellently transfer stable signal for long distance users.


    Outdoor Protection Design
    With the outdoor protection design, it can adjust poor working environment and effectively protect itself from dust, water and lightning.


    Two Working Modes
    CP500 supports two working modes: Bridge and Router modes, that can maximum use of the device and is ideal for more terminals to access the Internet.


    Flexible Power Supply by Passive PoE
    Powered by Power over Ethernet (PoE) technology, CP500 can not only ensure the security of structured cabling but also improves the deployment flexibility and reduce costs.

    - Complies with IEEE802.11n /a standards on 5G band.
    - Supports Bridge/Router networking modes.
    - RF power up to 300mw.
    - Internal dual-polarization 14dBi antennas.
    - Water-proof housing (IP65) and Lightning protection design.
    - ACK timeout adjustable.
    - Offers DHCP Leases/Route/Port Forward status display.
    - Supports MAC based ACL and MAC filtering.
    - Provides 64/128 bit WEP encryption and WPA-PSK, WPA2-PSK security.
    - Passive PoE power supply.
    - Supports Ping Watchdog/Telnet Server/SSH Server/ Web Server/NTP Client.
    - Supports Windows 8/ 7/ XP / Vista (32/64-bit), Linux and Mac OS.
    HARDWARE FEATURES
    Interface  1 *10/100Mbps RJ45 Port
    Power Supply  12V DC/1A (PoE)
    Button  1*Reset Button
    Antenna  2 *14dBi internal dual-polarization antennas
    Dimensions  86.4mm x 39mm x 260mm (L x W x H)
    Environment  Operating Temperature: 0℃~55℃ (32℉~131℉)
      Storage Temperature: -20~65℃ (-4℉~149℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~95% non-condensing
    WIRELESS FEATURES
    Standards  IEEE 802.11n, 802.11a, IEEE 802.3, IEEE 802.3u, IEEE 802.3x
    RF Frequency  5GHz
    Data Rate  802. 11n: up to 300Mbps
      802.11a: up to 54Mbps (dynamic)
    Wireless Security  64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
    Channels  5745~5805, 5500~5700, 5180~5805
    Modulation Type  DBPSK, DQPSK, CCK and OFDM (BPSK,QPSK,16-QAM/ 64-QAM)
    Reception Sensitivity  135M: -65 dBm@10% PER
      54M: -68 dBm@10% PER
      11M: -85 dBm@8% PER
      6M: -88 dBm@10% PER
      1M: -90 dBm@8% PER
    SOFTWARE FEATURES
    Status  A summary of wireless status
    Wireless  Wireless mode
      Security Select
    Network  Bridge mode
      Router mode
    Advances  Wireless Settings
      Signal LED Thresholds
      Traffic Shaping
    Services  Ping Watch dog
      SNMP Agents
      NTP Client
      Web Server
      Telnet Server
      SSH Server
      System Log
    System  Device name
      Administrative Account
      Read-Only Account
      Backup/upload configuration
      Firmware update/Reset to factory default

    All content on this website is only applicable to models selling in overseas markets (outside China mainland, Taiwan and South Korea), any model purchased from China mainland, Taiwan or South Korea caused damage by upgrading software on this website is excluded in after-sales service range.

    Firmware

    Model Download Version Updated
    CP500 TOTOLINK_CP500_V3.0.zip V3.0 2014-03-26






    Datasheet

    Model Download Version Updated
    CP500 CP500_datasheet_v1.pdf ver1.0 2016-06-14






    Manual

    Model Download Version Updated
    CP500 CP500 User Manual V1.1.zip ver1.1 2014-03-21






    Quick Install Guide

    Model Download Version Updated
    CP500 CP500 QIG V1.1.zip ver1.1 2014-02-26







    Model Download Version Updated
    CP500 CP500_Photo002.jpg Resolution 1200x1200 2014-03-19
    CP500 CP500_Photo001.jpg Resolution 1200x1200 2014-03-19
