CP300

300Mbps 2.4GHz Wireless N AP/Client

  • - Long Distance Transmission
    - Protection Design
    - Flexible Power Supply by Passive PoE




  • CP300 is WISP CPE Solution that specially designed for long distance wireless transmission. With two internal high gain antennas and advanced radio architecture, it can make the radio signal transmission coverage more extensive with a stable wireless connection and deliver up to 300Mbps data rate. Powered by Passive PoE, CP300 simplifies the network cable deployment and is suitable for all kinds of environment with the waterproof design.

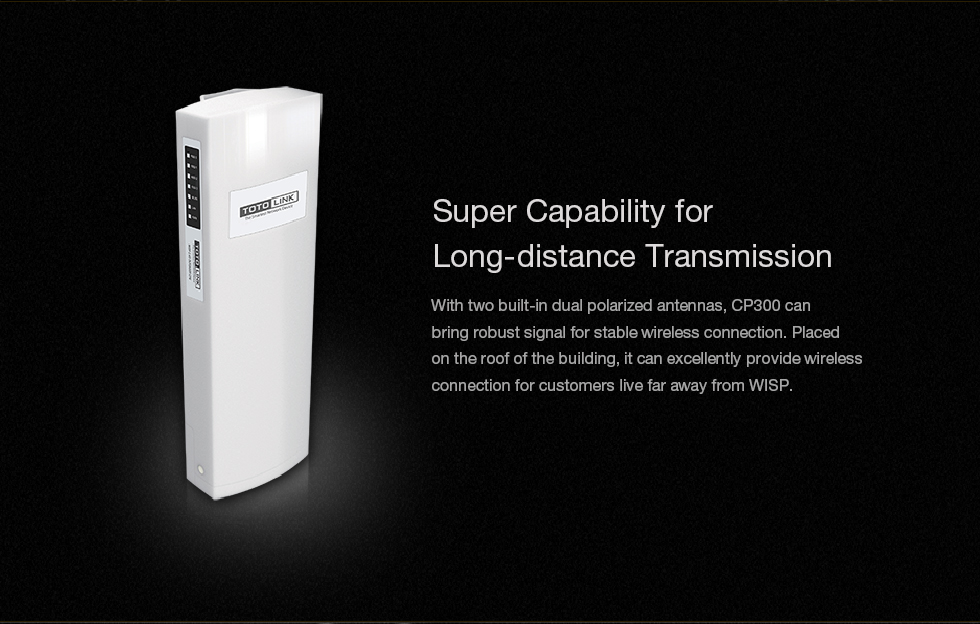

    Long Distance Transmission
    With two internal high performance antennas, CP300 can deliver up to 300Mbps wireless data rate with  stable Wi-Fi connection. Placed on the roof of the building, it can excellently transfer stable signal for long distance use.


    Protection Design
    With the waterproof design, it can adapt to any poor working environment and effectively protect itself from dust, water and lightning.

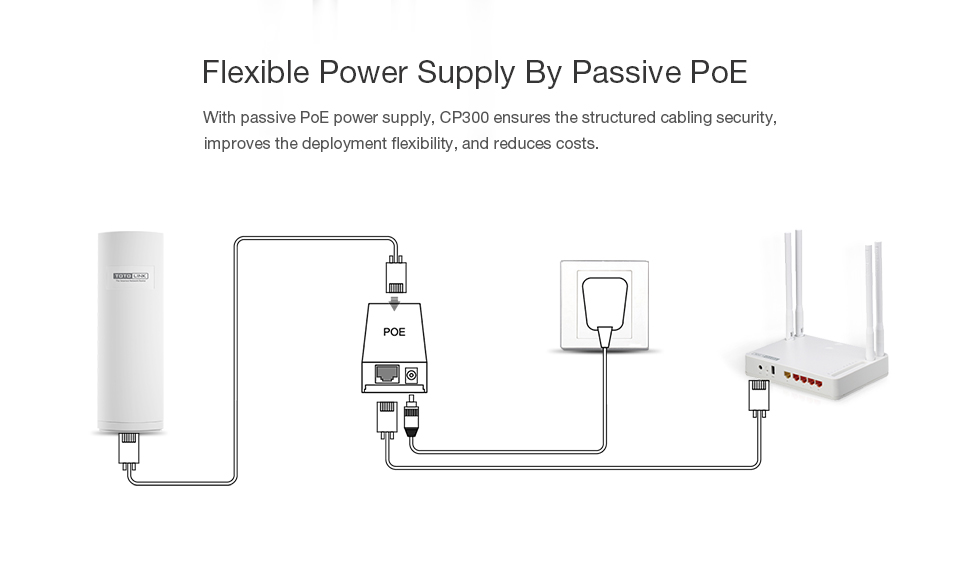

    Flexible Power Supply by Passive PoE
    Powered by Power over Ethernet (PoE) technology, CP300 can not only ensure the security of structured cabling but also improves the deployment flexibility and reduce costs.



    - Complies with IEEE802.11n /g/b standards on 2.4G band.
    - Supports PPPoE, DHCP, Static IP, PPTP and L2TP broadband functions.
    - Two powerful internal antennas.
    - Multiple APs allows user to add other two SSIDs accordingly.
    - 4 LED signal strength indications.
    - Supports 64/128 bit WEP encryption and WPA-PSK, WPA2-PSK security.
    - Repeater function allows more terminals to access Internet.
    - Supports passive PoE power supply.
    - Lightning protection design.
    - QoS can allocate bandwidth reasonably.
    HARDWARE FEATURES
    Interface  1 *100BaseTX (Auto MDI/MDIX) LAN Port
    Power Supply  12V DC /1A (PoE)
    Button  1 *Reset Button
    Antenna  2 *8dBi internal antennas
    LED Indicators  1 *Power, 1 *LAN, 1 *WLAN, 4 *Signal Strength
    WIRELESS FEATURES
    Standards  IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.3u, IEEE 802.3
    RF Frequency  2.4~2.4835GHz
    Data Rate  802.11n: up to 300Mbps
      802.11g: up to 54Mbps (dynamic)
      802.11b: up to 11Mbps (dynamic)
    EIRP  < 20dBm
    Wireless Security  64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
    Reception Sensitivity  270M: -64 dBm@10% PER
      135M: -65 dBm@10% PER
      54M: -68 dBm@10% PER
      11M: -85 dBm@8% PER
      6M: -88 dBm@10% PER
      1M: -90 dBm@8% PER
    SOFTWARE FEATURES
    Operation Mode  Gateway, Bridge, Wireless ISP
    Network  LAN Setup, Static DHCP Setup , WAN Setup
    Wireless  Basic Setting, Security Setting, Advanced Setting, Multiple APs,
      MAC Authentication, WDS, WPS, Repeater
    Firewall  IP/Port Filtering, MAC Filtering, URL Filtering, Port Forwarding,
      DMZ Setting, Denial of Service
    Management  Statistics
      Dynamic DNS Setting (Bridge mode doesn’t have this option)
      Time Zone Setting
      Remote Management
      System Log
      Upgrade Firmware
      Save/Reload Setting
      Administrator Setting
    Others
    Package Contents  CP300 Wireless CPE *1
      PoE Box *1
      Power Adapter *1
      Ethernet Cable *1
      Quick Installation Guide *1
    Environment  Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
      Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~90% non-condensing

    All content on this website is only applicable to models selling in overseas markets (outside China mainland, Taiwan and South Korea), any model purchased from China mainland, Taiwan or South Korea caused damage by upgrading software on this website is excluded in after-sales service range.

    Firmware

    Model Download Version Updated
    CP300 V3 CP300 V3-V2.0.2-20170510.zip V2.0.2 2017-06-01
    CP300 TOTOLINK_CP300_V1.2.zip V1.2 2014-03-26








    Datasheet

    Model Download Version Updated
    CP300 CP300_datasheet_v1.5.pdf Ver1.5 2015-12-21






    Manual

    Model Download Version Updated
    CP300 CP300 User Manual V1.0.zip ver1.0 2014-03-21






    Quick Install Guide

    Model Download Version Updated
    CP300 CP300 QIG V1.pdf ver1.0 2016-07-21







    Model Download Version Updated
    CP300 CP300_Photo002.jpg Resolution 1200x1200 2014-03-19
    CP300 CP300_Photo001.jpg Resolution 1200x1200 2014-03-19
