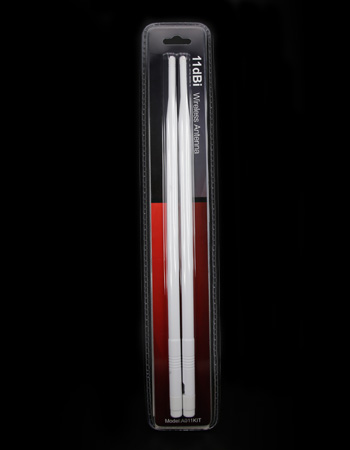

A011 KIT

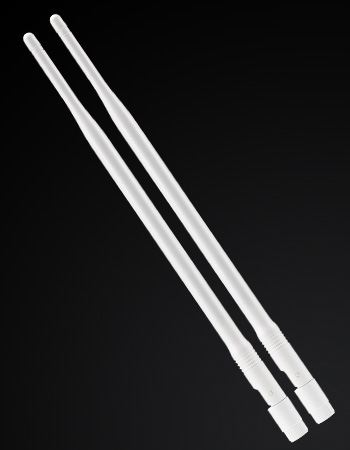

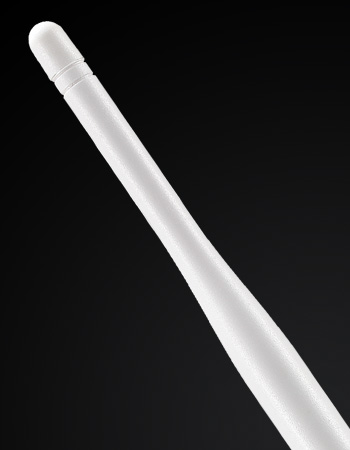

2.4G 11dBi Omni Directional Antenna








  • A011 KIT is a 2.4G high gain Omni-directional antenna which is designed to largely extend signal coverage and deliver better wireless performance for users. It is mainly used in wireless Adapter and wireless Router/AP whose antenna is detachable. You can get stronger wireless signal simply by replacing your existing Wi-Fi antenna with A011 KIT.
    - Complies with IEEE 802.11n/g/b standards for 2.4GHz Wireless LAN.
    - 11dBi high gain makes your signal coverage much wider.
    - Provides RP-SMA female connector.
    - Very easy to install, no configuration required.
    HARDWARE FEATURES
    RF Frequency  2.4GHz
    Impedance  50 Ohms
    VSWR  1.92:1(Max.)
    Gain  11±1dBi
    Polarization  Linear, Vertical
    Radiation  Omni-directional
    Connector Type  RP-SMA
    Application  Indoor & Outdoor
    Color  White
    Operation Temperature  10℃~60℃ (14℉~140℉)
    Storage Temperature  10℃~70℃ (14 ℉ ~158℉)

    All content on this website is only applicable to models selling in overseas markets (outside China mainland, Taiwan and South Korea), any model purchased from China mainland, Taiwan or South Korea caused damage by upgrading software on this website is excluded in after-sales service range.

    Datasheet

    Model Download Version Updated
    A011 KIT A011KIT_datasheet_v1.pdf ver1.0 2016-06-17
