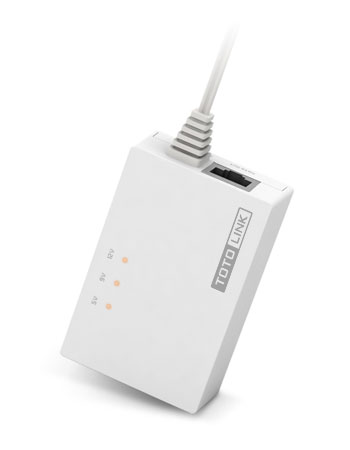

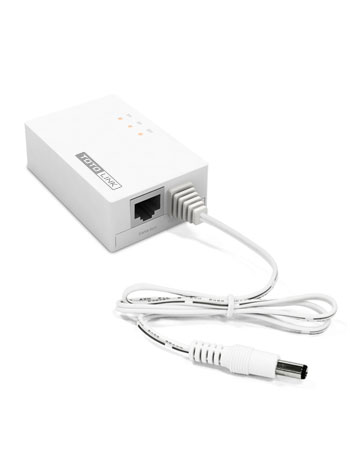

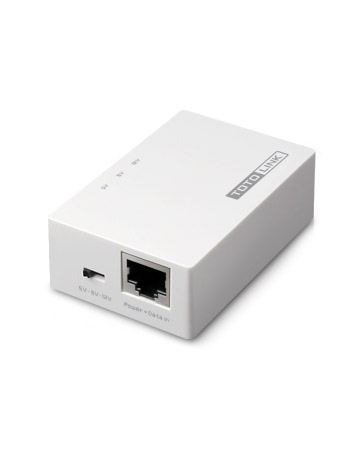

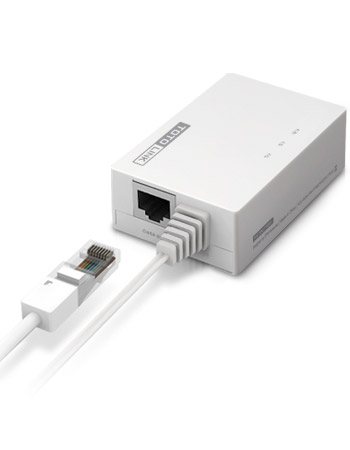

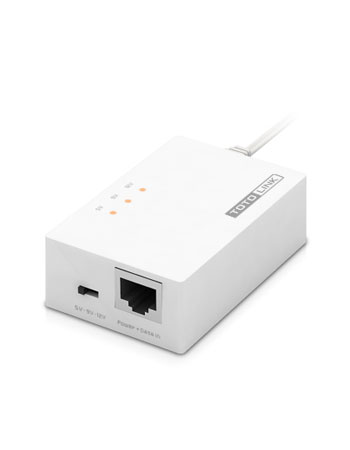

POE200

Gigabit PoE Splitter








  • POE200 is a PoE Splitter with high performance and stability which is designed to separate electrical power and data signal transmitted by network cable. It fully complies with IEEE 802.3af standard and can work with all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE Supplier Adapter. Selectable Voltage 12V, 9V or 5V can be delivered to power supply devices. So it is the perfect choice to expand both your home and office network without power line layout.
    - Complies with IEEE 802.3af standard.
    - Supports gigabit data rate.
    - Optional 12V DC, 9V DC or 5V DC power supply.
    - Plug-and-Play, no configuration needed.
    HARDWARE FEATURES
    Interface  2*10/100/1000Mbps RJ45 Ports
      1*DC Out Port
    LED Indicator  Status (Orange): 1*12V, 1*9V, 1*5V
    Power Supply  Input: 48V DC/0.3A
      Output: 5V DC/2A, 9V DC/1.1A, 12V DC/1A
    Dimensions  74mm x 48mm x 24mm (L x W x H)
    Network Media  10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
      EIA/TIA-568 100Ω STP (Max 100m)
      100BASE-TX: UTP category 5, 5e cable (Max 100m)
      EIA/TIA-568 100Ω STP (Max 100m)
      1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
    Standards  IEEE 802.3af
    Output Power  12W(12VDC)/10W(5VDC)/9W(9VDC)
    Environment  Operating Temperature: 0℃~45℃ (32℉~113℉)
      Storage Temperature: -40℃~70℃ (-40℉~158℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~90% non-condensing
