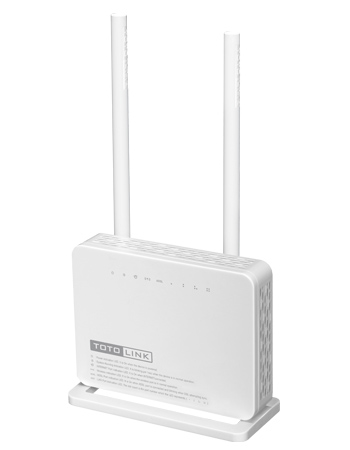

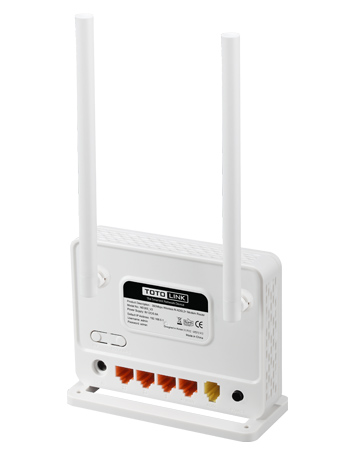

ND300

300Mbps Wireless N ADSL 2/2+ Modem Router

  • - All-in-one Solution
    - 300Mbps Wireless N Speed
    - Selectable ADSL or WAN Broadband Access
    - One-click Wi-Fi On/Off
    - Multiple Networks Available
    - IPv6 Ready
    - Advanced Security
    - Easy Setup
  • ND300 is a wireless ADSL modem router which integrates the functions of high speed ADSL modem, wireless router and 4-port switch into one. Complying with the IEEE 802.11n standard, ND300 delivers up to 300Mbps Wi-Fi speed with stable connection. It also supports the latest ADSL2/2+ standards to provide faster data rate for long distance transmission. Generally, ND300 is the most convenient Wi-Fi solution for home use.


    All-in-one Solution
    ND300 is a all-in-one solution that can be used as a high speed ADSL modem, Wireless Router, Access Point and 4-port Switch, clean up your desktop.



    300Mbps Wireless N Speed
    With 802.11n compliant and  MIMO technology, you will enjoy 300Mbps Wi-Fi for fast and stable Wreless network connection.



    Selectable ADSL or WAN Broadband Access
    With one ADSL port and one WAN port, Both ADSL or WAN broadband connection are selectable for you to access the Internet.



    One-click Wi-Fi On/Off
    Quickly turn Wi-Fi on or off by pressing the Wi-Fi on/off button on the router, which helps to simplify configuration and save power.



    Multiple Networks Available
    More than one Wi-Fi networks can be added to provide secure Wi-Fi acess for guest sharing your home or office network.



    IPv6 Ready
    ND300 supports IPv6 protocol and back compatible with IPv4, safer and more practical.



    Advanced Security
    The most advanced WPA/WPA2 (TKIP/AES) encryption is provided to secure Wi-Fi connection and avoid any unauthorized use.



    Easy Setup
    Simply follow the Easy Setup's configuration step-by-step, you are able to access the Internet quickly and build Wi-Fi network easily.

    - Complies with IEEE 802.11n/g/b standards for 2.4GHz Wireless LAN.
    - Up to 300Mbps data rate for Wi-Fi network.
    - Combines functions of high speed ADSL Modem, wireless router and 4-port switch.
    - Supports both ADSL and WAN broadband access.
    - Provides 64/128-bit WEP, WPA, WPA2 and WPA/WPA2 (TKIP+AES) security.
    - Supports IPv6 protocol.
    - Supports PVC detecting automatically.
    - IGMP multicast and IGMP proxy are supported.
    - Multiple BSSID function allows user to set maximum three virtual  APs for different needs.
    - QoS function allocates network bandwidth reasonably.
    - The IP, MAC and URL filtering makes access and time control more flexibly.
    - Repeater and WDS function for easy Wi-Fi expansion.
    - Wi-Fi on/off and Power on/off buttons make configuration simple.
    HARDWARE FEATURES
    Interface  3 *10/100Mbps LAN Ports
      1 *10/100Mbps WAN/LAN Port
      1 *ADSL Port
    Power Supply  9V DC/0.8A
    Antenna  2 *5dBi fixed antennas
    Button  1 *WPS/RST Button
      1 *Wi-Fi ON/OFF Button
      1 *Power ON/OFF Switch
    LED Indicators  1 *Power, 1 *System, 1*Internet, 1*WLAN, 1*ADSL, 4 *LAN
    Dimensions (L x W x H)  4.8 x 3.9 x 2.1 in. (122 x 99 x 55mm)
    WIRELESS FEATURES
    Standards  IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
      ADSL, ADSL2, ADSL2+
    RF Frequency  2.4~2.4835GHz
    Data Rate  802.11n: up to 300Mbps
      802.11g: up to 54Mbps (dynamic)
      802.11b: up to11Mbps (dynamic)
    EIRP  < 20dBm
    Wireless Security  64/128-bit WEP, WPA/WPA2 (AES/TKIP)
    Reception Sensitivity  270M: -61 dBm@10% PER
      135M: -65 dBm@10% PER
      54M: -68 dBm@10% PER
      11M: -85 dBm@8% PER
      6M: -88 dBm@10% PER
      1M: -90 dBm@8% PER
    SOFTWARE FEATURES
    Network  Easy Setup
      WAN
      LAN, LAN IPv6, DHCP
    Wireless  MBSSID
      Access Control List
      WPS
      WDS
      Repeater
    Advance  Route
      NAT
      QoS
      CWMP
      Port Mapping
      Bridge Setting
    Service  IGMP, UPnP, DDNS, FTP Server
    Firewall  MAC/IP/PORT /URL Filter
      ACL
      DoS
    Maintenance  Upgrade
      Password
      Reboot
      Time
      Log
      Diagnostics
    Others
    Package Contents  ND300 Wireless ADSL Router *1
      Power Adapter *1
      Ethernet Cable *1
      Telephone Cable *2
      ADSL Splitter *1
      Quick Installation Guide *1
    Environment  Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
      Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~90% non-condensing

    All content on this website is only applicable to models selling in overseas markets (outside China mainland, Taiwan and South Korea), any model purchased from China mainland, Taiwan or South Korea caused damage by upgrading software on this website is excluded in after-sales service range.

    Firmware - ND300-V2

    Model Download Version Updated
    ND300-V2 ND300 V2_20150908.zip V2.0 2016-08-24






    Firmware - ND300-V3

    Model Download Version Updated
    ND300-V3 TOTOLINK ND300 V3.1.1.zip V3.1.1 2017-07-20
    ND300-V3 ND300-V3_V3_1.1.1-20170224.zip V3.1.1 2017-06-02
    ND300-V3 ND300-V3.0.2_20160401.zip V3.0.2 2016-06-13










    Datasheet

    Model Download Version Updated
    ND300 ND300_datasheet_v1.0.pdf Ver1.0 2015-12-25






    Quick Install Guide

    Model Download Version Updated
    ND300 ND300_QIG ver1.0.pdf ver1.0 2014-11-19







    Model Download Version Updated
    ND300 ND300_Photo03.jpg Resolution 1200x1200 2014-07-11
    ND300 ND300_Photo02.jpg Resolution 1200x1200 2014-07-11
    ND300 ND300_Photo01.jpg Resolution 1200x1200 2014-07-11
