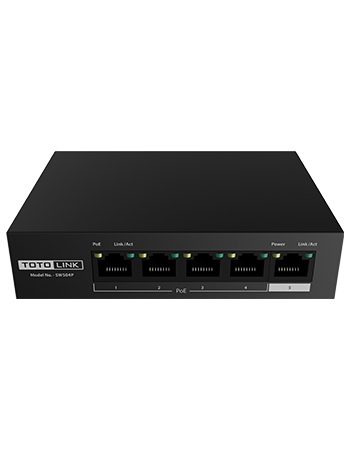

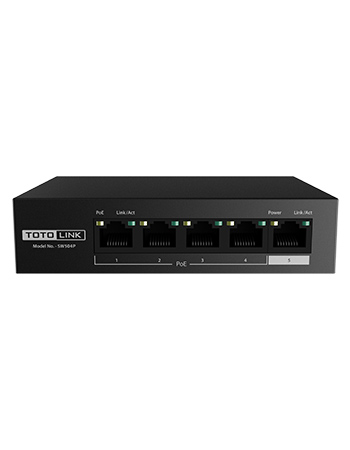

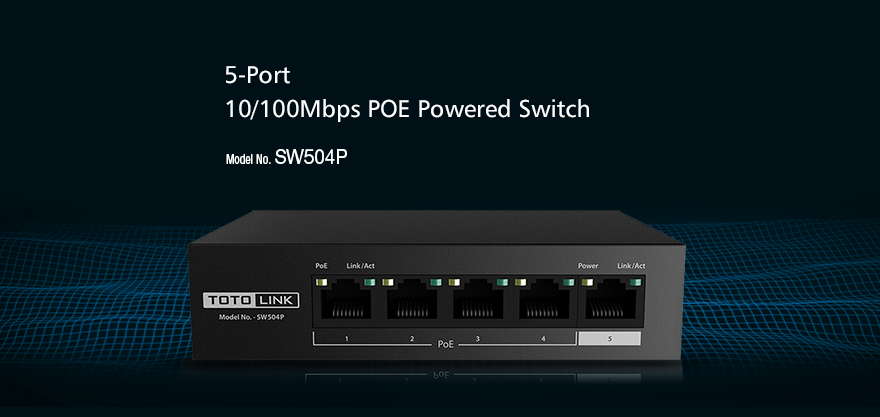

SW504P

5-Port 10/100Mbps POE Powered Switch

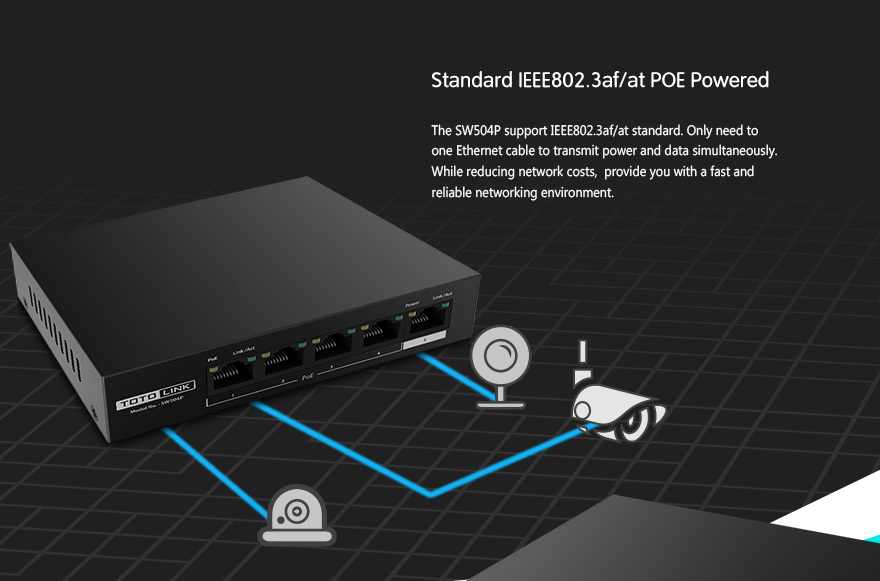

  • - Standard IEEE802.3af/at POE Powered
    - One-key Extension- Mode, Breaking the limit network distance
    - 6KV Port Lightning Protection






  • - 5 10/100Mbps  Ethernet ports, 1-4 ports IEEE 802.3af/at standard POE.

    - Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.

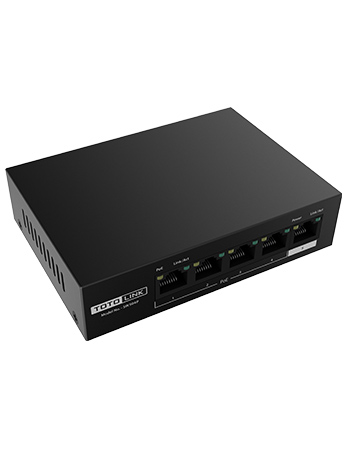

    - Mini iron box design supports desktop placement or wall mount.

    - 1K entry MAC address table and automatic address learning.

    - 6KV Port Lightning Protection

    - One-key Extension Mode, Maximum support 250 meters transmission distance

    HARDWARE FEATURES
    Standard&Protocol  - IEEE 802.3、 IEEE 802.3u、IEEE 802.3x、 IEEE 802.3af、IEEE 802.3at
    Indicator  - 5*Link/Act each port
      - 4*POE each port
      - 1*Power each port
    Interface  - 4*10/100Base-Tx ports(Data/Power)
      - 1*10/100Base-Tx port(Data)
      (Auto Negotiation/Auto MDI/MDIX)

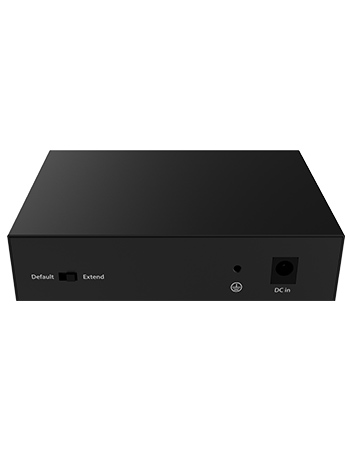

    Button  - 1* Default - Extend switch Button
    Port Lightning Protection  - 6KV
    Backup Bandwidth  - 1Gbps
    MAC Address Table  - 1K
    POE supply management  - Port 1 to Port 4 support IEEE802.3at/af POE standard
      - power( maximum power for each port is 30W),
    POE through pin  - 1 2 4 5 +,3 6 7 8 -
    Input Voltage  - AC:100-240V~ 50/60Hz
      - DC:48V /1A(Power Adapter Output)
      - DC:51V /1.17A(Power Adapter Output) *option
    Power consumption  - In full configuration:<48W
      - Power Supply:45W
      - In full configuration:<59.67W
      - Power Supply:56W *option
    Dimensions(L x W x H)   - 118 x 85 x 28 MM
    Ports feature  Standard:
      the switch functions as a common unmanaged switch
      and all the ports of the switch can communicate with each other.

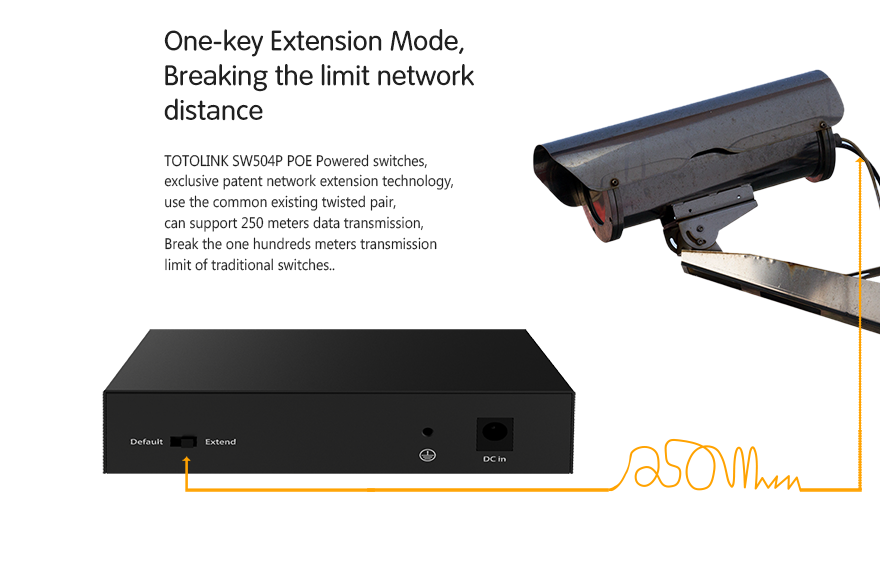

      Extend Mode:
      If the extend mode is enabled, the transmission distance of both power
      and data will extend up to 250m(10Mbps),
      this funcation can replace the extender and parts of the Fiber.
      It will extend the distance of the whole system and save the cost of the project.
    WIRELESS FEATURES
    Environment  - Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
      - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
      - Operating Humidity: 10%~90% non-condensing
      - Storage Humidity: 5%~90% non-condensing
    Package Contents  - SW504P Desktop Switch *1
      - Power Adapter
      - Ethernet Cable *1
      - Quick Installation Guide *1
