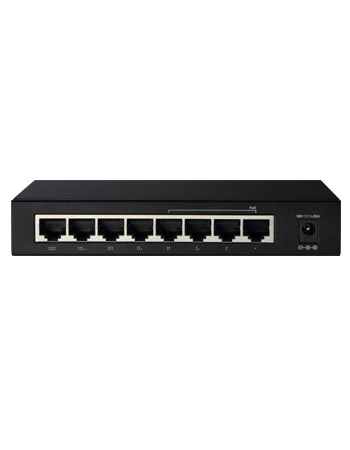

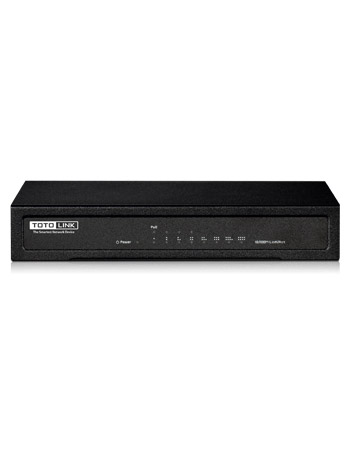

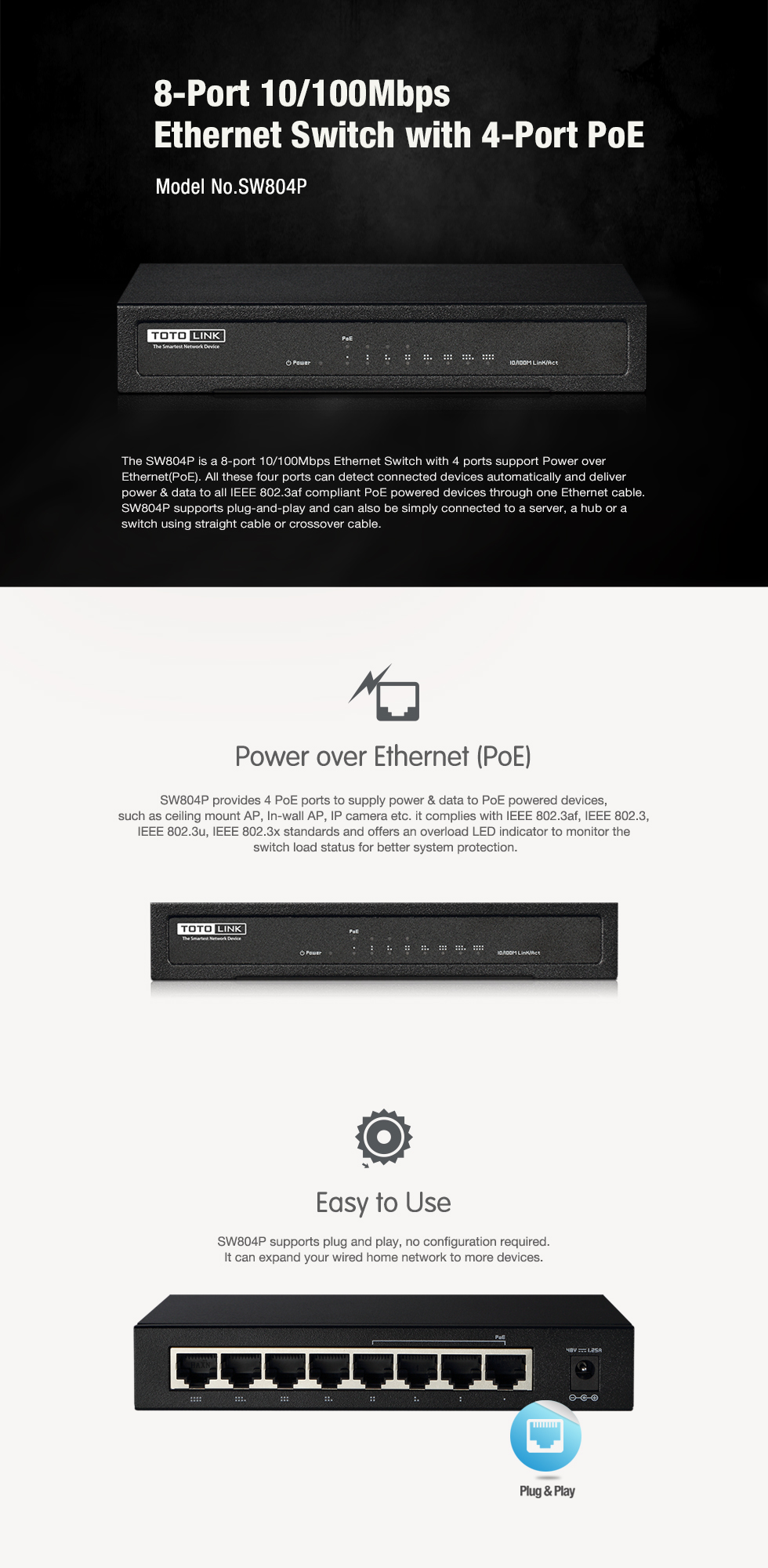

SW804P

8-Port 10/100Mbps Ethernet Switch with 4-Port PoE








  • - Complies with IEEE 802.3af, IEEE 802.3, IEEE 802.3u, IEEE 802.3x.
    - 4*10/100Mbps PoE Ports, 4*10/100Mbps auto-negotiation RJ45 Ports.
    - Up to 15.4Watt for each PoE port.
    - LED indicators for monitoring power, PoE, overload status, link and activity.
    - Metal case, desktop or wall-mounting design.
    - External power supply.
    - More power saving and higher performance.
    HARDWARE FEATURES
    Standards  IEEE 802.3af, IEEE 802.3, IEEE 802.3u, IEEE 802.3x
    Interface  4*10/100Mbps PoE Ports, 4*10/100Mbps auto-negotiation RJ-45 Ports
    Power Supply  48V, 1.25A
    LED Indicators  1*Power, 4*PoE, 1*Overload, 8* Link/Act
    Dimensions  158.4mm x 106.5mm x 27mm (L x W x H)
    Data Rate  100/100Mbps at Half/Full Duplex
    MAC Address Learning  Auto-learning, auto-aging
    Backup Bandwidth   1.6Gbps
    Transfer Method  Store and Forward
    Environment  Operating Temperature: 0℃~40℃ (32℉~104℉)
      Storage Temperature: -40~70℃ (-40℉~158℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~95% non-condensing

    All content on this website is only applicable to models selling in overseas markets (outside China mainland, Taiwan and South Korea), any model purchased from China mainland, Taiwan or South Korea caused damage by upgrading software on this website is excluded in after-sales service range.

    Datasheet

    Model Download Version Updated
    SW804P SW804P_datasheet_v1_150210.pdf Ver1.0 2015-11-17






    Quick Install Guide

    Model Download Version Updated
    SW804P SW804P QIG_V1.0.pdf ver1.0 2016-07-21







    Model Download Version Updated
    SW804P SW804P_Photo02.jpg Resolution 1200×1200 2016-11-19
    SW804P SW804P_Photo01.jpg Resolution 1200×1200 2016-11-19
