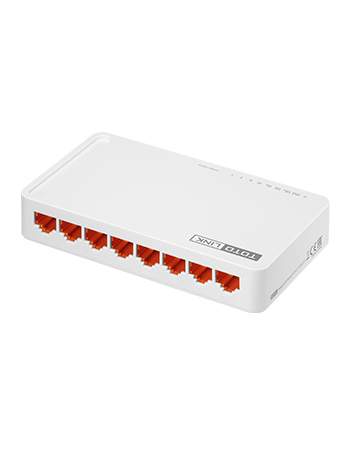

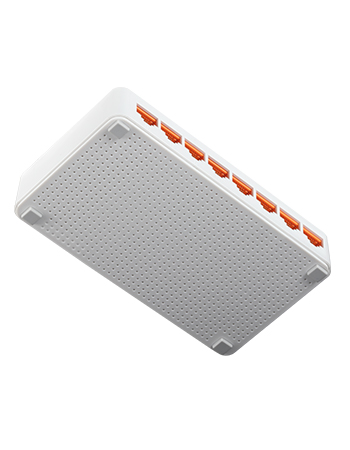

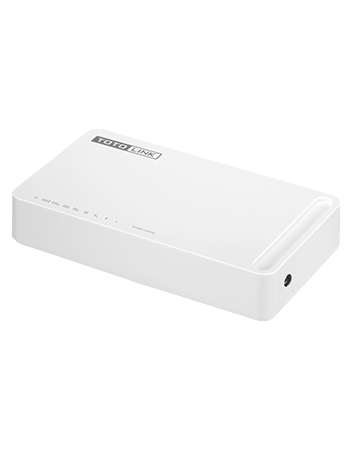

S808G

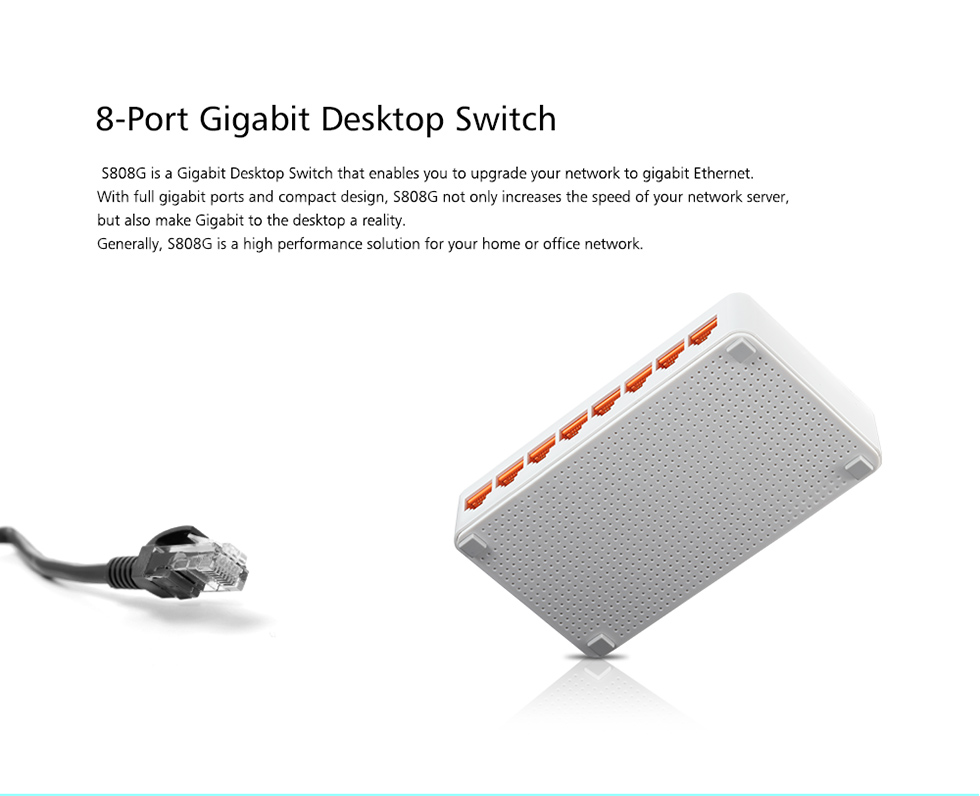

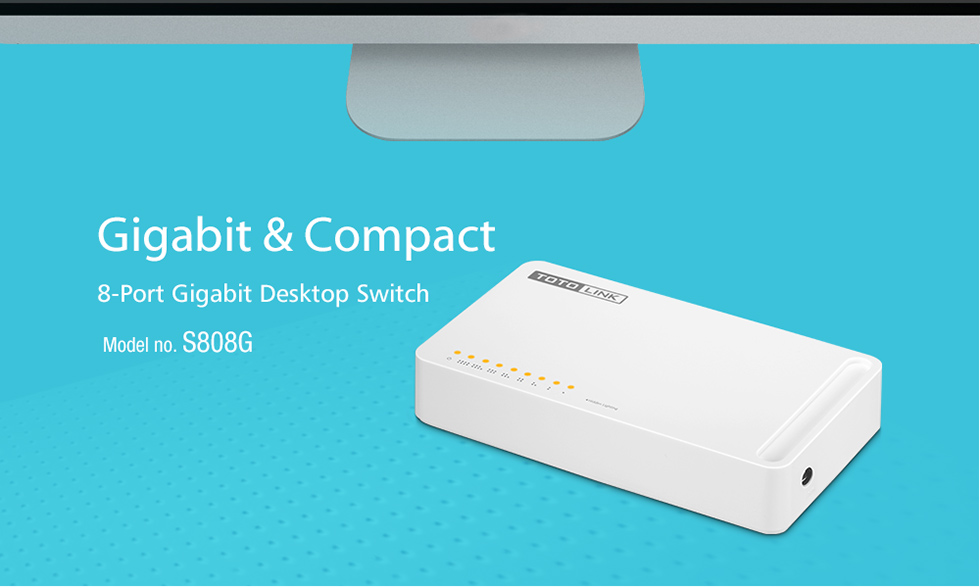

8-Port Gigabit Desktop Switch

  • - Gigabit Ethernet Speed
    - Auto MDI/MDIX

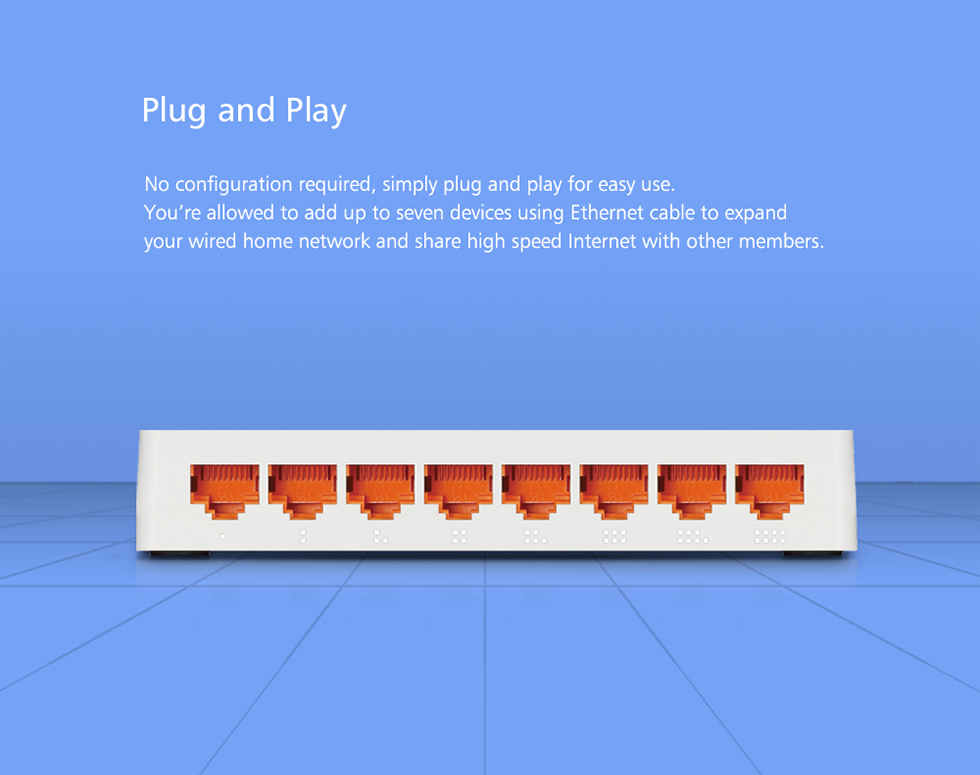

    - Plug and Play




  • - 8 10/100/1000Mbps auto-negotiated RJ45 ports

    - Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode

    - 4K entry MAC address table and automatic address learning

    - Auto-MDI/MDIX eliminates the need for crossover cables

    - Store- and-Forward Switching scheme

    - Performs non-blocking full wired speed

    - Supports Jumbo Frame (9KByte)

    - Supports IGMP Snooping

    - Supports Giga Lite to improve transfer rate for 4-wire UTP gigabit network

    HARDWARE FEATURES
    Standards  IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
    Interface  8*10/100/1000Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX)
    Power Supply  9V DC/0.5A
    Dimensions(L x W x H)   5.2 x 3.0 x 1.0 in. (132 x 75 x 25mm)
    LED  1* Power, 8*LANs
    MAC Address Learning  Auto-learning, auto-aging
    MAC Address Table  4K
    Network Media  10Base-T: UTP Cat 3, 4, 5 cable
      100BASE-TX/1000BASE-T: UTP Cat 5, 5e or above cable
    Backup Bandwidth  16Gbps
    Transmission Method  Store-and-forward
    Others
    Package Contents  S808G Desktop Switch *1
      Power Adapter
      Ethernet Cable *1
      Quick Installation Guide *1
    Environment  Operating Temperature: 0℃~40℃ (32℉~104℉)
      Storage Temperature: -40~70℃ (-40℉~158℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~95% non-condensing
