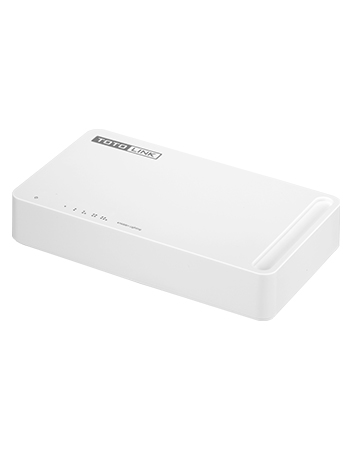

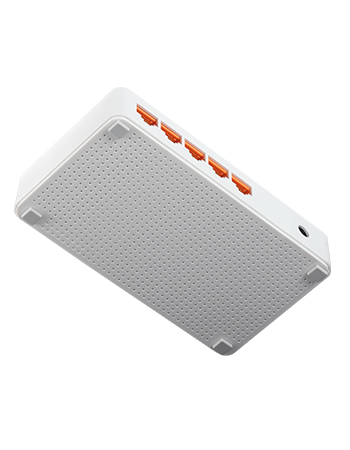

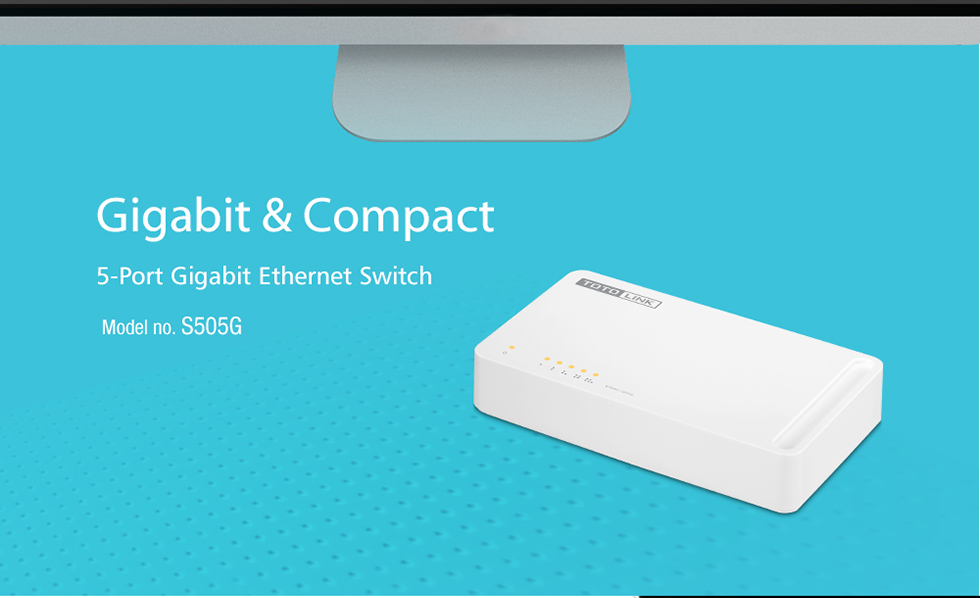

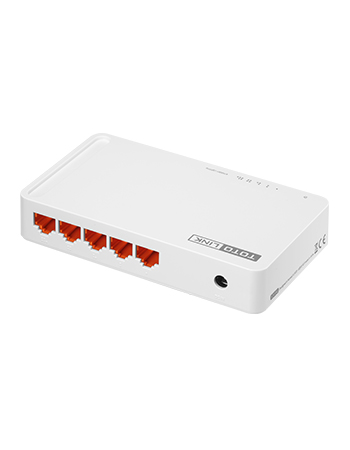

S505G

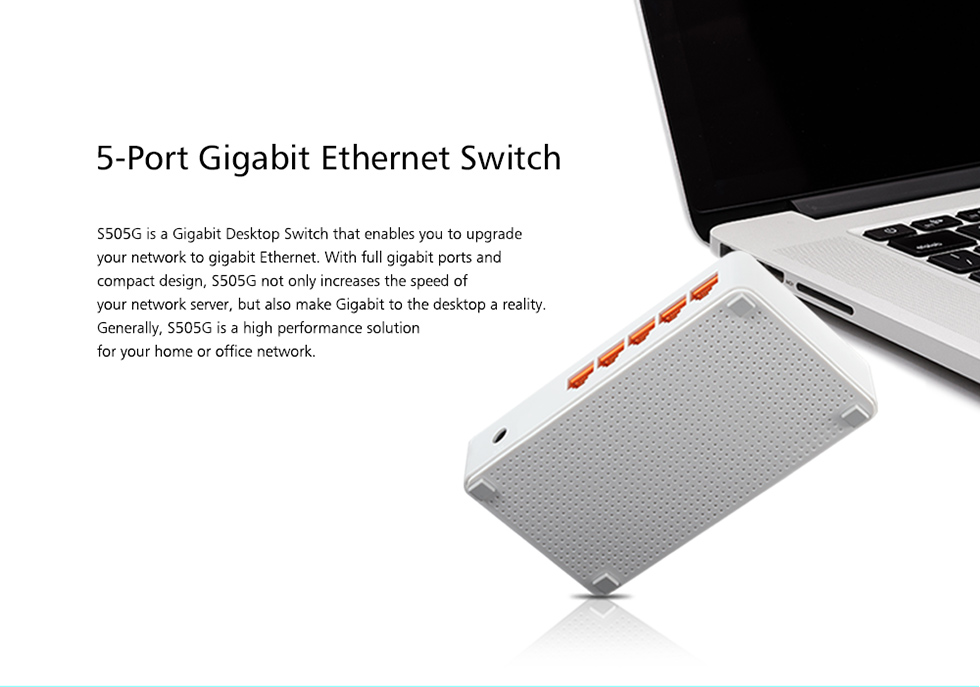

5-Port Gigabit Desktop Switch

  • - Gigabit Ethernet Speed
    - Auto MDI/MDIX

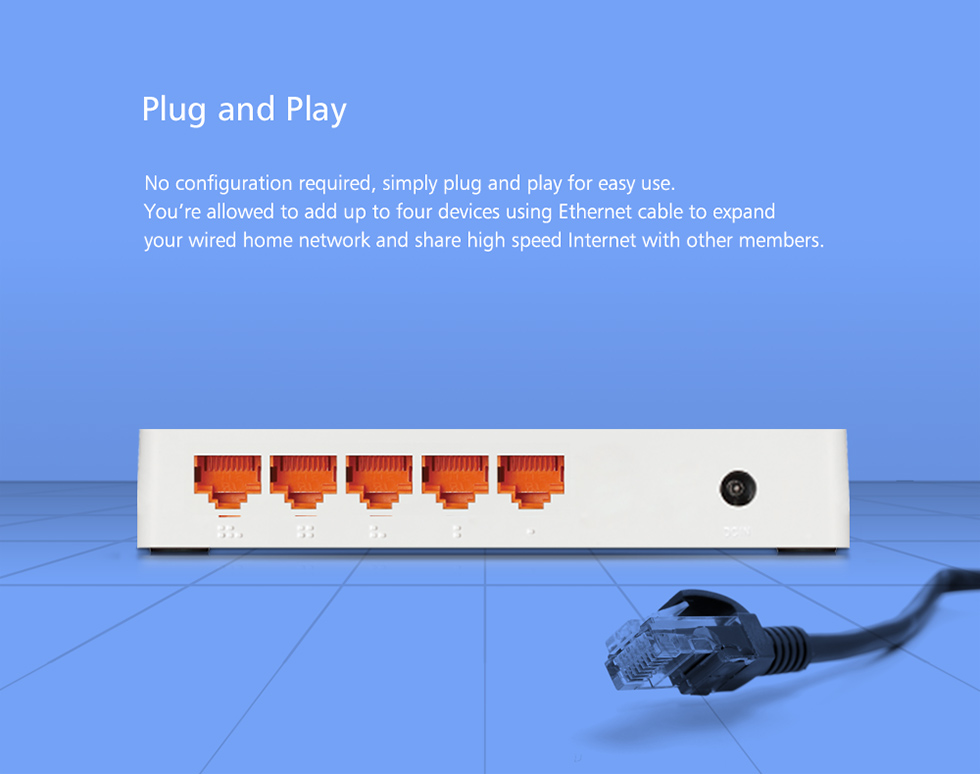

    - Plug and Play




  • - 5 10/100/1000Mbps auto-negotiated RJ45 ports.

    - Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.

    - 1K entry MAC address table and automatic address learning.

    - Auto-MDI/MDIX eliminates the need for crossover cables.

    - Store- and-Forward Switching scheme.

    - Performs non-blocking full wired speed.

    - Supports Giga Lite to improve transfer rate for 4-wire UTP gigabit network.

    HARDWARE FEATURES
    Standards  IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
    Interface  5*10/100/1000Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX)
    Power Supply  9V DC/0.5A
    Dimensions(L x W x H)   5.2 x 3.0 x 1.0 in. (132 x 75 x 25mm)
    LED  1* Power, 5*LANs
    MAC Address Learning  Auto-learning, auto-aging
    MAC Address Table  1K
    Network Media  10BASE-T: UTP Cat 3, 4, 5 cable
      100BASE-TX/1000BASE-T: UTP Cat 5, 5e or above cable
    Backup Bandwidth  10Gbps
    Transmission Method  Store-and-forward
    Others
    Package Contents  S505G Desktop Switch *1
      Power Adapter
      Ethernet Cable *1
      Quick Installation Guide *1
    Environment  Operating Temperature: 0℃~40℃ (32℉~104℉)
      Storage Temperature: -40~70℃ (-40℉~158℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~95% non-condensing

    All content on this website is only applicable to models selling in overseas markets (outside China mainland, Taiwan and South Korea), any model purchased from China mainland, Taiwan or South Korea caused damage by upgrading software on this website is excluded in after-sales service range.

    Datasheet

    Model Download Version Updated
    S505G S505G_datasheet_V2.pdf Ver2.0 2016-12-08






    Quick Install Guide

    Model Download Version Updated
    S505G S505G QIG Ver1.0.pdf ver1.0 2016-07-21







    Model Download Version Updated
    S505G S505G_Photo003.jpg Resolution 1200×1200 2016-11-21
    S505G S505G_Photo002.jpg Resolution 1200×1200 2016-11-21
    S505G S505G_Photo001.jpg Resolution 1200×1200 2016-11-21
