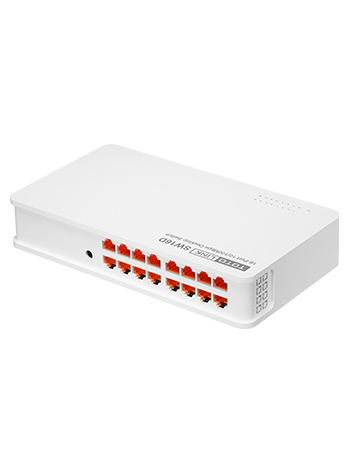

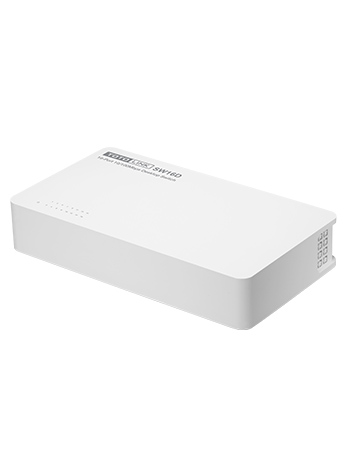

16-Port 10/100Mbps Desktop Switch

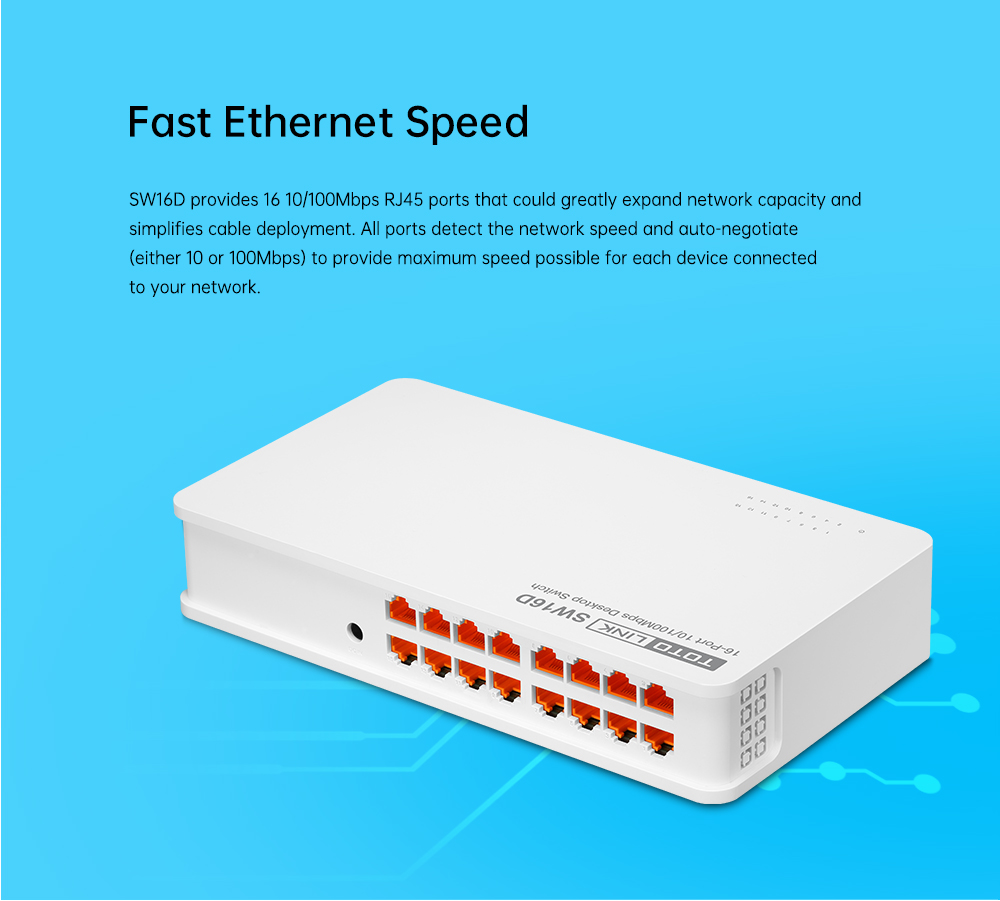

  • - Fast Ethernet Speed
    - Auto MDI/MDIX

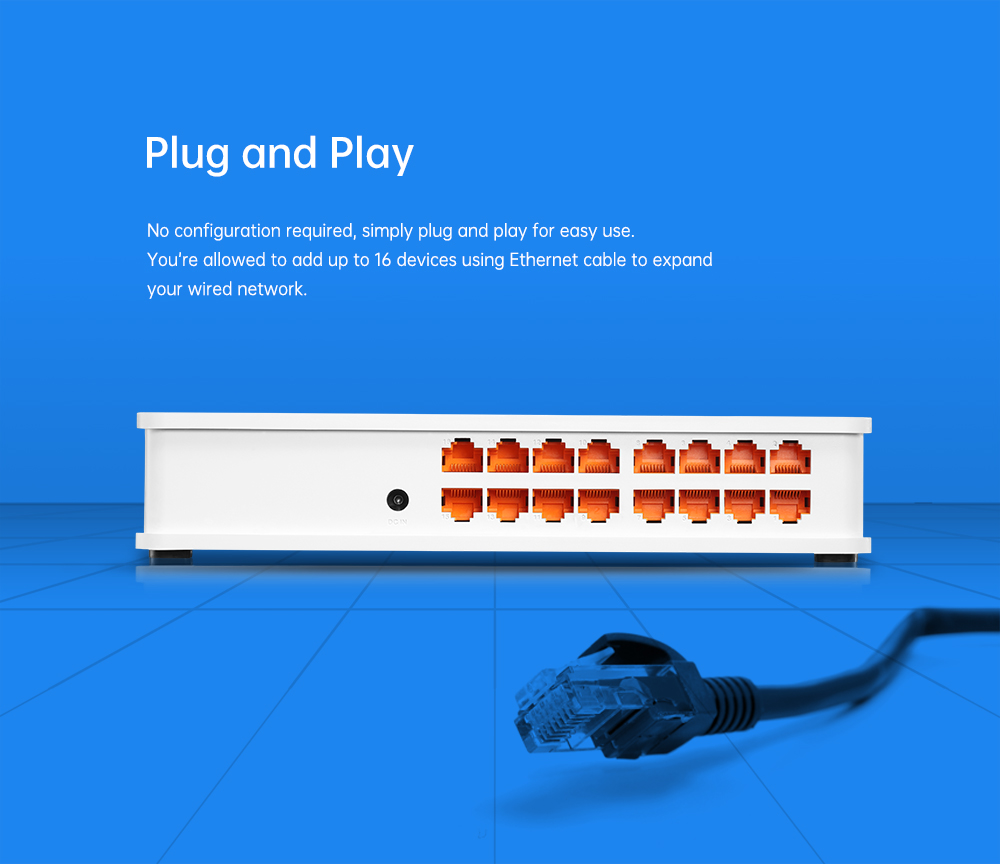

    - Plug and Play

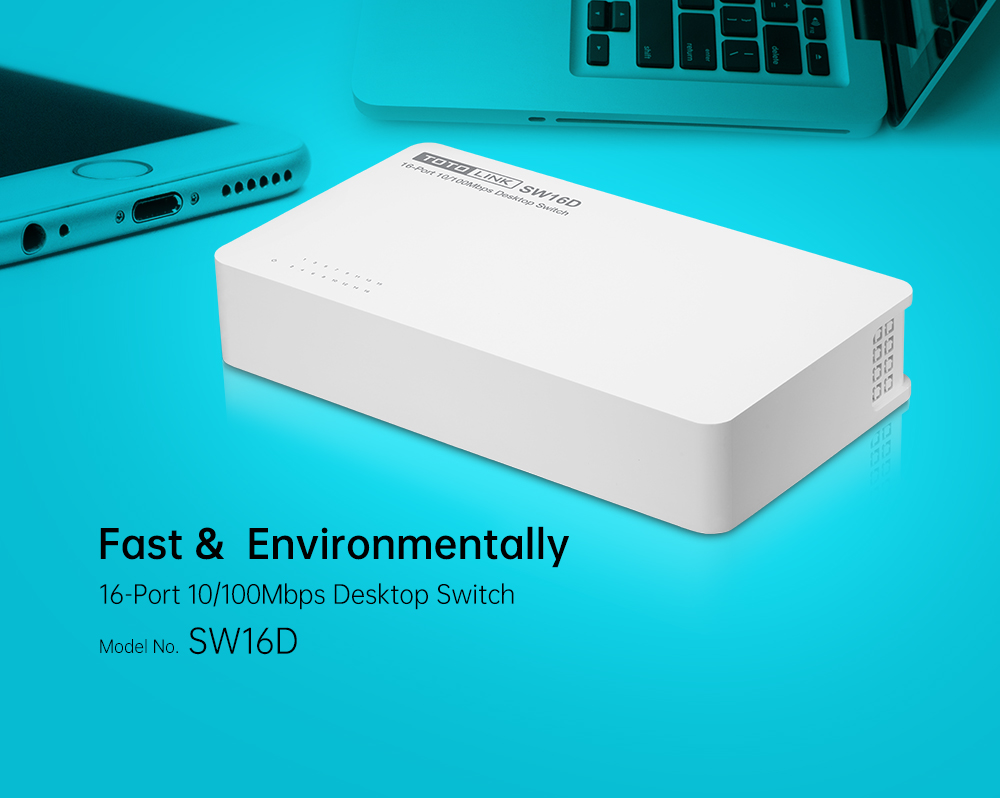

    - Environmentally Protection

  • - 16 10/100Mbps auto-negotiated RJ45 ports.

    - Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.

    - 4K entry MAC address table and automatic address learning.

    - Auto-MDI/MDIX eliminates the need for crossover cables.

    - Store- and-Forward Switching scheme.

    - Performs non-blocking full wired speed.

    - Supports IGMP Snooping.

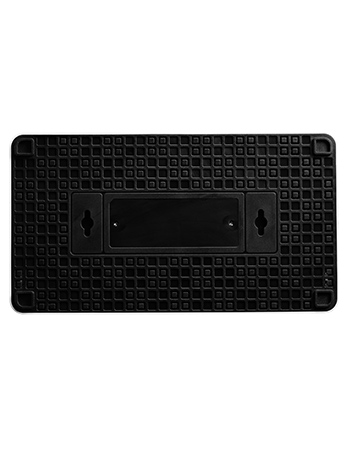

    - Desktop and wall-mounting design.

    Standards  IEEE 802.3, IEEE 802.3u, IEEE 802.3x, CSMA / CD

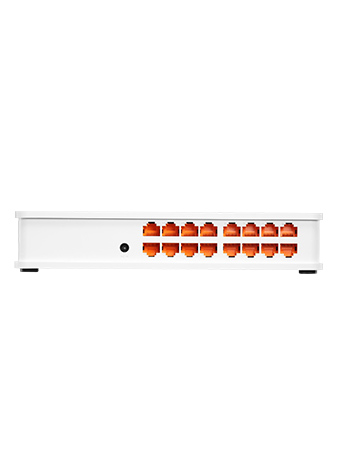

    Interface  16*10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
    Power Supply  9V DC/800mA

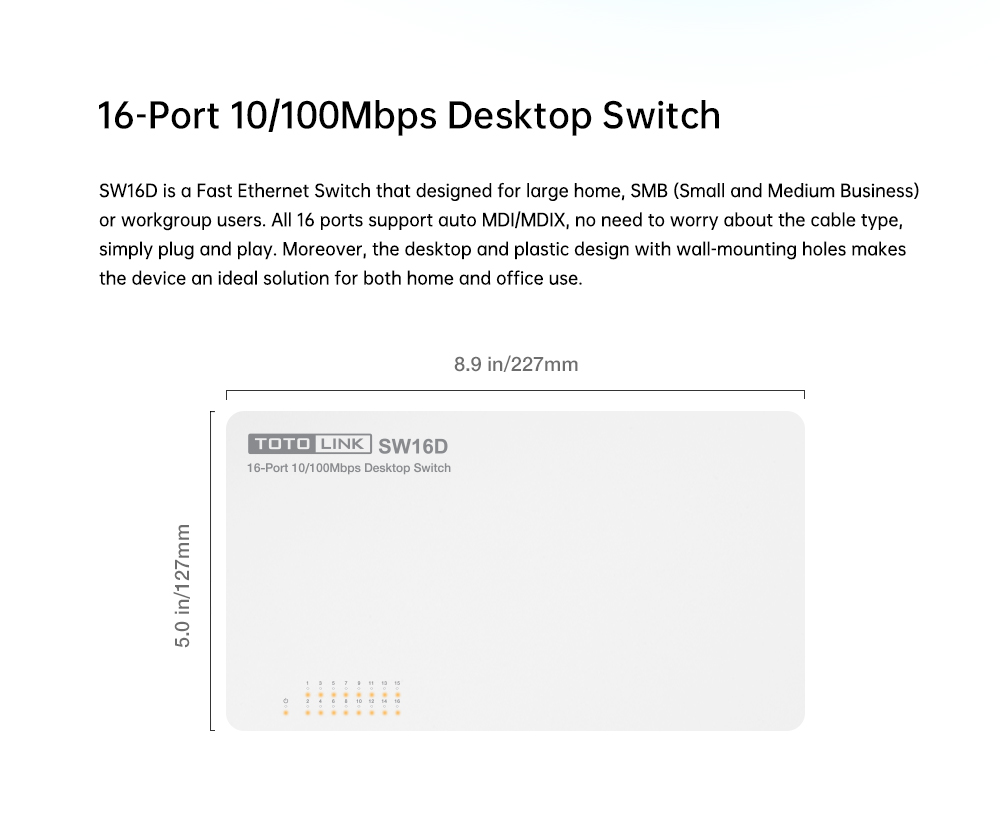

    Dimensions(L x W x H)  8.9 x 5.0 x 1.8in. (227 x 127 x 45mm)
    LED Indicators  1*Power, Link/Act (1~16)
    MAC Address Learning  Auto-learning, auto update
    Multicast  IGMP Snooping
    MAC Address Table  4K
    Switching Capacity  3.2Gbps
    Network Media  10BASE-T: UTP Cat 3, 4, 5 cable
      100BASE-TX: UTP Cat 5, 5e or above cable
    Frame Filtering  10Mbps: 14,880pps
      100Mbps: 148,800pps
    Transfer Method  Store-and-Forward
    Environment  Operating Temperature: 0℃~40℃ (32℉~104℉)
      Storage Temperature: -40~70℃ (-40℉~158℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~95% non-condensing
    Package Contents  SW16D Desktop Switch
      Power Adapter
      Quick Installation Guide
