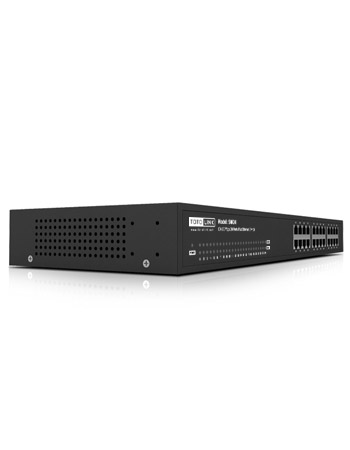

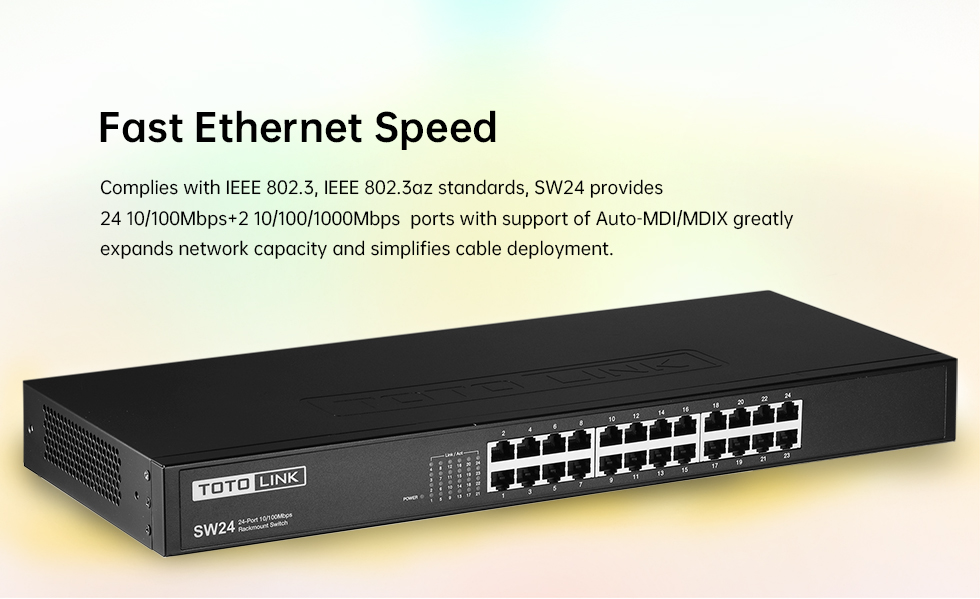

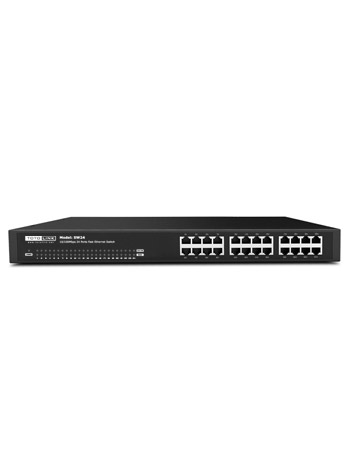

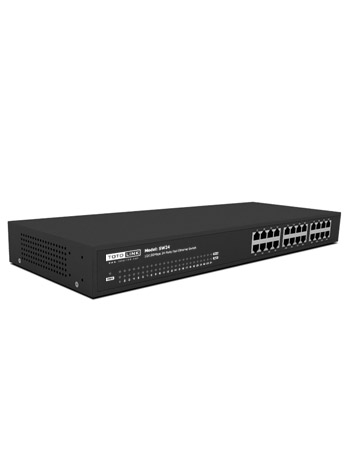

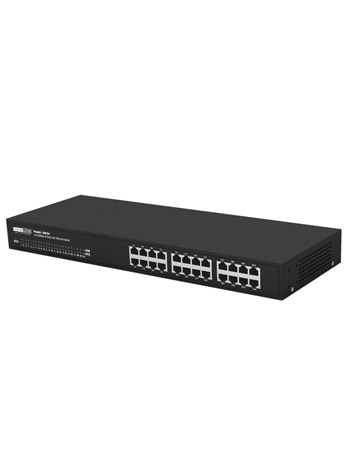

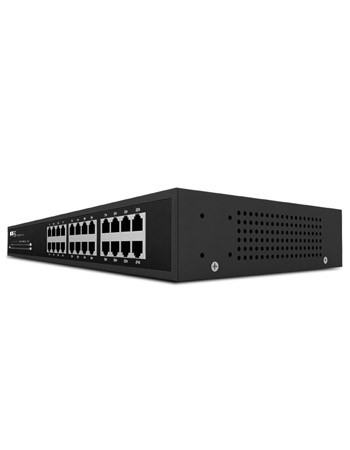

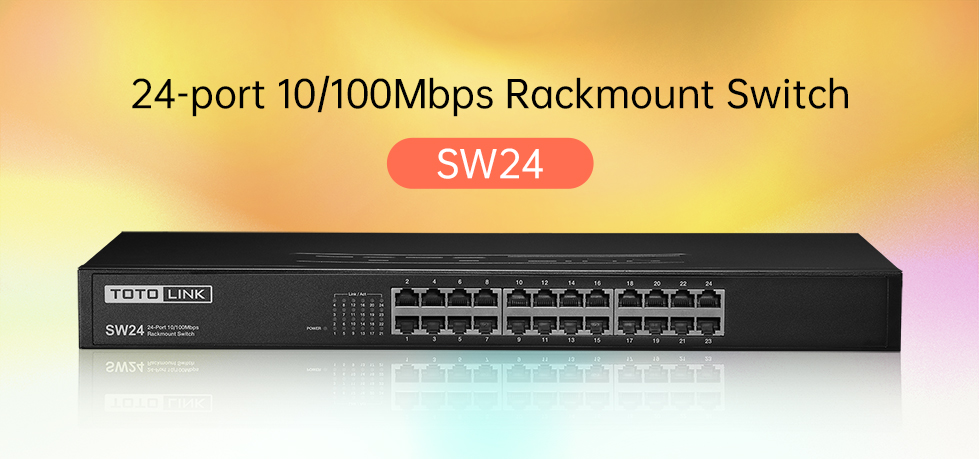

24-Port 10/100Mbps Unmanaged Switch

  • - Complies with IEEE 802.3, IEEE 802.3u and IEEE 802.3x standards.
    - Provides 24 10/100Mbps auto-negotiation ports.
    - Supports IEEE 802.3x flow control for full duplex mode and backpressure for half-duplex mode.
    - Supports MAC address auto-learning and auto-aging.
    - LED indicators for monitoring power, link and activity.
    - Plastic case, desktop or wall-mounting design.

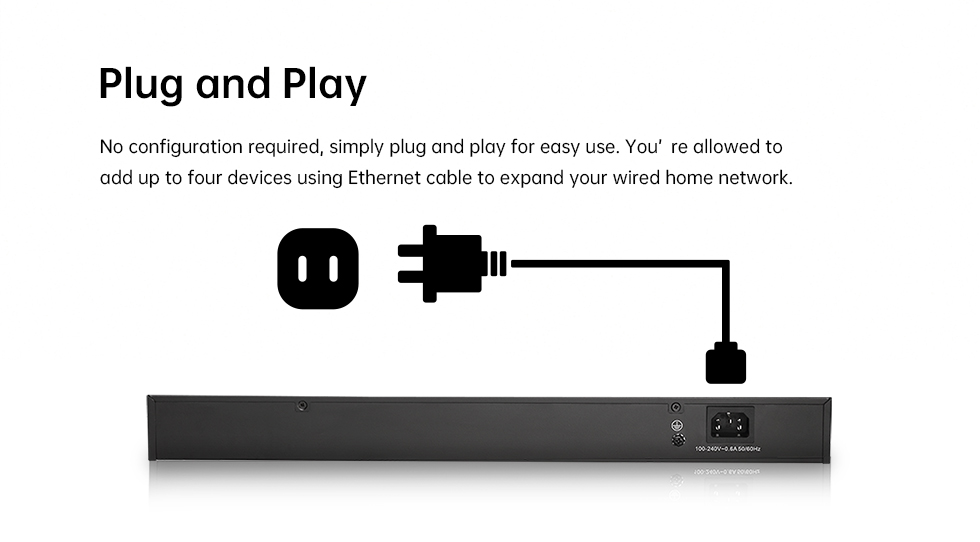

    - External power supply.
    Standards  IEEE 802.3, IEEE 802.3u, IEEE 802.3x
    Interface  24*10/100Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX)
    Power Supply  3.3V DC/2A
    Dimensions  440mm x 160.2mm x 44.6mm (L x W x H)
    LED  Power, Link/Activity
    MAC Address Learning  Auto-learning, Auto update
    MAC Address Table  8K
    Network Media  10Base-T: UTP Cat 3, 4, 5 cable (100m, max.)
      EIA/TIA-568 100Ω STP (100m max.)
      100Base-Tx: UTP Cat 5, 5e cable (100m, max.)
      EIA/TIA-568 1100Ω STP (100m max.)
    Backup Bandwidth  4.8Gbps
    Transmission Method  Store-and-forward
    Environment  Operating Temperature: 0℃~40℃ (32℉~104℉)
      Storage Temperature: -40~70℃ (-40℉~158℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~95% non-condensing
