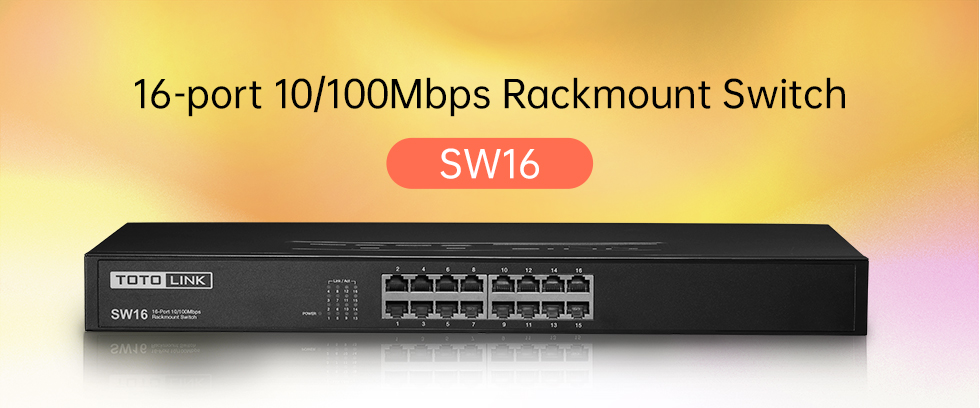

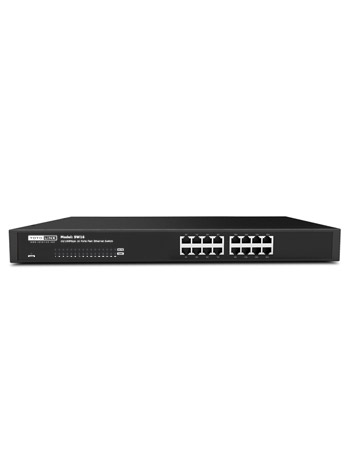

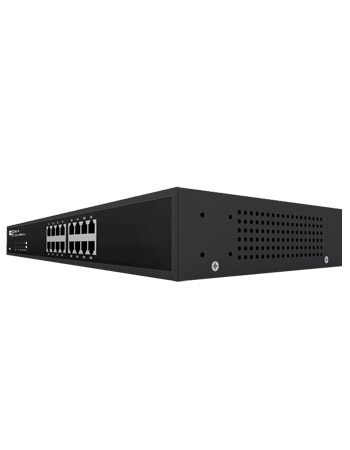

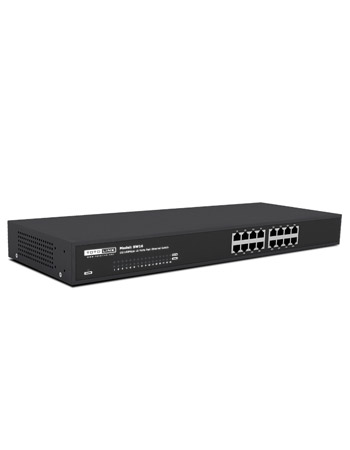

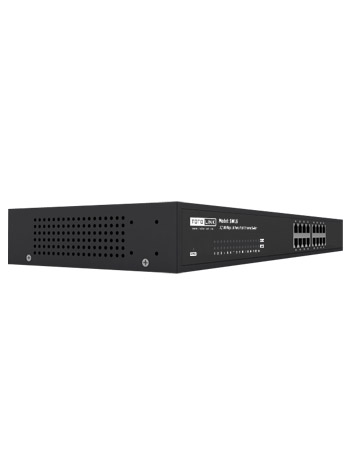

SW16

16-Port 10/100Mbps Unmanaged Switch








  • - Complies with IEEE 802.3, IEEE 802.3u and IEEE 802.3x standards.

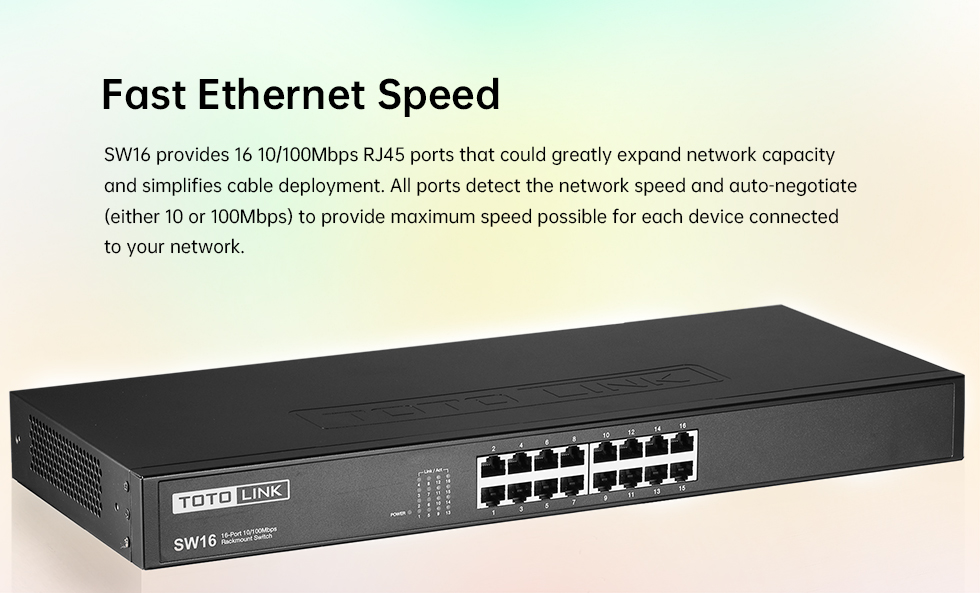

    - Provides 16 10/100Mbps auto-negotiation ports.
    - Supports IEEE 802.3x flow control for full duplex mode and backpressure for half-duplex mode.
    - Supports MAC address auto-learning and auto-aging.
    - LED indicators for monitoring power, link and activity.
    - Plastic case, desktop or wall-mounting design.

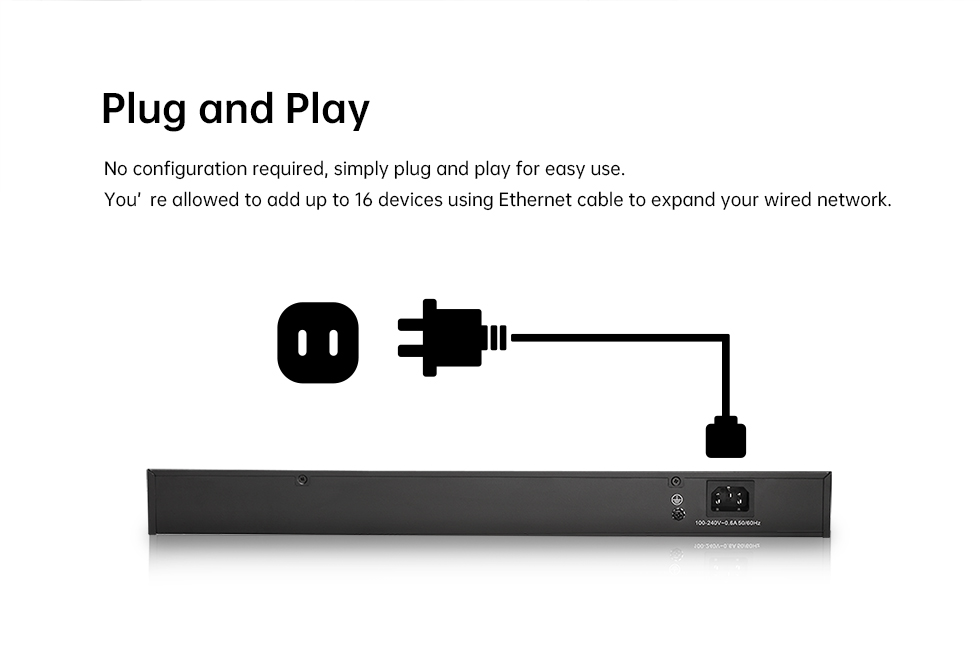

    - External power supply.
    HARDWARE FEATURES
    Standards  IEEE 802.3, IEEE 802.3u, IEEE 802.3x
    Interface  16*10/100Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX)
    Power Supply  3.3V DC/2A

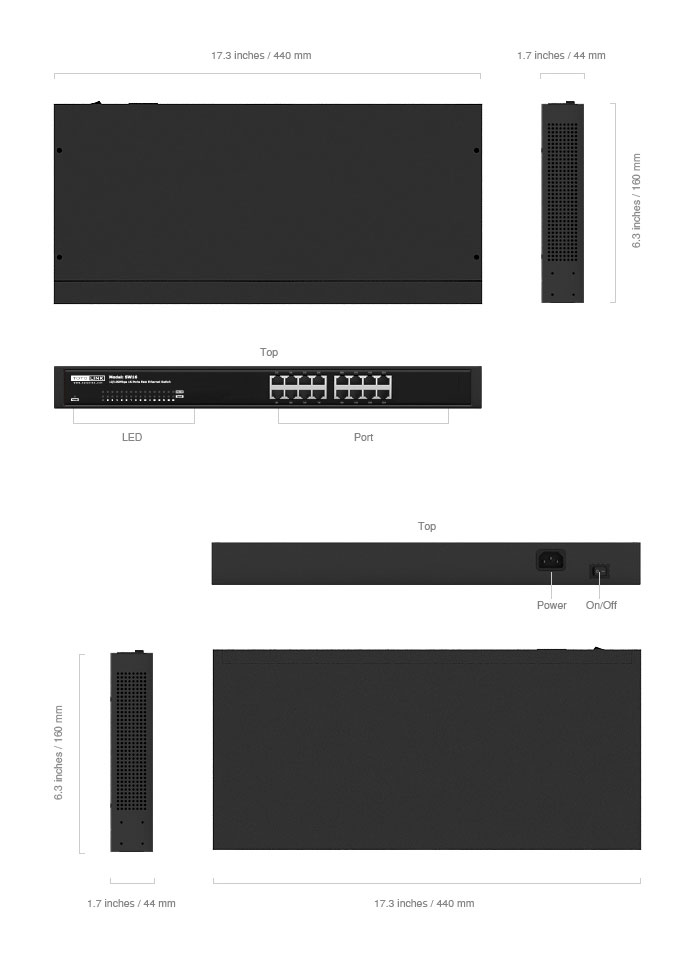

    Dimensions  440mm x 160.2mm x 44.6mm (L x W x H)
    LED  Power, Link/Activity
    MAC Address Learning  Auto-learning, auto update
    MAC Address Table  8K
    Network Media  10Base-T: UTP Cat 3, 4, 5 cable (100m, max.)
      EIA/TIA-568 100Ω STP (100m max.)
      100Base-Tx: UTP Cat 5, 5e cable (100m, max.)
      EIA/TIA-568 1100Ω STP (100m max.)
    Backup Bandwidth  3.2Gbps
    Transmission Method  Store-and-forward
    Environment  Operating Temperature: 0℃~40℃ (32℉~104℉)
      Storage Temperature: -40~70℃ (-40℉~158℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~95% non-condensing

    All content on this website is only applicable to models selling in overseas markets (outside China mainland, Taiwan and South Korea), any model purchased from China mainland, Taiwan or South Korea caused damage by upgrading software on this website is excluded in after-sales service range.

    Datasheet

    Model Download Version Updated
    SW16 SW16_datasheet_v1.pdf ver1.0 2016-06-14






    Manual

    Model Download Version Updated
    SW16 SW24 User Manual_1.doc ver1.0 2016-07-21






    Quick Install Guide

    Model Download Version Updated
    SW16 SW16 QIG Ver1.0.pdf ver1.0 2016-07-21







    Model Download Version Updated
    SW16 SW16_Photo003.jpg Resolution 600x600 2014-03-19
    SW16 SW16_Photo002.jpg Resolution 600x600 2014-03-19
    SW16 SW16_Photo001.jpg Resolution 600x600 2014-03-19
