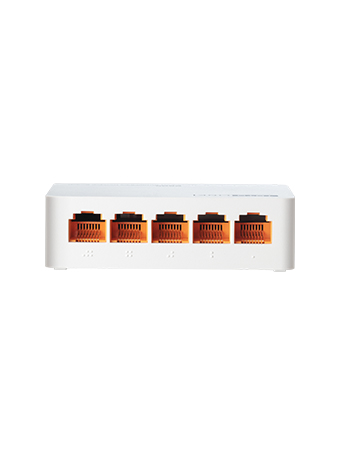

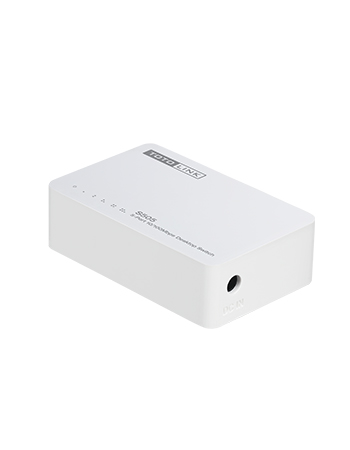

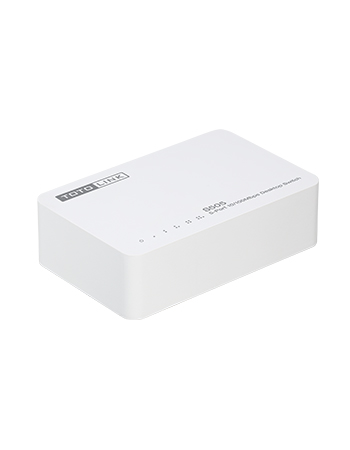

S505

5-Port 10/100Mbps Desktop Switch

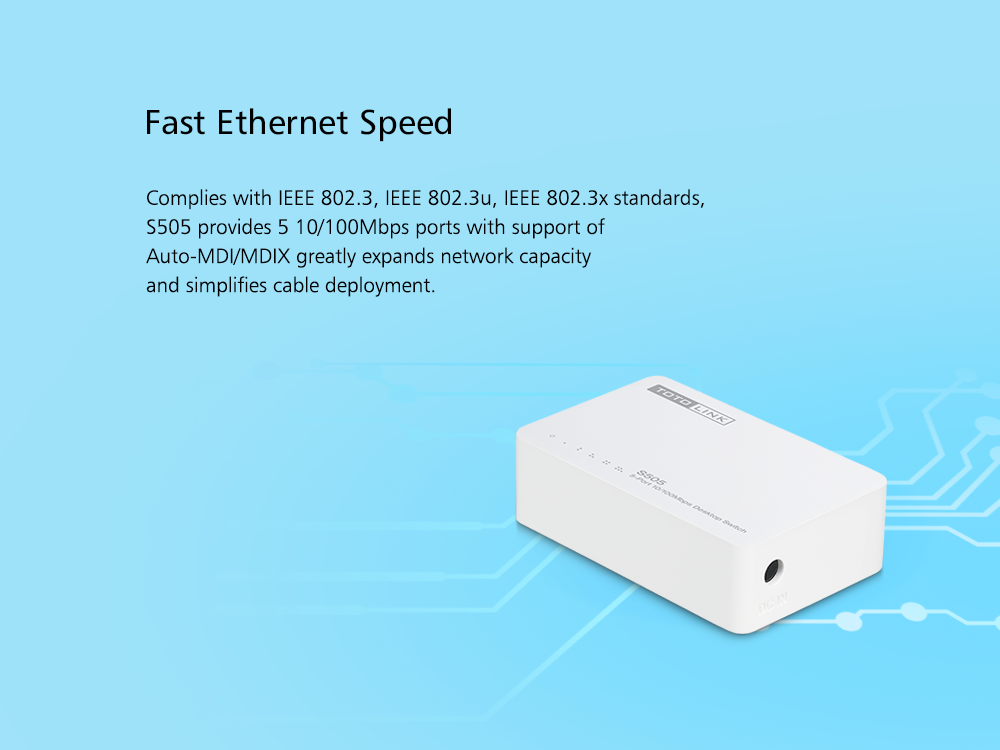

  • - Fast Ethernet Speed

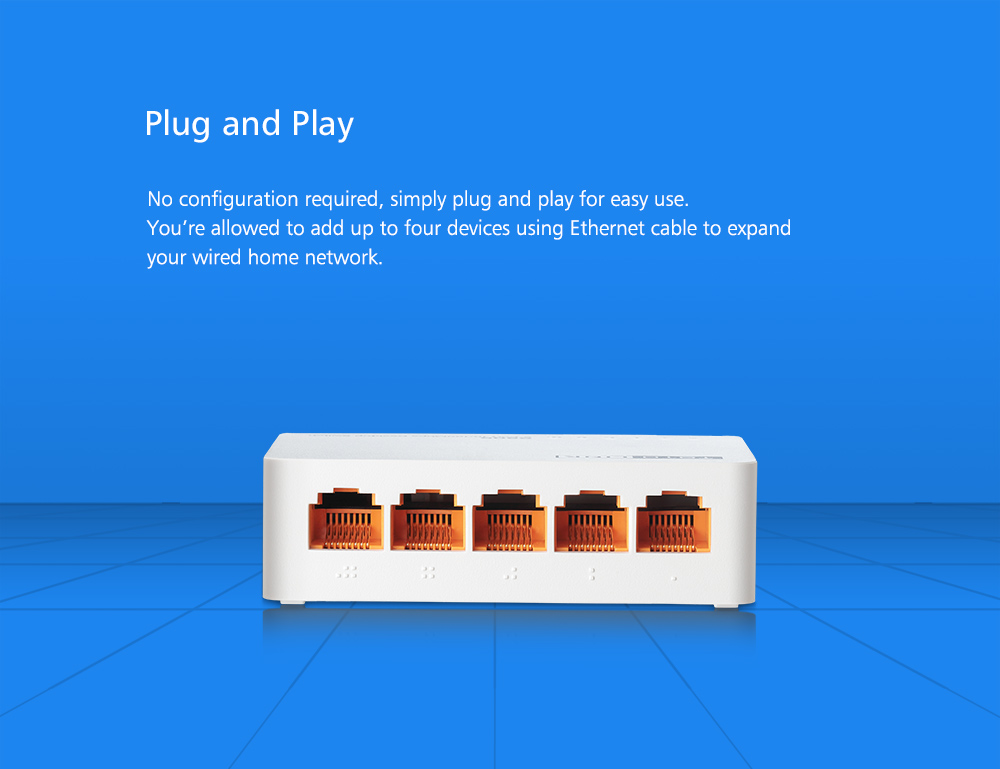

    - Plug and Play





  • - 5 10/100Mbps auto-negotiated RJ45 ports.

    - Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.

    - Mini plastic design supports desktop placement or wall mount.

    - 1K entry MAC address table and automatic address learning.

    - Auto-MDI/MDIX eliminates the need for crossover cables.

    - Store- and-Forward switching scheme.

    - Performs non-blocking full wired speed.

    HARDWARE FEATURES
    Standards  IEEE 802.3, IEEE 802.3u, IEEE 802.3x
    Interface  5*10/100Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX)
    Power Supply  5V DC/0.6A

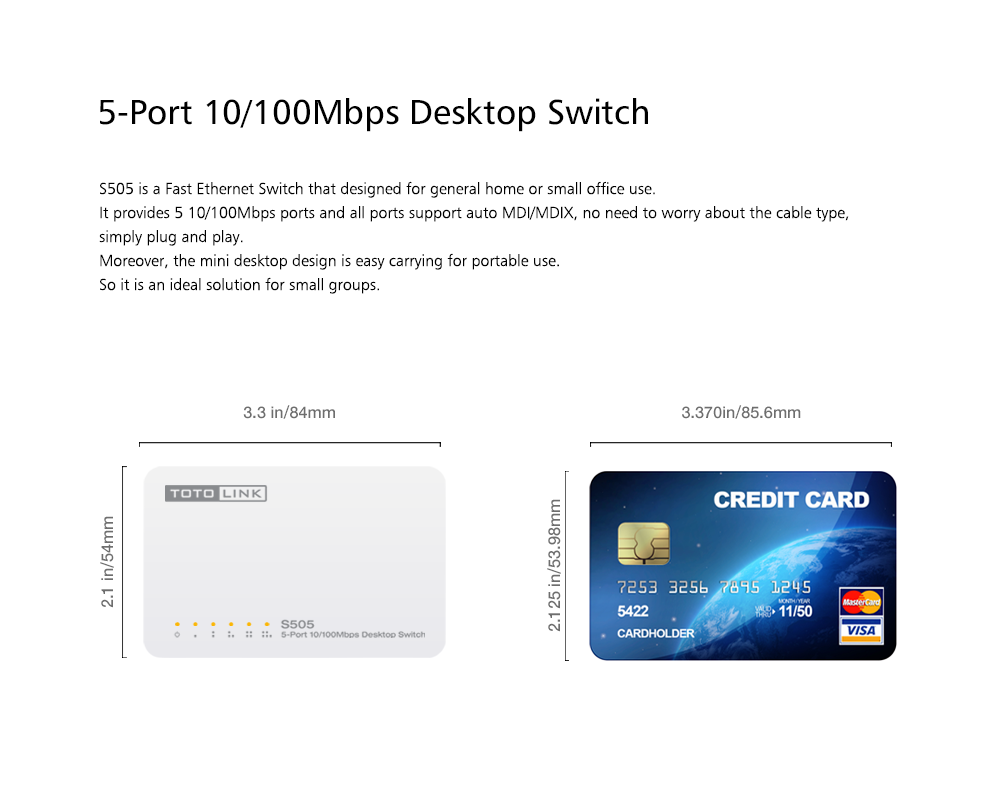

    Dimensions(L x W x H)   3.3 x 2.1 x 1.0in. (84 x 54 x 25mm)
    LED  1* Power, 5*LANs
    MAC Address Learning  Auto-learning, auto-aging
    MAC Address Table  1K
    Network Media  10BASE-T: UTP Cat 3 or above cable
      100BASE-TX: UTP Cat 5, 5e or above cable
    Backup Bandwidth  1Gbps
    Transmission Method  Store-and-forward
    Others
      S505 Desktop Switch *1
      Power Adapter
      Ethernet Cable *1
      Quick Installation Guide *1
    Environment  Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
      Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~90% non-condensing
