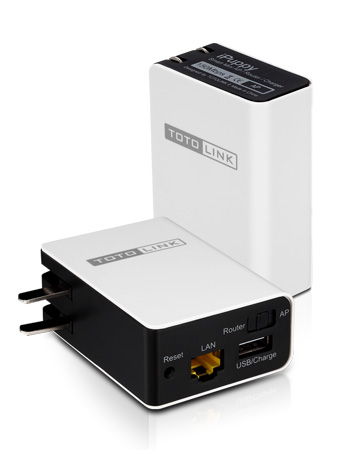

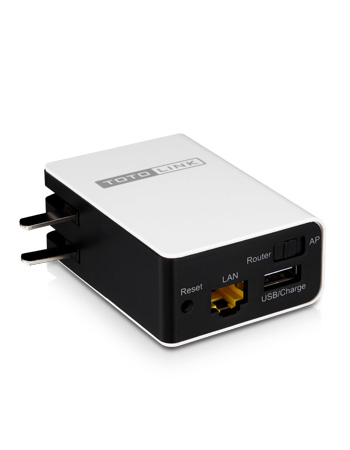

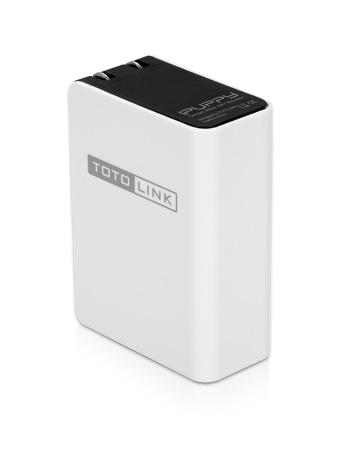

iPuppy

150Mbps Wireless N Portable AP

  • - Easy to Carry and Use
    - Flexibly Router /AP Mode Switching
    - USB Power Supply
    - Effective Multi-SSID function
    - Universal Repeater
    - Robust Security

  • iPuppy is a 150Mbps Wireless N Portable AP which allows users to access Internet by DHCP/PPPoE/Static IP. With the small size and foldable plug design, it is space-efficient and very suitable for travelers and home users to access Internet. It can supply power to Smart Phones and Pad, such as iPhone, Android Phone, iPad etc.. Besides, it can be used as a repeater to expand the wireless coverage to hard-to-reach area.



    Easy to Carry and Use
    With the compact size and retractable plug, iPuppy is very convenient for users who likes travelling or often on business. It is small enough to put it into your pocket and take it on the road. Besides, the device can be use as a Wireless AP by default without complex configuration and Internet access can be realized only by two steps, just connect to existing network cable and plug into the power outlet.



    Flexibly Router /AP Mode Switching
    The slide switch is provided so that you can switch the AP or Router mode easily. It is quite simple and practical for you to realize internet access easily without configuration on the router’s setup interface.



    USB Power Supply
    iPuppy can excellently supply power for many Smart Phones and Pad by USB/Charger port. It offers 5V/2A for the power supply of external devices. As long as you take iPuppy, you needn’t worry about internet access issue and no need to carry an extra power adapter for your phone.



    Effective Multi-SSID function
    Multi-SSID function is designed for users who want to set up extra wireless networks for guests or friends with better access control. Different SSIDs and passwords help to protect your network security from guests. It supports up to 3 SSIDs which is very convenient and without conflict with each network. Generally, it is easy maintenance for manager in those companies which consist of many different departments.



    Universal Repeater
    The long distance will weaken the router’s signals so that it seems impossible for you to connect to the Internet in another room. However, the router can be used as a universal repeater, which allows you to repeat the wireless signal from existing WiFi routers or wireless network devices such as laptops and tablets. Any signal picked up by the repeater is rebroadcast, then significantly extend the wireless coverage and allow more terminals to access Internet.



    Robust Security
    The most advanced WPA/WPA2 (TKIP/AES) encryption is provided to ensure the security of wireless connection. Only the users who known the SSID and encryption key can connect to the network, so that users needn’t worry about being occupied by others. What’s more, to keep the Internet browsing experience safe, it provides IP/MAC/URL filter to strengthen the security outside and inside the network.

    - Complies with IEEE 802.11n and IEEE 802.11g/b standards for 2.4GHz Wireless LAN.
    - Up to 150Mbps data rate for Wi-Fi network.
    - The USB/Charge port can supply power for many Smart Phones and Pads.
    - Supports PPPoE, DHCP and Static IP broadband functions.
    - Provides 64/128-bit WEP, WPA, WPA2 and WPA/WPA2 (TKIP+AES) security.
    - Multi-SSID allows user to add other SSIDs for guests according to their needs.
    - Supports IP/Port, MAC, URL filtering and Port Forwarding.
    - WDS mode makes it simple for WLAN expansion.
    - Router/AP slide switch allows users to enjoy wireless Internet access in different environment.
    - Repeater function allows more PCs to surf Internet.
    - Compact design, easily portable.
    - Easy to install and configure.
    HARDWARE FEATURES
    Interface  1*100BaseTX (Auto MDI/MDIX) LAN & WAN mixed
      1*USB 2.0/Charge Port
    Power Supply  Output : 5V DC/2A
      Input : 100V~240V
    Button  Reset Button, Router/AP mode Slide Switch
    LED Indicator  1*Status (internal)
    Antenna  1*Internal Antenna
    Environment  Operating Temperature: 0℃~55℃ (32℉~131℉)
      Storage Temperature: -20~65℃ (-4℉~149℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~95% non-condensing
    WIRELESS FEATURES
    Standards  IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
    RF Frequency  2.4~2.4835GHz
    Data Rate  802.11n: Up to 150Mbps
      802.11g: Up to 54Mbps (dynamic)
      802.11b: Up to11Mbps (dynamic)
    Wireless Security  64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
    Output Power  20dBm (Max.)
    Channels  1-11 (North America), 1-13 (General Europe), 1-14 (Japan)
    Modulation Type  DBPSK, DQPSK, CCK and OFDM (BPSK,QPSK,16-QAM/ 64-QAM)
    Reception Sensitivity  135M: -65 dBm@10% PER
      54M: -68 dBm@10% PER
      11M: -85 dBm@8% PER
      6M: -88 dBm@10% PER
      1M: -90 dBm@8% PER
    SOFTWARE FEATURES
    Network Settings   WAN Interface
      LAN Interface/DHCP Server
    Wireless  Wireless Basic Settings
      Multiple BSS
      Wireless Multibridge: Repeater bridge/Repeater/WDS
      MAC Authentication
      Advanced Settings
    Firewall  Access Control
      IP/Port Filtering
      MAC Filtering
      URL Filtering
      Port Trigger
      Port Forwarding
      DMZ
    Management  Upgrade Firmware
      DDNS
      Time Zone Settings
      System log
      Save/Reload Settings
      Password
      Reboot
