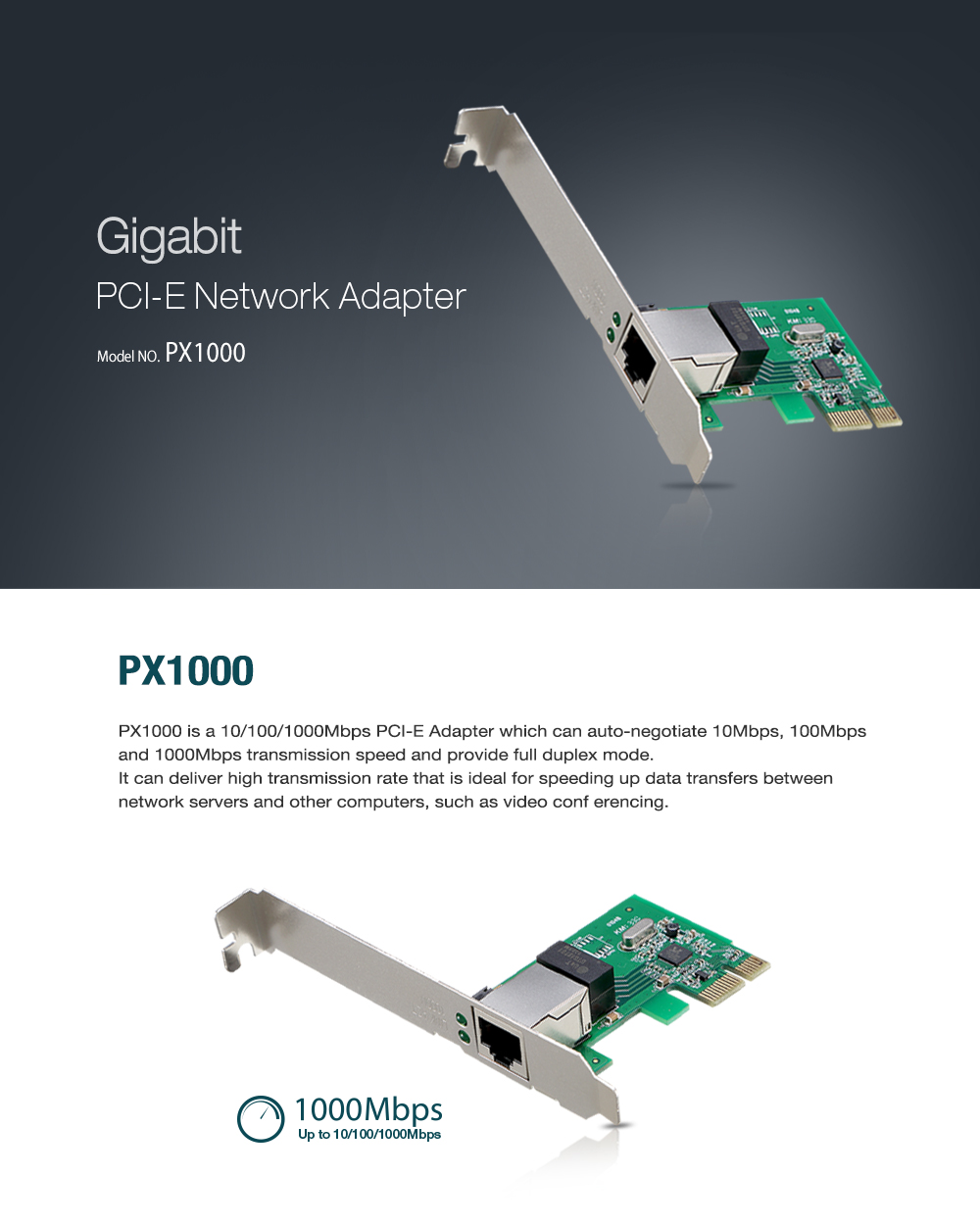

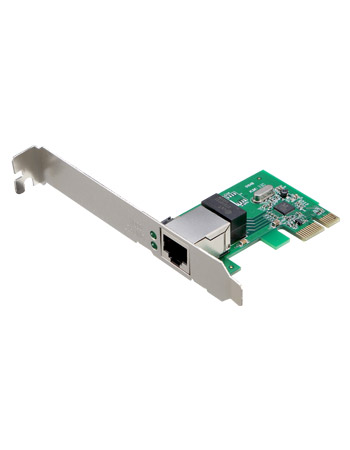

PX1000

Gigabit PCI-E Network Adapter








  • - Complies with IEEE 802.3/802.3u/802.3ab standards.

    - Integrates 10/100/1000Mbps transceiver.

    - Supports PCI-E slot.

    - Crossover Detection & Auto-correction.

    - Supports wake-on-LAN and remote wake-up.

    - Supports Full Duplex flow control (IEEE8.2.3x).

    - Supports transmission/receiving FIFO (8K/64K).

    - Supports Windows XP/Vista/7, Linux.

    HARDWARE FEATURES
    Standards  IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
    Port  1*10/100/1000Mbps STP / UTP port
    Transmission Rate  10/100/1000Mbps for Full-Duplex mode
    Network Interface  PCI-E
    LED Indicator  1*10M (Link/Activity/Speed) LED
      1*100M (Link/Activity/Speed) LED
      1*1000M (Link/Activity/Speed) LED
      1*FDX (Full Duplex) LED
    Package Contents  PX1000 Network Adapter *1
      Resource CD *1
      Low Profile Bracket *1
    System Requirement  Windows 10 (32/64bits), Windows 8 (32/64bits), Windows 7 (32/64bits), Windows XP (32/64bits)
      Mac OS X 10.4~10.7
    Environment  Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
      Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~90% non-condensing

    All content on this website is only applicable to models selling in overseas markets (outside China mainland, Taiwan and South Korea), any model purchased from China mainland, Taiwan or South Korea caused damage by upgrading software on this website is excluded in after-sales service range.

    Driver

    Model Download Version Updated
    Mac PX1000_MacOS10.4_MacOS10.7_Driver(Intel CPU).rar   2017-11-29
    PX1000 PX1000_Driver Windows 10.zip Windows 10 2016-06-15
    PX1000 PX1000_Driver Windows 8.zip Windows 8 2016-06-15
    PX1000 PX1000_Driver Windows 7.zip Windows 7 2016-06-15
    PX1000 PX1000_Driver Windows Vista.zip Windows Vista 2016-06-15
    PX1000 PX1000_Driver Windows XP.zip Windows XP 2016-06-15
















    Datasheet

    Model Download Version Updated
    PX1000 PX1000_datasheet_v1_2.0.pdf Ver1.0 2015-12-26







    Model Download Version Updated
    PX1000 PX1000_Photo001.jpg Resolution 1200×1200 2016-11-19
