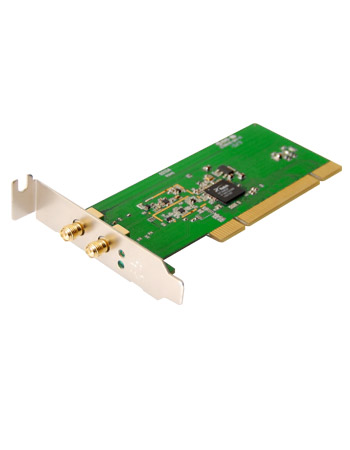

300Mbps Wireless N PCI Adapter

  • - Complies with IEEE 802.11n/g/b standards for 2.4GHz wireless LAN.- Up to 300Mbps data rate for Wi-Fi network.
    - Advanced MIMO technology ensures the transmit/receive signal’s stability.
    - Works with all existing network infrastructure.
    - Adopts PCI interface, easy to assemble for embedded using.
    - Supports advanced WPA/WPA2, WPA-PSK/WPA2-PSK encryption.
    - Transmission coverage up to 100m indoor and 300m outdoor.
    - Supports Windows 10/8/7/XP/Vista and Linux.
    - Easy to install and configure.
    Interface  PCI

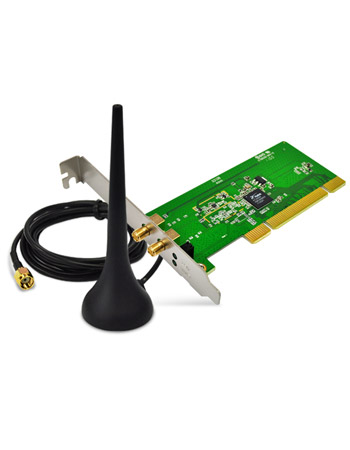

    Antenna  2 *2dBi Detachable Antennas
    LED Indicators  1 *LINK, 1 *ACT

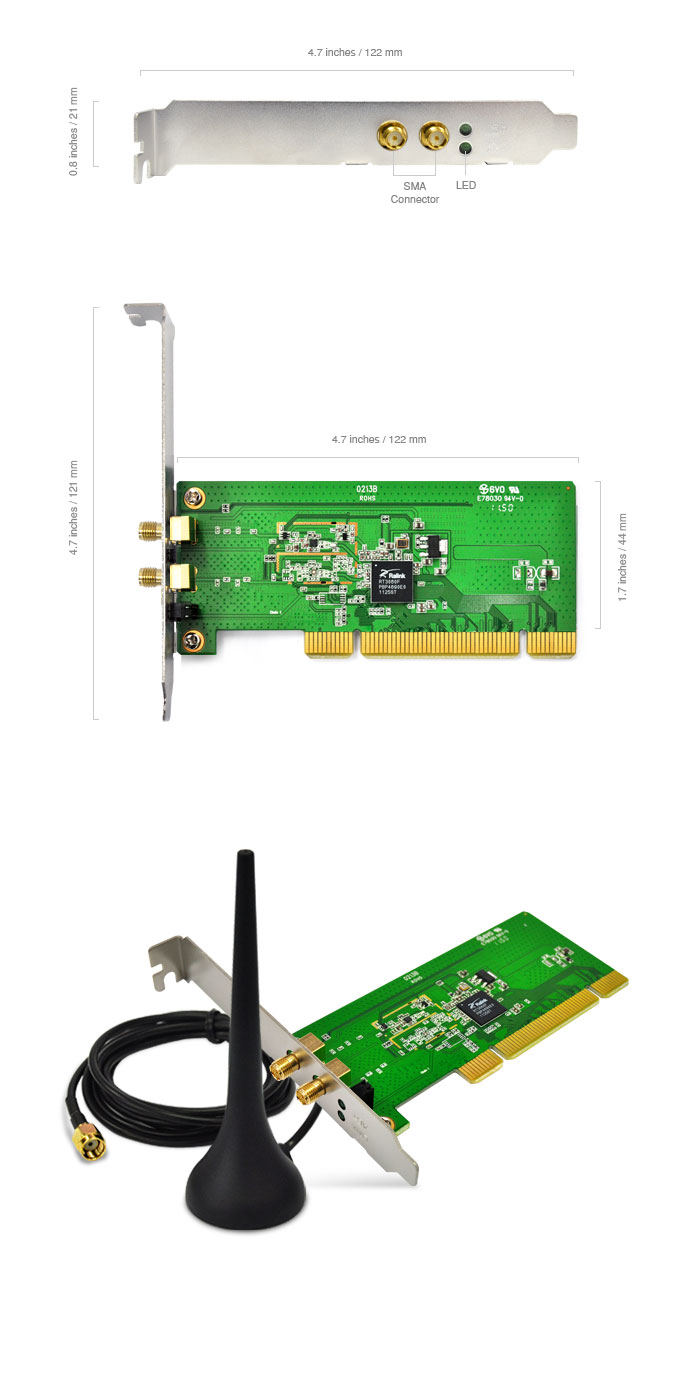

    Dimensions   4.7 x 2.0 x 0.1 in. (119.7 x 52 x 1.6mm)
    Standards  IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
    RF Frequency  2.4~2.4835GHz
    Data Rate  802.11n: Up to 300Mbps
      802.11g: Up to 54Mbps (dynamic)
      802.11b: Up to11Mbps (dynamic)
    Wireless Security  64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
    EIRP  < 20dBm
    Reception Sensitivity  270M: -61 dBm@10% PER
      135M: -65 dBm@10% PER
      54M: -68 dBm@10% PER
      11M: -85 dBm@8% PER
      6M: -88 dBm@10% PER
      1M: -90 dBm@8% PER
    Package Contents  N300PC Wireless Adapter *1
      2dBi antenna *2
      Resource CD *1
      Low Profile Bracket *1
      Quick Installation Guide *1
    System Requirement  Windows 10 (32/64bits), Windows 8 (32/64bits), Windows 7 (32/64bits), Windows XP (32/64bits)
    Environment  Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
      Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~90% non-condensing

    All content on this website is only applicable to models selling in overseas markets (outside China mainland, Taiwan and South Korea), any model purchased from China mainland, Taiwan or South Korea caused damage by upgrading software on this website is excluded in after-sales service range.


    Model Download Version Updated
    Linux TOTOLINK_N300PC_linux_driver.rar   2017-12-01
    WinXP/Vista/7/8 N300PC Win_A1403A1.zip A1403A1 2014-04-16
    Linux N300PC Linux_V2.4.1.1.zip 2014-04-16


    Model Download Version Updated
    N300PC N300PC_datasheet_v2.0.pdf Ver2.0 2015-12-26

    Quick Install Guide

    Model Download Version Updated
    N300PC N300PC QIG Ver2.0.pdf ver2.0 2016-07-21


    Model Download Version Updated
    N300PC N300PC_Photo003.jpg Resolution 600x600 2014-03-19
    N300PC N300PC_Photo002.jpg Resolution 600x600 2014-03-19
    N300PC N300PC_Photo001.jpg Resolution 600x600 2014-03-19
